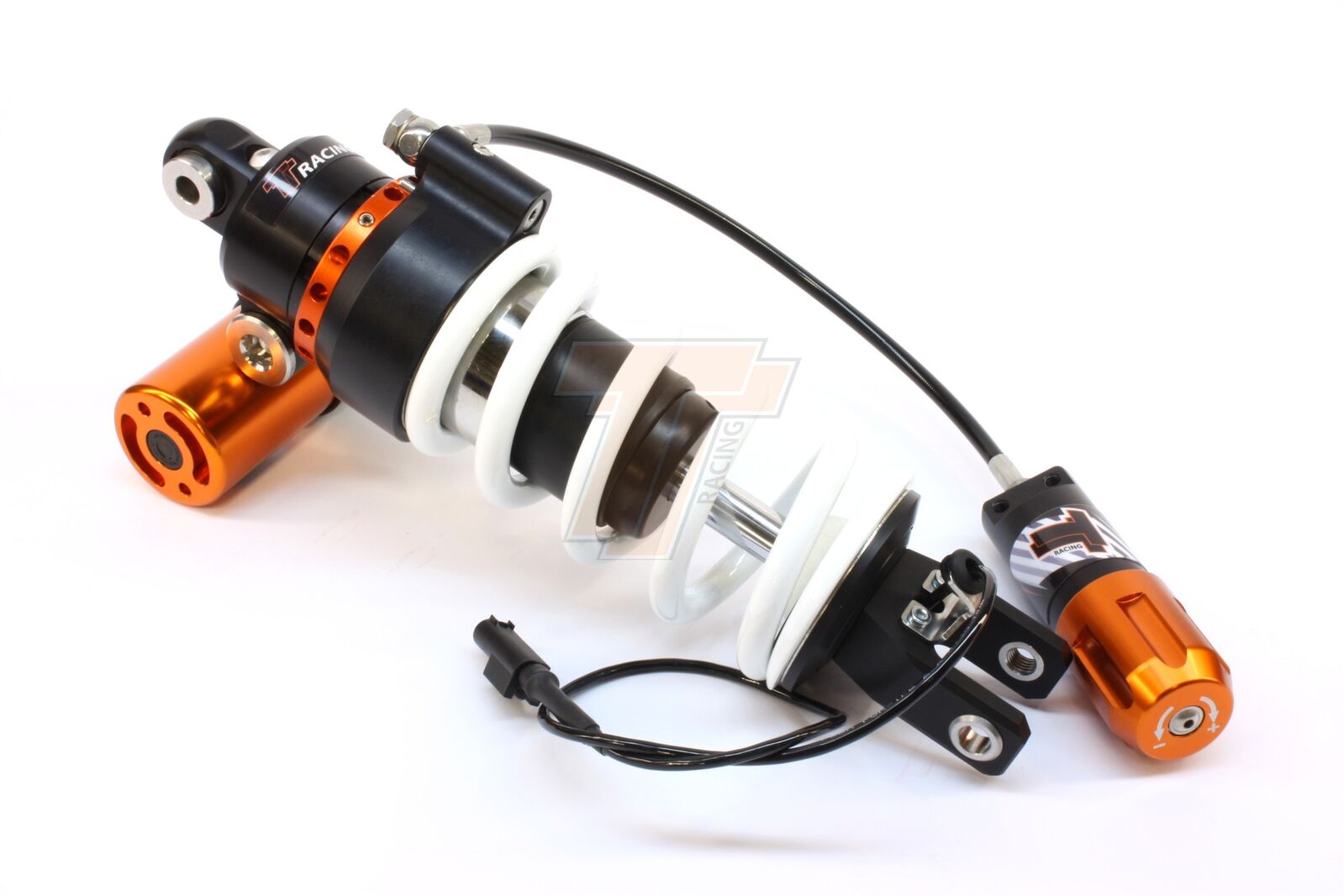

The Tractive eX-TREME Shock for the BMW M 1000 XR is a closed, pressurised shock built around an oil/gas-separated design to maintain consistent damping. This architecture helps reduce aeration and fade during sustained, demanding use. It is supplied as a spring-equipped unit with a fixed, external reservoir.

Design & features

  • Closed, pressurised shock design for stable damping behaviour
  • Oil/gas separation via an internal separation piston
  • Fixed external reservoir configuration
  • Supplied with a spring

Tuning Controls

  • Dual adjustment: rebound damping and compression damping

Base Setup (factory preset)

Delivered with a factory baseline tune intended to provide a balanced starting point. Final setup will depend on rider weight, load, tyres, and typical road conditions.

Before You Install

  • Confirm fitment for your exact BMW M 1000 XR variant and year before installation.
  • Check access to the adjusters once fitted so changes can be made without removing bodywork.
  • If changing spring rate or ride setup, allow time to re-check sag and overall chassis balance.

Serviceability/Lifecycle

As a pressurised, oil/gas-separated shock with a reservoir, this unit is designed to be serviced to maintain performance over time. Service intervals and procedures should be followed based on use conditions and kilometres.

Is It Right For You?

This shock suits riders who want external compression and rebound adjustability and the consistency benefits of a pressurised, separated-gas design. If you prefer a simpler, non-adjustable option, this configuration may offer more tuning range than you need.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM24-P8550-TR
Model # 46BM24-P8550-TR
Barcode # 46BM24P8550TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type eX-TREME
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 388.0
Spring Rate Standard 180 N/mm
Type Code eX-TREME
Stroke Metal to Metal (mm) 54
Fitted Spring 180-180
