eX-PERIENCE Shock Series

These performance piggyback shocks upgrade the basic X-Cite shock absorber range with full damping adjuster options. Designed as a jack of all trades, they suit daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring while retaining OEM features and diagnostics.

Versatile, plug-and-play replacement for ESA and standard dampers

Direct plug & play replacement for stock ESA assemblies; bolts to factory mounts and plugs into the OEM electrical wiring loom
Separate precision high & low speed compression adjusters plus increased rebound adjustability
High flow 46mm main valving piston on a 16mm chrome-moly shaft with heavy duty stainless steel bushes for durability
Cold-forged 6082 aluminium shock body and external reservoir; fully rebuildable for servicing & tuning

Recommended Pairings

Consider matching your eX-PERIENCE shocks with Suspension Tools and book workshop support via our servicing & tuning.

Shop eX-PERIENCE Shock Series

Browse the range to find spring rates and damping options suited to your bike and riding style.

38 Products Found

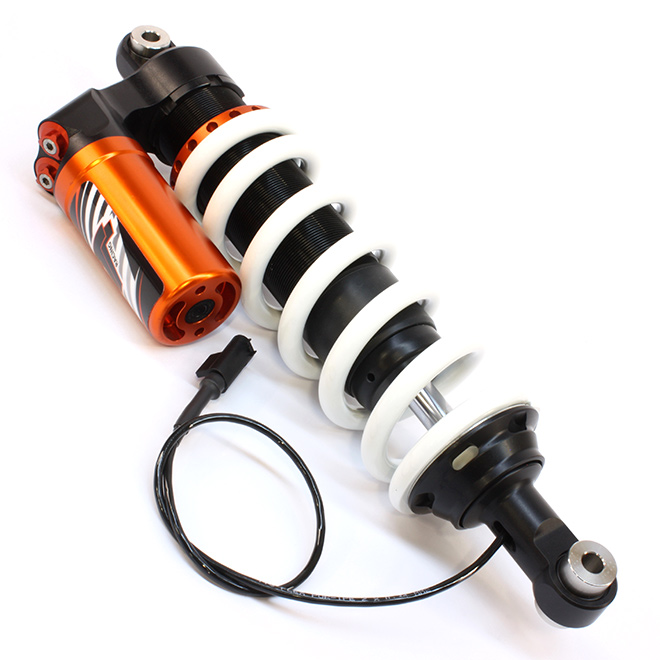

Tractive eX-PERIENCE Shock BMW R 1200 GS

Front | Lowered -25mm
(SKU: 46BM13-P4118-TR)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Lowered -25

Shock Length Eye to Eye (mm): 381.0

Spring Rate Standard: 50 N/mm

Spring Option +1: 55-205

Spring Option -1: 48-205

Spring Option +2: 60-205

Manufacturer Note 1: Side and/or center stand might be too long

Damping System: Separated oil/gas with reservoir

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 9

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 50-205

Stroke Metal to Metal (mm): 86.0

Type Code: eX-PERIENCE

$2,360.60
2 In Stock

See Options

Tractive eX-PERIENCE Shock BMW R 1200 GS Discontinued Final stock

Rear | Lowered -25mm | EPA
(SKU: 46BM13-P4717-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -25

Shock Length Eye to Eye (mm): 394.0

Spring Rate Standard: 150 N/mm

Type Code: eX-PERIENCE

Stroke Metal to Metal (mm): 74.0

Fitted Spring: 150-205

$3,995.00
5 In Stock

See Options

Tractive eX-PERIENCE Shock BMW R 1200 GS Discontinued Final stock

Rear | Standard Height | EPA
(SKU: 46BM13-P4729-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Standard Height

Shock Length Eye to Eye (mm): 402.0

Spring Rate Standard: 150 N/mm

Type Code: eX-PERIENCE

Stroke Metal to Metal (mm): 82.0

Fitted Spring: 150-205

$3,995.00
4 In Stock

See Options

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Front | Standard Height
(SKU: 46BM14-P4147-TR)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Standard Height

Shock Length Eye to Eye (mm): 398.0

Spring Rate Standard: 55 N/mm

Spring Option -2: 48-205

Spring Option +1: 60-205

Spring Option -1: 50-205

Spring Option +2: 65-205

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 13

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 55-205

Stroke Metal to Metal (mm): 99.0

Type Code: eX-PERIENCE

$2,360.60
3 In Stock

See Options

Tractive eX-PERIENCE Shock BMW F 850 GS Adventure

Rear | Standard Height | EPA
(SKU: 46BM19-P4703-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Standard Height

Shock Length Eye to Eye (mm): 395.0

Spring Rate Standard: 150 N/mm

Spring Option -2: 130-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (180 deg)

Low-speed Compression Adjuster Position: 10

High-speed Compression Adjuster Position: 10

Spring Preload Setting: 14 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 86.0

Type Code: eX-PERIENCE

$3,634.40
2 In Stock

See Options

Tractive eX-PERIENCE Shock BMW F 900 GS Adventure

Rear | Standard Height | EPA
(SKU: 46BM19-P4703-TR-01)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Standard Height

Shock Length Eye to Eye (mm): 395.0

Spring Rate Standard: 150 N/mm

Spring Option -2: 130-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (180 deg)

Low-speed Compression Adjuster Position: 10

High-speed Compression Adjuster Position: 10

Spring Preload Setting: 14 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 86

Type Code: eX-PERIENCE

$3,634.40
2 In Stock

See Options

Tractive eX-PERIENCE Shock BMW R 1200 GS

Front | Standard Height
(SKU: 46BM13-P4140-TR)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Standard Height

Shock Length Eye to Eye (mm): 389.0

Spring Rate Standard: 50 N/mm

Spring Option +1: 55-205

Spring Option -1: 48-205

Spring Option +2: 60-205

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (180 deg)

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 9

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 50-205

Stroke Metal to Metal (mm): 95.0

Type Code: eX-PERIENCE

$2,360.60
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1200 GS

Front | Lowered -50mm
(SKU: 46BM13-P4142-TR)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Lowered -50

Shock Length Eye to Eye (mm): 372.0

Spring Rate Standard: 50 N/mm

Spring Option +1: 55-205

Spring Option -1: 48-205

Spring Option +2: 60-205

Manufacturer Note 1: Side and/or center stand might be too long

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (180 deg)

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 9

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 50-205

Stroke Metal to Metal (mm): 79.0

Type Code: eX-PERIENCE

$2,360.60
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Lowered -25mm | EPA
(SKU: 46BM13-P4817-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -25

Shock Length Eye to Eye (mm): 394.0

Spring Rate Standard: 150 N/mm

Manufacturer Note 2: Side and/or center stand might be too long

Spring Option -2: 130-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 10 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 75

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Standard Height | EPA
(SKU: 46BM13-P4829-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Standard Height

Shock Length Eye to Eye (mm): 402.0

Spring Rate Standard: 150 N/mm

Spring Option -2: 130-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 12

High-speed Compression Adjuster Position: 12

Spring Preload Setting: 10 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 83

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Lowered -50mm | EPA
(SKU: 46BM13-P4841-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -50

Shock Length Eye to Eye (mm): 386.0

Spring Rate Standard: 150 N/mm

Manufacturer Note 2: Side and/or center stand might be too long

Spring Option -2: 130-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 12

High-speed Compression Adjuster Position: 12

Spring Preload Setting: 15 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 67

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Front | Lowered -40mm
(SKU: 46BM14-P4150-TR)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic and Manual

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Lowered -40

Shock Length Eye to Eye (mm): 384.0

Spring Rate Standard: 55 N/mm

Spring Option -2: 48-205

Spring Option +1: 60-205

Spring Option -1: 50-205

Spring Option +2: 65-205

Manufacturer Note 1: Side and/or center stand might be too long

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 14

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 55-205

Stroke Metal to Metal (mm): 90.0

Type Code: eX-PERIENCE

$2,360.60
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Rear | Standard Height | EPA
(SKU: 46BM14-P4846-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Standard Height

Shock Length Eye to Eye (mm): 410.0

Spring Rate Standard: 160 N/mm

Spring Option -2: 140-205

Spring Option +1: 170-205

Spring Option -1: 150-205

Spring Option +2: 180-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 12

High-speed Compression Adjuster Position: 12

Spring Preload Setting: 10 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 160-205

Stroke Metal to Metal (mm): 91

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Sport Chassis | EPA
(SKU: 46BM14-P4846-TR-01)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Sport Chassis

Shock Length Eye to Eye (mm): 410.0

Spring Rate Standard: 150 N/mm

Spring Option -2: 130-205

Spring Option Maximum: 180-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 12

High-speed Compression Adjuster Position: 12

Spring Preload Setting: 10 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 91

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Rear | Lowered -40mm | EPA
(SKU: 46BM14-P4849-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -40

Shock Length Eye to Eye (mm): 397.0

Spring Rate Standard: 160 N/mm

Manufacturer Note 2: Side and/or center stand might be too long

Spring Option -2: 140-205

Spring Option +1: 170-205

Spring Option -1: 150-205

Spring Option +2: 180-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 10 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 160-205

Stroke Metal to Metal (mm): 78

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1250 GS

Front | Factory lowered
(SKU: 46BM18-P4118-TR)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Factory Lowered -25

Seat Height Change (mm): Factory Lowered

Shock Length Eye to Eye (mm): 381.0

Spring Rate Standard: 50 N/mm

Spring Option +1: 55-205

Spring Option -1: 48-205

Spring Option +2: 60-205

Manufacturer Note 1: Side and/or center stand might be too long

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 10

High-speed Compression Adjuster Position: 10

Spring Preload Setting: 10

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 50-205

Stroke Metal to Metal (mm): 92.0

Type Code: eX-PERIENCE

$2,543.20
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1250 GS Adventure

Front | Lowered -50mm
(SKU: 46BM18-P4118-TR-01)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Lowered -50

Shock Length Eye to Eye (mm): 381.0

Spring Rate Standard: 55 N/mm

Spring Option -2: 48-205

Spring Option +1: 60-205

Spring Option -1: 50-205

Spring Option +2: 65-205

Manufacturer Note 1: Side and/or center stand might be too long

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 10

High-speed Compression Adjuster Position: 10

Spring Preload Setting: 10

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 55-205

Stroke Metal to Metal (mm): 92.0

Type Code: eX-PERIENCE

$2,543.20
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1250 GS

Front | Standard Height
(SKU: 46BM18-P4140-TR)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Standard Height

Shock Length Eye to Eye (mm): 389.0

Spring Rate Standard: 50 N/mm

Spring Option +1: 55-205

Spring Option -1: 48-205

Spring Option +2: 60-205

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 10

High-speed Compression Adjuster Position: 10

Spring Preload Setting: 10

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 50-205

Stroke Metal to Metal (mm): 100.0

Type Code: eX-PERIENCE

$2,543.20
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1250 GS Adventure

Front | Lowered -25mm
(SKU: 46BM18-P4140-TR-01)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Lowered -25

Shock Length Eye to Eye (mm): 389.0

Spring Rate Standard: 55 N/mm

Spring Option -2: 48-205

Spring Option +1: 60-205

Spring Option -1: 50-205

Spring Option +2: 65-205

Manufacturer Note 1: Side and/or center stand might be too long

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 10

High-speed Compression Adjuster Position: 10

Spring Preload Setting: 10

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 55-205

Stroke Metal to Metal (mm): 100.0

Type Code: eX-PERIENCE

$2,543.20
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1250 GS

Front | Lowered -50mm
(SKU: 46BM18-P4142-TR)

Position (Front or Rear): Front

Damping Adjustment Type: Electronic & Compression High + Low Speed

Seat Height Change (mm): Lowered -50

Shock Length Eye to Eye (mm): 372.0

Spring Rate Standard: 55 N/mm

Spring Option +1: 60-180

Spring Option -1: 50-180

Spring Option +2: 65-180

Manufacturer Note 1: Side and/or center stand might be too long

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 10

High-speed Compression Adjuster Position: 10

Spring Preload Setting: 10

Preload Adjustment: Mechanical

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 55-180

Stroke Metal to Metal (mm): 83.0

Type Code: eX-PERIENCE

$2,543.20
Custom Order

Order Now

eX-PERIENCE Shock Series

Versatile, plug-and-play replacement for ESA and standard dampers

Direct plug & play replacement for stock ESA assemblies; bolts to factory mounts and plugs into the OEM electrical wiring loom
Separate precision high & low speed compression adjusters plus increased rebound adjustability
High flow 46mm main valving piston on a 16mm chrome-moly shaft with heavy duty stainless steel bushes for durability
Cold-forged 6082 aluminium shock body and external reservoir; fully rebuildable for servicing & tuning

Recommended Pairings

Consider matching your eX-PERIENCE shocks with Suspension Tools and book workshop support via our servicing & tuning.

Shop eX-PERIENCE Shock Series

Browse the range to find spring rates and damping options suited to your bike and riding style.

eX-Perience Electronic Shock Absorbers

eX-PERIENCE Shock Series

Versatile, plug-and-play replacement for ESA and standard dampers

Recommended Pairings

Shop eX-PERIENCE Shock Series

eX-PERIENCE Shock Series

Versatile, plug-and-play replacement for ESA and standard dampers

Recommended Pairings

Shop eX-PERIENCE Shock Series

Subscribe to our Newsletter

Terms & Conditions

Privacy Policy

1. WHAT WE COLLECT

2. WHAT WE DO WITH THE INFORMATION WE GATHER

3. SECURITY

4. HOW WE USE COOKIES

5. CONTROLLING YOUR PERSONAL INFORMATION
