Teknik eX-CELLENT Shock Series

eX-CELLENT Shock Series

Premium piggyback shock absorbers developed for tarmac-tearing S1000RR performance and adapted for BMW sport and touring derivatives. These road and race shocks deliver improved response, traction and long-term serviceability.

Road and race replacement for BMW ESA models

  • Premium piggyback shocks originally for the S1000RR, modified to suit other BMW sport and touring bikes
  • Direct plug & play replacement for the stock ESA electronically controlled damper assembly — bolts to factory mounts and plugs into the OEM wiring loom
  • Separate precise high & low speed compression adjusters plus increased rebound range for fine tuning traction and response
  • Available with multiple spring rates, high flow 46mm main valving piston, 16mm chrome-moly shaft, heavy duty stainless bushes and fully rebuildable cold-forged 6082 aluminium body with external reservoir for easy servicing & tuning

Recommended Pairings

Consider matching these shocks with Suspension Tools for setup and trackside adjustments.

Shop eX-CELLENT Shock Series

Browse our eX-CELLENT range for model-specific BMW shock kits, spring options and service parts.

12 Products Found

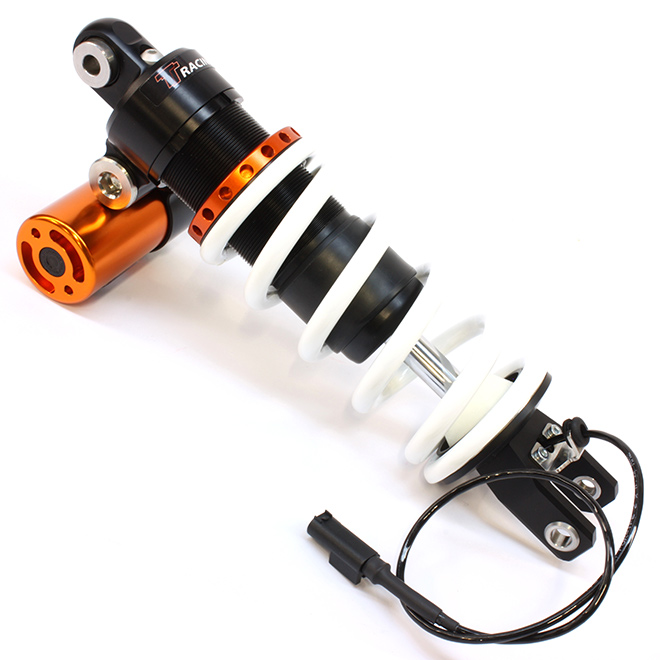

Tractive eX-TREME Shock BMW S 1000 R
Tractive eX-TREME Shock BMW S 1000 R

Tractive eX-TREME Shock BMW S 1000 R

Rear | Standard Height
(SKU: 46BM14-P8170-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   335.0
Spring Rate Standard:   75 N/mm
Spring Option -2:   65-205
Spring Option +1:   80-205
Spring Option -1:   70-205
Spring Option +2:   85-205
Damping System:   Separated oil/gas with reservoir
Low-speed Compression Adjuster Position:   14
High-speed Compression Adjuster Position:   14
Spring Preload Setting:   12
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   75-205
Stroke Metal to Metal (mm):   66.0
Type Code:   eX-TREME

$2,906.20
Custom Order
Order Now
Tractive eX-TREME Shock BMW S 1000 R
Tractive eX-TREME Shock BMW S 1000 R

Tractive eX-TREME Shock BMW S 1000 R

Rear | Standard Height
(SKU: 46BM14-P8570-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Hydraulic with knob
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   335.0
Spring Rate Standard:   75 N/mm
Spring Option -2:   65-160
Spring Option +1:   80-160
Spring Option -1:   70-160
Spring Option +2:   85-160
Damping System:   Separated oil/gas with reservoir
Low-speed Compression Adjuster Position:   14
High-speed Compression Adjuster Position:   14
Spring Preload Setting:   10
Preload Adjustment:   Hydraulic, with knob
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   75-160
Stroke Metal to Metal (mm):   66.0
Type Code:   eX-TREME

$3,634.40
Custom Order
Order Now
Tractive eX-TREME Shock BMW S 1000 RR
Tractive eX-TREME Shock BMW S 1000 RR

Tractive eX-TREME Shock BMW S 1000 RR

Rear | Standard Height
(SKU: 46BM15-P8176-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   352.0
Spring Rate Standard:   95 N/mm
Spring Option -2:   85-160
Spring Option Maximum:   150-160
Spring Option +1:   100-160
Spring Option -1:   90-160
Spring Option +2:   110-160
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   14
High-speed Compression Adjuster Position:   14
Spring Preload Setting:   11
Preload Adjustment:   Mechanical
Spring Type:   Linear + top out, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   95-160
Stroke Metal to Metal (mm):   68.0
Type Code:   eX-TREME

$2,906.20
Custom Order
Order Now
Tractive eX-TREME Shock BMW S 1000 XR
Tractive eX-TREME Shock BMW S 1000 XR

Tractive eX-TREME Shock BMW S 1000 XR

Rear | Standard Height | EPA
(SKU: 46BM15-P8777-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   352.0
Spring Rate Standard:   120 N/mm
Spring Option -2:   100-180
Spring Option +1:   130-180
Spring Option -1:   110-180
Spring Option +2:   140-180
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   17*
Preload Adjustment:   Electro-hydraulic
Spring Type:   Linear + top out, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   120-180
Stroke Metal to Metal (mm):   63.0
Type Code:   eX-TREME

$4,360.40
Custom Order
Order Now
Tractive eX-TREME Shock BMW S 1000 XR
Tractive eX-TREME Shock BMW S 1000 XR

Tractive eX-TREME Shock BMW S 1000 XR

Rear | Factory lowered | EPA
(SKU: 46BM15-P8792-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Factory Lowered
Shock Length Eye to Eye (mm):   339.0
Spring Rate Standard:   120 N/mm
Spring Option -2:   105-160
Spring Option +1:   130-160
Spring Option -1:   110-160
Spring Option +2:   140-160
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   17*
Preload Adjustment:   Electro-hydraulic
Spring Type:   Linear + top out, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   120-160
Stroke Metal to Metal (mm):   50.0
Type Code:   eX-TREME

$4,360.40
Custom Order
Order Now
Tractive eX-TREME Shock BMW S 1000 RR
Tractive eX-TREME Shock BMW S 1000 RR

Tractive eX-TREME Shock BMW S 1000 RR

Rear | Standard Height
(SKU: 46BM20-P4513-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Hydraulic with knob
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   370.0
Shock Length Eye to Eye (mm):   369
Spring Rate Standard:   60 N/mm
Spring Option -2:   55-205
Spring Option +1:   62.5-205
Spring Option -1:   57.5-205
Spring Option +2:   65-205
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   12
High-speed Compression Adjuster Position:   12
Spring Preload Setting:   5 +13/-2
Preload Adjustment:   Hydraulic, with knob
Spring Type:   Linear + top out, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   60-205
Stroke Metal to Metal (mm):   81.0
Stroke Metal to Metal (mm):   77.5
Type Code:   eX-TREME

$3,269.20
Custom Order
Order Now
Tractive eX-TREME Shock BMW S 1000 R
Tractive eX-TREME Shock BMW S 1000 R

Tractive eX-TREME Shock BMW S 1000 R

Rear | Standard Height
(SKU: 46BM20-P4535-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Hydraulic with knob
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   370.0
Shock Length Eye to Eye (mm):   369
Spring Rate Standard:   57.5 N/mm
Spring Option -2:   50-205
Spring Option Maximum:   70-205
Spring Option +1:   60-205
Spring Option -1:   55-205
Spring Option +2:   62.5-205
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   12
High-speed Compression Adjuster Position:   12
Spring Preload Setting:   5 +13/-2
Preload Adjustment:   Hydraulic, with knob
Spring Type:   Linear + top out, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   57.5-205
Stroke Metal to Metal (mm):   81.0
Stroke Metal to Metal (mm):   78
Type Code:   eX-TREME

$3,269.20
Custom Order
Order Now
Tractive eX-TREME Shock BMW M 1000 R
Tractive eX-TREME Shock BMW M 1000 R

Tractive eX-TREME Shock BMW M 1000 R

Rear | Standard Height
(SKU: 46BM20-P4535-TR-01)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Hydraulic with knob
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   370.0
Shock Length Eye to Eye (mm):   370.5
Spring Rate Standard:   57.5 N/mm
Spring Option -2:   50-205
Spring Option Maximum:   70-205
Spring Option +1:   60-205
Spring Option -1:   55-205
Spring Option +2:   62.5-205
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   12
High-speed Compression Adjuster Position:   12
Spring Preload Setting:   5 +13/-2
Preload Adjustment:   Hydraulic, with knob
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   57.5-205
Stroke Metal to Metal (mm):   81.0
Stroke Metal to Metal (mm):   77.5
Type Code:   eX-TREME

$3,269.20
Custom Order
Order Now
Tractive eX-TREME Shock BMW S 1000 R
Tractive eX-TREME Shock BMW S 1000 R

Tractive eX-TREME Shock BMW S 1000 R

Rear | Lowered -20mm
(SKU: 46BM20-P4536-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Hydraulic with knob
Seat Height Change (mm):   Lowered -20
Shock Length Eye to Eye (mm):   357.5
Spring Rate Standard:   60 N/mm
Spring Option -2:   50-180
Spring Option Maximum:   70-180
Spring Option +1:   65-180
Spring Option -1:   55-180
Spring Option +2:   70-180
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   12
High-speed Compression Adjuster Position:   12
Spring Preload Setting:   9 +13/-2
Preload Adjustment:   Hydraulic, with knob
Spring Type:   Linear + top out, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   60-180
Stroke Metal to Metal (mm):   64.5
Type Code:   eX-TREME

$3,269.20
Custom Order
Order Now
Tractive eX-TREME Shock BMW M 1000 R
Tractive eX-TREME Shock BMW M 1000 R

Tractive eX-TREME Shock BMW M 1000 R

Rear | Lowered -20mm
(SKU: 46BM20-P4536-TR-01)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Hydraulic with knob
Seat Height Change (mm):   Lowered -20
Shock Length Eye to Eye (mm):   357.5
Length Change (mm):   Lowered -20mm
Spring Rate Standard:   60 N/mm
Spring Option -2:   50-180
Spring Option Maximum:   70-180
Spring Option +1:   65-180
Spring Option -1:   55-180
Spring Option +2:   70-180
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   12
High-speed Compression Adjuster Position:   12
Spring Preload Setting:   9 +13/-2
Preload Adjustment:   Hydraulic, with knob
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   60-180
Stroke Metal to Metal (mm):   64.5
Type Code:   eX-TREME

$3,269.20
Custom Order
Order Now
Tractive eX-TREME Shock BMW M 1000 XR
Tractive eX-TREME Shock BMW M 1000 XR

Tractive eX-TREME Shock BMW M 1000 XR

Rear | Standard Height
(SKU: 46BM24-P8550-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Hydraulic with knob
Seat Height Change (mm):   Standard Height
Shock Length Eye to Eye (mm):   388.0
Spring Rate Standard:   180 N/mm
Spring Option -2:   160-180
Spring Option +1:   190-180
Spring Option -1:   170-180
Spring Option +2:   200-180
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   9 +12/-3
Preload Adjustment:   Hydraulic, with knob
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   180-180
Stroke Metal to Metal (mm):   54
Type Code:   eX-TREME

$3,634.40
Custom Order
Order Now
Tractive eX-TREME Shock BMW M 1000 XR
Tractive eX-TREME Shock BMW M 1000 XR

Tractive eX-TREME Shock BMW M 1000 XR

Rear | Lowered -30mm
(SKU: 46BM24-P8570-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Hydraulic with knob
Seat Height Change (mm):   Lowered -30
Shock Length Eye to Eye (mm):   378.0
Spring Rate Standard:   180 N/mm
Spring Option -2:   160-180
Spring Option +1:   190-180
Spring Option -1:   170-180
Spring Option +2:   200-180
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   11 +12/-3
Preload Adjustment:   Hydraulic, with knob
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   180-180
Stroke Metal to Metal (mm):   44
Type Code:   eX-TREME

$3,634.40
Custom Order
Order Now

eX-CELLENT Shock Series

Premium piggyback shock absorbers developed for tarmac-tearing S1000RR performance and adapted for BMW sport and touring derivatives. These road and race shocks deliver improved response, traction and long-term serviceability.

Road and race replacement for BMW ESA models

  • Premium piggyback shocks originally for the S1000RR, modified to suit other BMW sport and touring bikes
  • Direct plug & play replacement for the stock ESA electronically controlled damper assembly — bolts to factory mounts and plugs into the OEM wiring loom
  • Separate precise high & low speed compression adjusters plus increased rebound range for fine tuning traction and response
  • Available with multiple spring rates, high flow 46mm main valving piston, 16mm chrome-moly shaft, heavy duty stainless bushes and fully rebuildable cold-forged 6082 aluminium body with external reservoir for easy servicing & tuning

Recommended Pairings

Consider matching these shocks with Suspension Tools for setup and trackside adjustments.

Shop eX-CELLENT Shock Series

Browse our eX-CELLENT range for model-specific BMW shock kits, spring options and service parts.
