Motorcycle Fork Tube Seal Kits

Dust Seals (also called wipers) are the only part you can see from the outside once the forks are rebuilt. They keep dirt & grit out of the suspension so it can't score up the chrome and wreck that smooth sliding. Oil Seals are the softer viton rubber rings that sit underneath, usually featuring a tiny thin spring all around the edge to help squeeze the lip onto the inside fork tube evenly. They stop the precious lubricants leaking out & leaving metal to grind on metal. They are fragile, so should be hammered home carefully during a rebuild to avoid twisting or kinking of the lips - try a fork seal driver kit.

Motorbike front forks need regular servicing to replace worn parts - these combined seal & wiper kits from factory suspension brands KYB & Showa, performance parts from SKF & Teknik fit between upper & lower fork casing tubes, protecting everything inside - especially the teflon coated bushings.

Read more...
Teknik Seal & Wiper Sets

Diagram Guide for Seal & Wiper Sets

d Fork Tube Diameter
D Fork seal Outside
H Fork Seal Height
D1 Dust Wiper Outside
H2 Dust Wiper Height
Diagram for Seal & Wiper Sets
84 Products Found
Teknik Motorsport

Fork Seal & Wiper Set 43 x 57 x 11

43mm id x 57mm od x 11mm tall
(SKU: 24-808-00)
Seal Outer Ø D (mm):   57.00
Seal Height H (mm):   11.0
Seal Wiper Outside Ø D1 (mm):   57.0
Seal Wiper Height H1 (mm):   8.0
Fork Inner Tube Ø d (mm):   43.0
$55.00
6 In Stock




















Diagram Guide for Seal & Wiper Sets

d Fork Tube Diameter
D Fork seal Outside
H Fork Seal Height
D1 Dust Wiper Outside
H2 Dust Wiper Height
Diagram for Seal & Wiper Sets

Dust Seals (also called wipers) are the only part you can see from the outside once the forks are rebuilt. They keep dirt & grit out of the suspension so it can't score up the chrome and wreck that smooth sliding. Oil Seals are the softer viton rubber rings that sit underneath, usually featuring a tiny thin spring all around the edge to help squeeze the lip onto the inside fork tube evenly. They stop the precious lubricants leaking out & leaving metal to grind on metal. They are fragile, so should be hammered home carefully during a rebuild to avoid twisting or kinking of the lips - try a fork seal driver kit.

Motorbike front forks need regular servicing to replace worn parts - these combined seal & wiper kits from factory suspension brands KYB & Showa, performance parts from SKF & Teknik fit between upper & lower fork casing tubes, protecting everything inside - especially the teflon coated bushings.

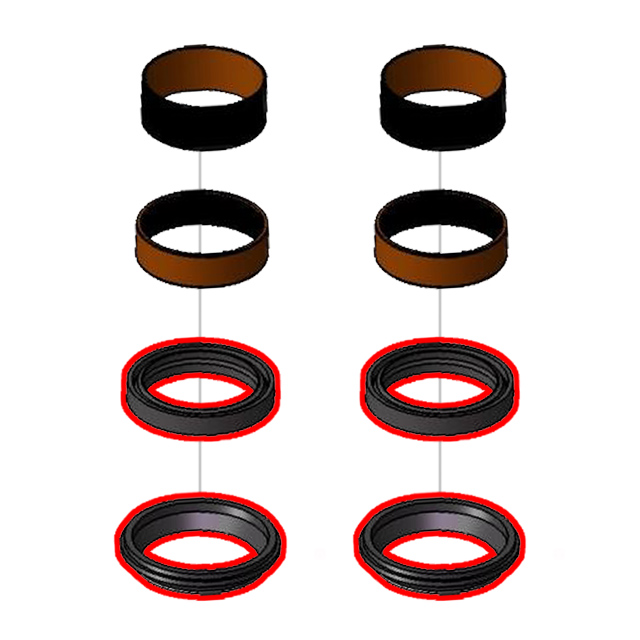

If you're a competent DIY garage tuner, check out our complete fork rebuild kits where you get a full set of seals, wipers, inner & outer ring bushes, along with some assembly grease - but if you're not up to it, Teknik Motorsport also offers a 3 month warranty on the fork seals we install at our workshop.

We recommend looking at our Fork Performance Parts section to find mud scrapers & tube protection covers if you regularly spend time offroad - but the best & cheapest thing you can do for your bike's suspension? Pressure wash it properly when you get home from riding! If the grit & dirt can't cake & dry on there to begin with, those seals don't get ripped up, that chrome doesn't pit, so none of it needs to be rebuilt as often.
