Motorcycle Fork Cartridge Rod Oil Seals

Teknik Cartridge Rod Seals

Cartridge Rod Seals

An internal damping cartridge cylinder sits in the middle of the outer case tubes inside most oil filled motorbike front forks. The suspension fluid can either be shared with the rest of the fork leg, or can be separately sealed – read more in our Closed vs Open Chamber Forks technical article.

Sealing rebound rods and preventing oil bypass in cartridge forks

  • Flexible lipped viton shaft seals and optional back-up rings seal oil between the rebound rod and cartridge bore
  • Keep damping consistent inside internal damping cartridge cylinders for predictable rebound and compression

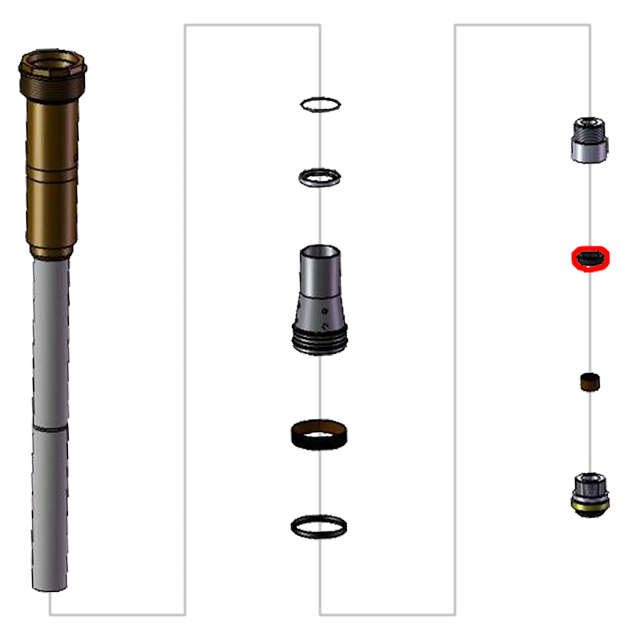

  • Seals locate into machined alloy seal case heads top and bottom
  • Replace seals when fitting aftermarket compression & rebound adjustable fork cartridges or during rebuilds

Recommended Pairings

Consider matching seals and rebuilds with specialised tools such as Suspension Tools for correct fitment and service.

Shop Cartridge Rod Seals

Browse our range of viton shaft seals, back-up rings and related cartridge seal parts to maintain reliable fork damping.

32 Products Found





WP Genuine Parts

WP Viton Cartridge Rod Seal (48600829)

12mm id x 17mm od x 3.5mm tall - Twin Chamber
(SKU: 24-703-08)
Inside Diameter d (mm):   12.0
Height H (mm):   3.5
Outside Ø D (mm):   17.0
$33.00
90 In Stock



Showa Genuine Parts

Showa Genuine Parts Packing 14/22/4.8

Showa Genuine Motorcycle Suspension Parts
(SKU: F34500001)
Inside Diameter d (mm):   14.0
Height H (mm):   4.5
Outside Ø D (mm):   22.0
$36.00
12 In Stock

Showa Genuine Parts

Showa Genuine Parts Packing 14/24.5/6

Showa Genuine Motorcycle Suspension Parts
(SKU: F34500002)
Inside Diameter d (mm):   14.0
Height H (mm):   6.0
Outside Ø D (mm):   24.0
$36.00
14 In Stock

Showa Genuine Parts

Showa Genuine Parts Packing 14/22.5/5

Showa Genuine Motorcycle Suspension Parts
(SKU: F34500003)
Inside Diameter d (mm):   14.0
Height H (mm):   5.0
Outside Ø D (mm):   22.0
$31.20
16 In Stock

Showa Genuine Parts

Showa Genuine Parts Packing

Showa Genuine Motorcycle Suspension Parts
(SKU: F34500004)
Inside Diameter d (mm):   8.0
Height H (mm):   3.5
Outside Ø D (mm):   14.0
$60.01
16 In Stock



Showa Genuine Parts

Showa Genuine Parts Packing

Showa Genuine Motorcycle Suspension Parts
(SKU: F34512501)
Inside Diameter d (mm):   12.5
Height H (mm):   5.0
Outside Ø D (mm):   22.0
$24.00
25 In Stock

Showa Genuine Parts

Showa Genuine Parts Packing 12.5

Showa Genuine Motorcycle Suspension Parts
(SKU: F34512502)
Inside Diameter d (mm):   12.5
Height H (mm):   3.5
Outside Ø D (mm):   17.5
$43.20
29 In Stock
