Genuine OEM Kayaba Motorcycle Suspension Parts: 162019000301

Kawasaki 2021-up KX250F
Kawasaki 2019-up KX450F

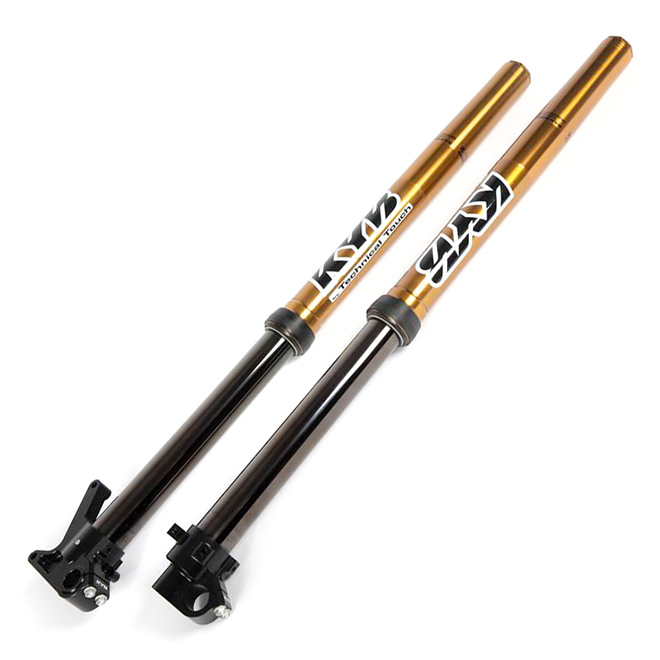

The Kayaba Factory Kit Coil Spring Fork with it's air-oil separated closed cartridge is well known in the motocross world for it's precise damping setup - personally customized by our experienced MX specialist tuners in Belgium.
With all anodized internal parts and DLC-coated inner tubes the internal friction is reduced to the absolute minimum.
By adding a mid-speed valve the fork can be adjusted over a much broader range.
A custom spring collar also supports the end of the stroke for a softer landing.

Features:

  • Air-Oil Separated Closed Cartridge
  • Dark Grey Anodized AOS Fork Top Caps
  • Kashima Coated Outer Tubes
  • Billet CNC Machined & Anodized Front Axle Brackets
  • DLC Coated Inner Tubes
  • Minimal Internal Friction
  • New Free Piston & Custom Aluminium Spring Collar
  • Wide Damping Adjustment Range

Package Contents:

  • 160754803701 - Kashima Coated Outer Fork Tube - KXF 13- / KTM 13 x 2
  • 110910000101 - Outertube Snap Ring x 2
  • 110024800101 - 48mm Front Fork Dust Seal x 2
  • 110014800601 - 48mm Front Fork Scraper Seal x 2
  • 110784800101 - 48mm Front Fork Snap Ring x 2
  • 110014800301 - 48mm Front Fork Oil Seal 1-Spring (KX450F 06-12) x 2
  • 110770000701 - 48mm Front Fork Washer next to Oil Seal Aluminium - YZ 08 x 2
    • 110770001301 - 48mm Front Fork Washer next to Oil Seal (Nylon) x 2
  • 110034800101 - 48mm Front Fork Metal Piston x 2
  • 110044800201 - 48mm Front Fork Metal Slide Bush 15mm High x 2
  • 160174803001 - DLC Inner Tube 592mm Length - KX 09- x 2
  • 110790000501 - M6 x 6 Front Fork Innertube Securing Grub Screw x 2
  • 161000000101 - Rubber under M6 Securing Screw x 2
  • 160794800501 - Front Fork Oil Lock Case Complete - KX450F 11-12 x 2
  • 110860000101 - Front Fork Spring Collar Guide Bushing - YZ 06-07 x 2
  • 110770001201 - Spring Seat for Fork Spring Collar x 2
  • 160060003001 - Front Fork Cylinder Assembly - KXF 16- / CRF 19- / KTM 16- w/TT spec x 2
  • 160060002901 - Compression Base Valve Assembly with 22 N/mm Pressure Spring x 2
  • 110830000301 - Front Fork Rebound Adjuster x 2
  • 60012024 - Right Axle Bracket - KX450F 19- / KX250F 21- x 1
  • 60012025 - Left Axle Bracket - KX450F 19- / KX250F 21- x 1
  • 60023000 - 28mm Aluminium Spring Collar x 2
  • 000.0121 - Outer Tube Plastic Protection Set - KX / KTM / Husky / RM / CRF x 1
    •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •

Warranty covers defect in material and workmanship in the KYB product. KYBs sole and exclusive obligation under this warranty is limited to the exchange/replacement of a defective KYB product in accordance with this limited warranty. There is no warranty on vehicles used in competition or used in a competition like manner.

SKU 162019000301
Brand Kayaba (KYB) Genuine Parts
Shipping Weight 14.5000kg
Shipping Size 0.400 x 0.150 x 1.200m
Unit Of Measure Each
Type KYB Factory Front Fork
Format No Format Defined
