Genuine OEM Kayaba Motorcycle Suspension Parts: 162019000501

Yamaha 2014-up YZ 250F
Yamaha 2014-up YZ 450F

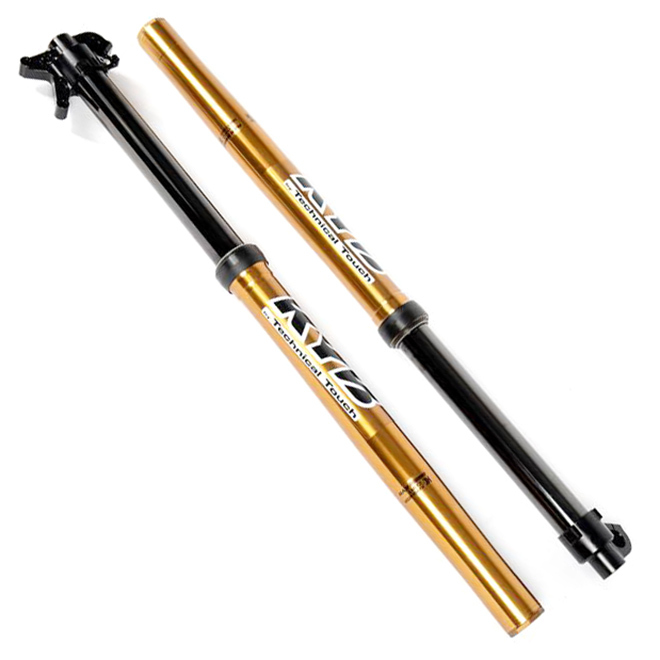

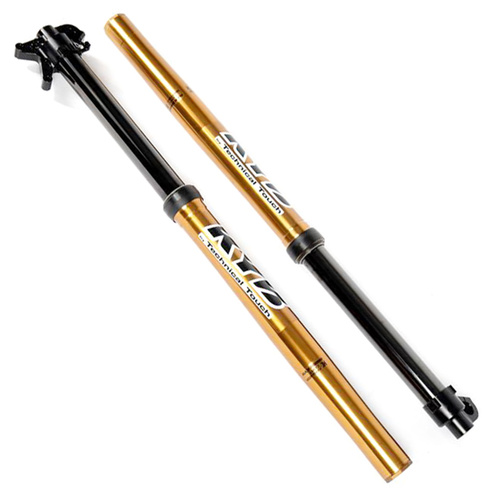

The Kayaba Factory Kit Coil Spring Fork with it's air-oil separated closed cartridge is well known in the motocross world for it's precise damping setup - personally customized by our experienced MX specialist tuners in Belgium.
With all anodized internal parts and DLC-coated inner tubes the internal friction is reduced to the absolute minimum.
By adding a mid-speed valve the fork can be adjusted over a much broader range.
A custom spring collar also supports the end of the stroke for a softer landing.

Features:

  • Air-Oil Separated Closed Cartridge
  • Dark Grey Anodized AOS Fork Top Caps
  • Kashima Coated Outer Tubes
  • Billet CNC Machined & Anodized Front Axle Brackets
  • DLC Coated Inner Tubes
  • Minimal Internal Friction
  • New Free Piston & Custom Aluminium Spring Collar
  • Wide Damping Adjustment Range

Package Contents:

  • 160754804201 - Kashima Coated Outer Fork Tube - YZ250F 12- / YZ450F 10-13 & 18 x 2
  • 110910000101 - Outertube Snap Ring x 2
  • 110024800101 - 48mm Front Fork Dust Seal x 2
  • 110014800601 - 48mm Front Fork Scraper Seal x 2
  • 110784800101 - 48mm Front Fork Snap Ring x 2
  • 110014800501 - 48mm Front Fork Oil Seal CRF 15-16 / YZ450F 18- / YZ250F 19- x 2
  • 110770000701 - 48mm Front Fork Washer next to Oil Seal Aluminium - YZ 08 x 2
  • 110034800101 - 48mm Front Fork Metal Piston x 2
  • 110044800201 - 48mm Front Fork Metal Slide Bush 15mm High x 2
  • 160174809601 - DLC Inner Tube 597mm Length - YZF 14- x 2
  • 110790000501 - M6 x 6 Front Fork Innertube Securing Grub Screw x 2
  • 161000000101 - Rubber under M6 Securing Screw x 2
  • 160174803401 - Front Fork Oil Lock Case Complete - YZ250F / YZ450F / YZ 125-250 12- x 2
  • 110790000401 - Axle Bracket Oil Lock O-Ring x 2
  • 110860000101 - Front Fork Spring Collar Guide Bushing - YZ 06-07 x 2
  • 110770001201 - Spring Seat for Fork Spring Collar x 2
  • 160060003101 - Front Fork Cylinder Assembly - YZF 16- / RMZ 16- w/TT spec x 2
  • 160060002901 - Compression Base Valve Assembly with 22 N/mm Pressure Spring x 2
  • 110830000301 - Front Fork Rebound Adjuster x 2
  • 60012008 - Right Axle Bracket - YZF 14- x 1
  • 60012027 - Left Axle Bracket - YZF 14- x 1
  • 60023000 - 28mm Aluminium Spring Collar x 2
  • 000.0379 - Outer Tube Plastic Protection Set - Yamaha (All) x 1

Warranty covers defect in material and workmanship in the KYB product. KYBs sole and exclusive obligation under this warranty is limited to the exchange/replacement of a defective KYB product in accordance with this limited warranty. There is no warranty on vehicles used in competition or used in a competition like manner.

SKU 162019000501
Brand Kayaba (KYB) Genuine Motorcycle Parts
Shipping Weight 14.5000kg
Shipping Size 0.400 x 0.150 x 1.200m
Unit Of Measure Each
Type KYB Factory Front Fork
Format No Format Defined
