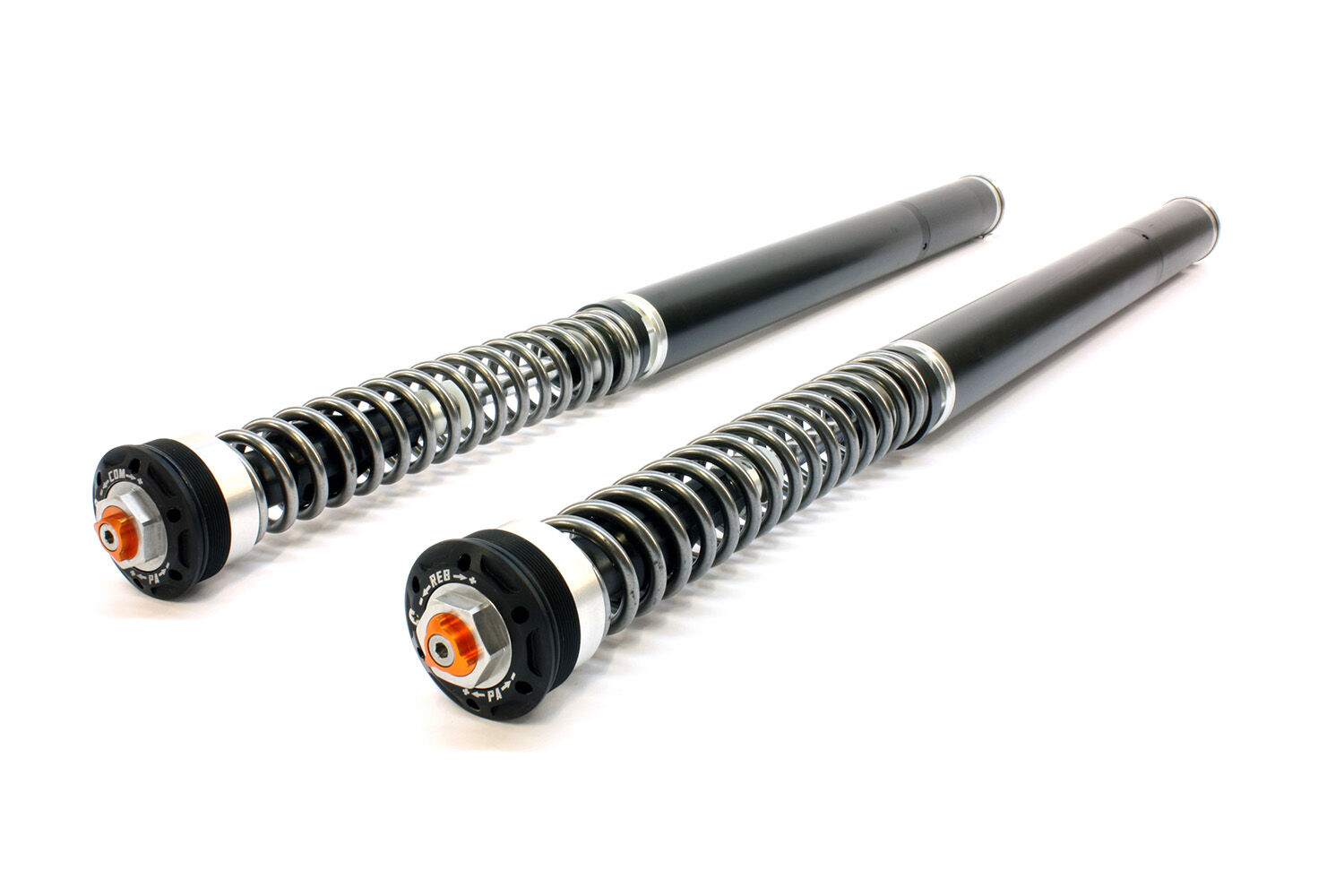

The Tractive X-TREME fork cartridge kit for the BMW F 800 GS replaces the standard fork internals with a closed, pressurised cartridge system for more consistent damping control. This kit is configured to lower the front end by approximately 45 mm, which can help reduce effective seat height while keeping the fork behaviour predictable. The sealed cartridge architecture also helps manage aeration and heat-related fade during longer or rougher rides.

Design & features

  • Closed, pressurised fork cartridge design for consistent damping behaviour.
  • Precision internal valving to manage oil flow through the damping circuit.
  • Lowered configuration designed to reduce the motorcycle’s front ride height by approximately 45 mm.

Tuning Controls

  • Rebound damping adjustment.
  • Compression damping adjustment.

Who is this for?

  • BMW F 800 GS riders wanting a lower front ride height for confidence at stops or when loaded.
  • Riders focused on improved damping consistency for touring and mixed-surface use.
  • Owners who prefer a serviceable cartridge system rather than disposable internals.

Before You Install

  • Confirm the desired ride-height change suits your overall chassis balance, as this kit lowers the front end by approximately 45 mm.
  • Installation should be carried out by a qualified technician familiar with cartridge fork assemblies.
  • After fitting, set sag and verify front-to-rear balance before making damping changes.

Serviceability/Lifecycle

  • Designed to be inspected and serviced to maintain performance over time.
  • The sealed, pressurised cartridge layout supports stable damping across extended use intervals when maintained correctly.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 35BM13-D5336-TR
Model # 35BM13-D5336-TR
Barcode # 35BM13D5336TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.900m
Unit Of Measure Set
Type X-TREME
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front
Damping Adjustment Type Rebound & Compression
Seat Height Change (mm) Lowered -45
Shock Length Eye to Eye (mm) 865.0
Spring Rate Standard 4.8 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 170.0
Notes Hydraulic end-stop
Fitted Spring 4.8-350
