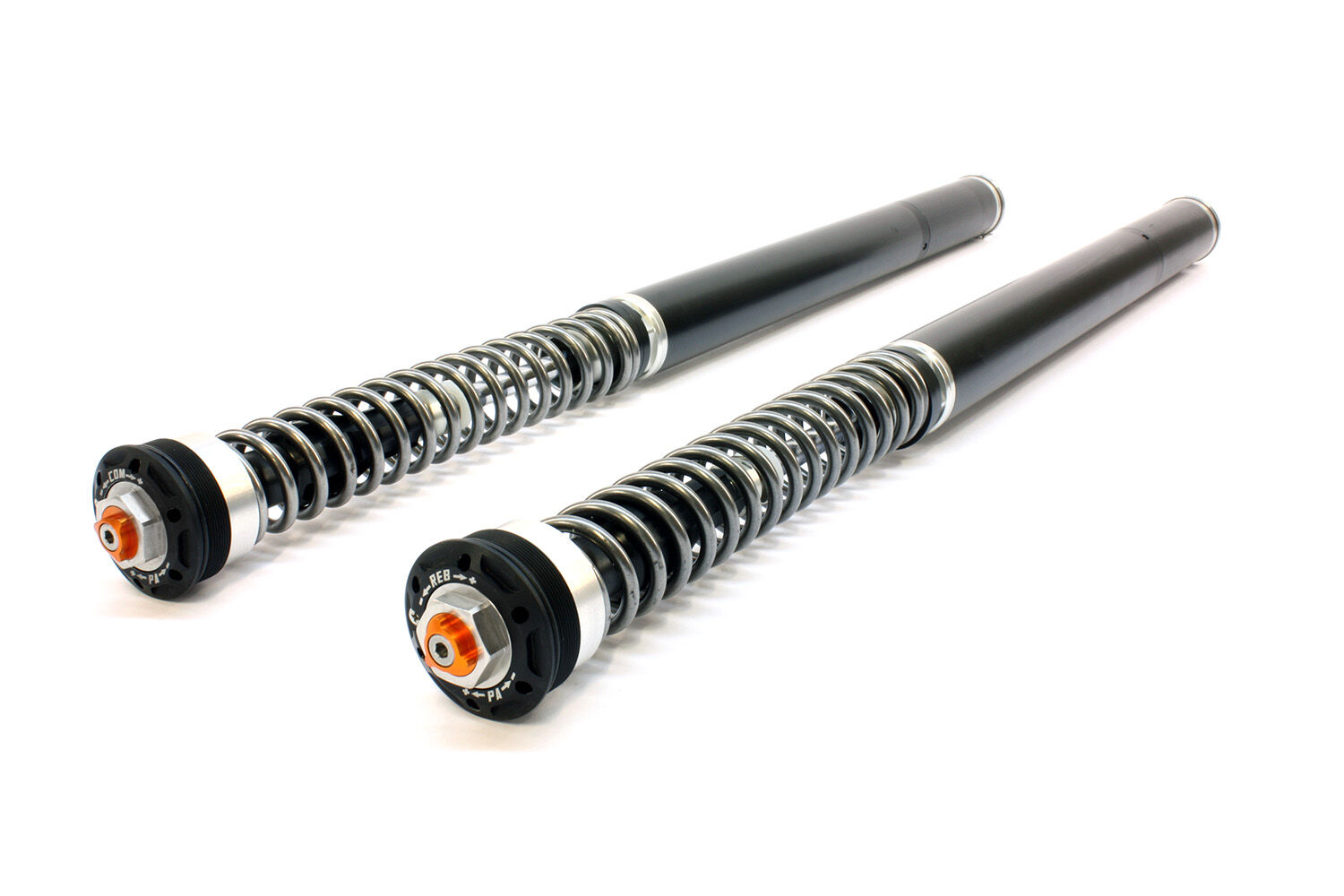

The TracTive X-TREME fork cartridge kit for the BMW F 800 GS Adventure replaces the standard fork internals with a closed, pressurised cartridge design for more consistent damping and control. This kit is specified to reduce the front ride height by 25 mm, helping riders who want improved reach while maintaining stable suspension behaviour. The sealed cartridge architecture helps reduce aeration and keeps damping response more predictable across changing conditions.

Who is this for?

Designed for BMW F 800 GS Adventure riders who want a more controlled front end for mixed-surface riding, touring loads, and variable road conditions, with the added benefit of a lower front stance. It suits riders who value a more supportive and consistent feel during braking, cornering, and rougher surfaces.

Design & features

This is a cartridge-based fork internal replacement using TracTive’s closed, pressurised (sealed) cartridge architecture. A sealed, pressurised system is an advantage for damping consistency because it helps minimise oil foaming and reduces performance variation as conditions change.

Tuning Controls

This cartridge kit includes dual damping adjustment (compression and rebound) along with mechanical spring preload adjustment, allowing the front suspension to be tuned to rider preference, riding conditions, and typical luggage/passenger use.

Before You Install

  • Confirm the intended 25 mm front ride-height reduction suits your overall chassis balance and ground clearance needs.
  • Set sag and baseline adjustments after installation, then refine based on handling feedback.
  • Professional installation and setup is recommended to ensure correct assembly, oil height, and alignment.

Serviceability/Lifecycle

TracTive cartridges are designed to be serviceable. Periodic maintenance helps maintain consistent damping performance over time, especially when used in demanding or dirty conditions typical of adventure riding.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 35BM14-D5343-TR
Model # 35BM14-D5343-TR
Barcode # 35BM14D5343TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.900m
Unit Of Measure Set
Type X-TREME
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front
Damping Adjustment Type Rebound & Compression
Seat Height Change (mm) Lowered -25
Shock Length Eye to Eye (mm) 885.0
Spring Rate Standard 5.6 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 195.0
Notes Hydraulic end-stop
Fitted Spring 5.6-370
