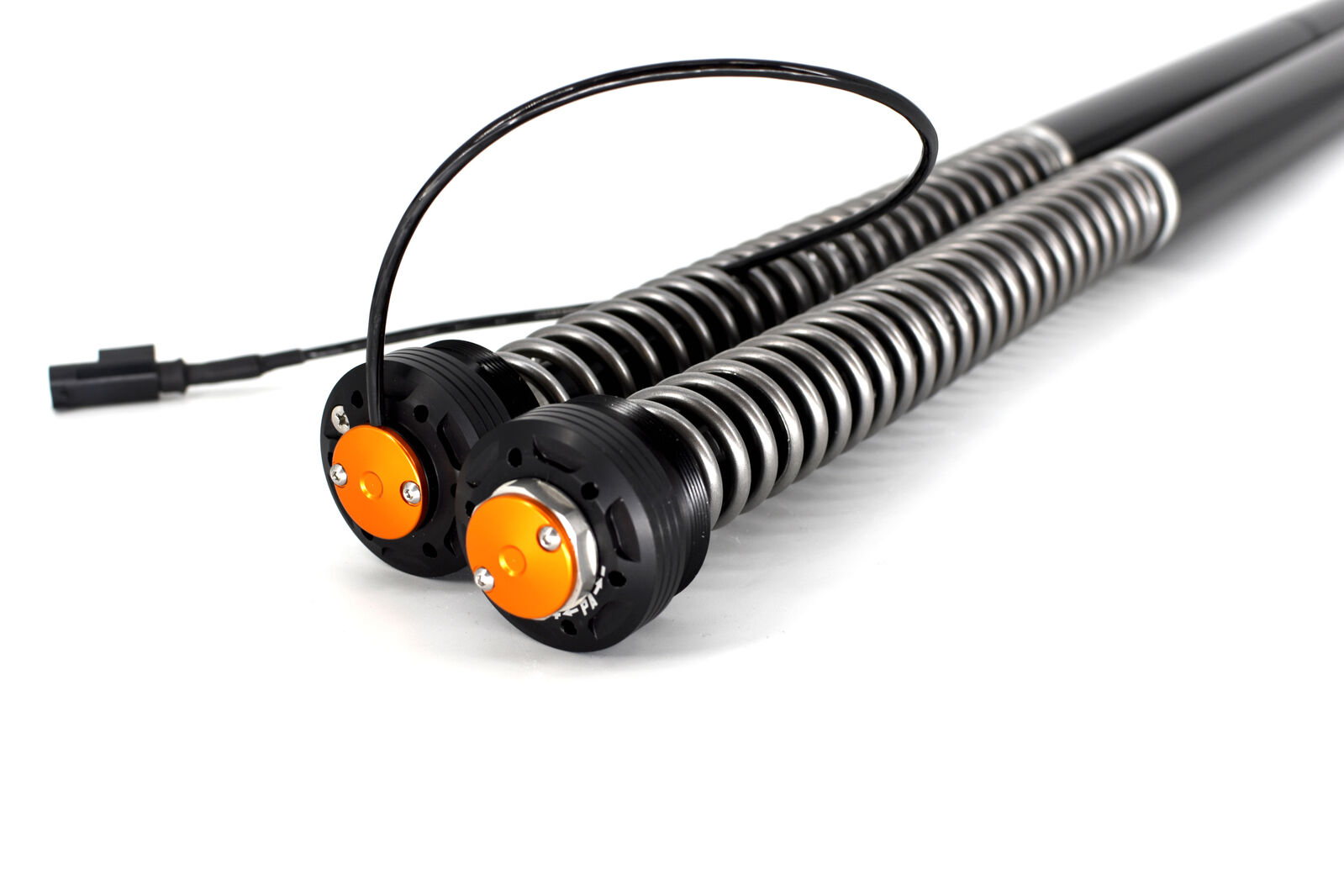

TracTive BMW M 1000 XR Fork Cartridge kit eX-TREME – Front Cartridge kit – Height: Standard

The BMW M 1000 XR gains a dramatic improvement in front-end feel with the TracTive eX-TREME system. Designed to eliminate harshness and instability, it provides a composed, responsive ride across Australia’s toughest road and trail conditions.

Why Choose TracTive eX-TREME

  • Closed-cartridge construction ensures precision damping and fade resistance.
  • Independent rebound and compression adjustment for fine-tuned handling.
  • Hard-anodised internals offer superior durability against corrosion and wear.
  • Linear-rate spring response delivers predictable feedback and balance.
  • Hand-assembled in the Netherlands to the highest quality standards.
  • Completely rebuildable design for long-term value and serviceability.
  • Proven in rally, adventure, and endurance competition environments.
  • Backed by Teknik Motorsport’s Australian expertise and setup support.

“After upgrading to the TracTive eX-TREME kit, the bike handles like a dream—smooth on corrugations and rock solid in corners.”
— Mia

Why Choose Teknik Motorsport

Teknik Motorsport is Australia’s trusted motorcycle suspension authority and the national distributor for TracTive products. Our team provides tailored setup advice and ongoing support to ensure every system performs at its best. Learn more at Teknik Motorsport.

  • These cartridges fit right into the fork legs without modifications to the fork.
  • The cartridges are closed, meaning that the cartridge is like a separate, pressurised shock absorber inside the fork with its own damping oil for optimal handling.
  • The products were originally developed in close cooperation with adventure riders, world travelers and rally riders.
  • The products have proven their value over the years: hugely improved handling while retaining comfort during long travels.
  • This is certainly also due to the huge size of piston used: 35 mm diameter.
  • This size of piston is the largest of all aftermarket suspension providers.
  • Apart from a high oil flow, this piston size allows for a stable, well-controlled damping behaviour.
  • The size of the internal bore also allows to use electronic adjustments.
  • Later on the cartridges have been further developed for use in road racing.
  • Again the cartridge design has proven to be stable and finely adjustable.
  • Every cartridge can be easily opened and serviced.
  • Or the damping can be tuned for the customer's application.
  • Spring rate, spring preload and air chamber are easily modified, there is for every product a range of springs available pending on loading and application.
  • Every cover cap contains a dearation screw to remove an excess of foam and air.These cartridges fit plug and play into the motorbike with the original connector.
  • There is no need for cancelation kits or other modifications to the motorbike or its wiring harness.
  • The motorbike's control unit does not notice electrical differences between the original damping valve and the Tractive DDA damping valve.
  • However, the Tractive DDA vale is more stable, has a larger adjustment range and adjusts faster than the orginal valve.Inside the cartridge are top out springs that create an easier moving fork for accelerating out of corners.
  • This results in a longer grip and prevents the bike from going into a headshake..
  • Brand: BMW
  • Model: M1000XR
  • Year Range: 2024 - 2025
  • Position: Front
  • Product Series: TracTive Suspension
  • Damping Adjustment: Advanced Damping Technology
SKU 35BM24-P8350-TR
Model # Active Feb 2025
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.900m
Type eX-CELLENT Front Cartridge kit
