eX-Cellent Electronic Fork Cartridge Kits - Factory Height

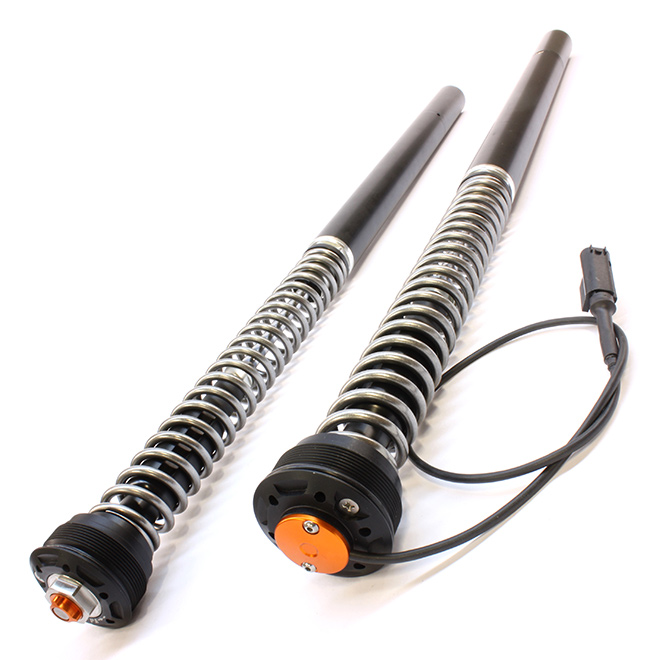

Teknik eX-CELLENT Fork Cartridge Kit

eX-CELLENT Fork Cartridge Kit

Factory height suspension length. These premium performance closed fork cartridges were initially designed for the tarmac tearing road & race S1000RR and have been modified to suit BMW sport and touring derivatives. Designed to replace the stock ESA electronic damping control sets, they are completely plug & play with no loss of features or strange error messages on the dash. With increased compression & rebound adjustability, manual spring preload tuning and multiple spring rates to suit rider weight.

Race-proven closed fork cartridges for road and track BMW models

  • Largest valving pistons at 35mm for high oil flow and stable behaviour
  • Plug & play replacement for ESA electronic damping with no ECU errors
  • Top out springs, hydraulic damper bottoming stop and de-aeration screws
  • Fully rebuildable units for easy servicing and tuning

Recommended Pairings

Consider matching your cartridge upgrade with Suspension Tools and book workshop support via servicing & tuning.

Shop eX-CELLENT Fork Cartridge Kit

Explore eX-CELLENT fork cartridges, spring choices and tuning options for balanced road and track performance.

10 Products Found
Tractive eX-TREME Fork Cartridge kit BMW S 1000 R

Tractive eX-TREME Fork Cartridge kit BMW S 1000 R

Front | Standard Height
(SKU: 35BM14-P8370-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Standard Height
Spring Rate Standard:   9.5 N/mm
Spring Option -2:   8.5-230
Spring Option +1:   10.0-230
Spring Option -1:   9.0-230
Air Chamber - Street:   105
Cartridge Length (mm):   672 (690)
Spring Option +2:   10.5-230
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 14, SPL 17 +7,5/-5
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   9.5-230
Stroke Metal to Metal (mm):   115.0
Type Code:   eX-TREME


Tractive eX-TREME Fork Cartridge kit BMW S 1000 RR

Tractive eX-TREME Fork Cartridge kit BMW S 1000 RR

Front | Standard Height
(SKU: 35BM15-P8376-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Standard Height
Spring Rate Standard:   10.0 N/mm
Spring Option -2:   9.0-230
Spring Option +1:   10.5-230
Spring Option -1:   9.5-230
Air Chamber - Street:   105
Cartridge Length (mm):   672.0 (690)
Spring Option +2:   11-230
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 14, SPL 17 +7,5/-5
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   10.0-230
Stroke Metal to Metal (mm):   115.0
Type Code:   eX-TREME


Tractive eX-TREME Fork Cartridge kit BMW S 1000 XR

Tractive eX-TREME Fork Cartridge kit BMW S 1000 XR

Front | Standard Height
(SKU: 35BM15-P8377-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Standard Height
Spring Rate Standard:   8.5 N/mm
Spring Option -2:   7.5-280
Spring Option Maximum:   10.5-208
Spring Option +1:   9.0-280
Spring Option -1:   8.0-280
Air Chamber - Street:   90
Cartridge Length (mm):   802.5 (820)
Spring Option +2:   9.5-280
Manufacturer Note 1:   Fork oil included
Damping Feature:   Hydraulic end-stop
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 10, SPL 10 +12/-0
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   8.5-280
Notes:   Hydraulic end-stop
Stroke Metal to Metal (mm):   146.5
Type Code:   eX-TREME


Tractive eX-TREME Fork Cartridge kit BMW S 1000 RR

Tractive eX-TREME Fork Cartridge kit BMW S 1000 RR

Front | Standard Height
(SKU: 35BM20-P8313-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Standard Height
Spring Rate Standard:   9.5 N/mm
Spring Option -2:   8.5-280
Spring Option +1:   10.0-280
Spring Option -1:   9.0-280
Air Chamber - Street:   90
Cartridge Length (mm):   710.0
Spring Option +2:   10.5-280
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 8, SPL 8 +12/-0
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   9.5-280
Stroke Metal to Metal (mm):   120.0
Stroke Metal to Metal (mm):   129
Type Code:   eX-TREME


Tractive eX-TREME Fork Cartridge kit BMW S 1000 XR

Tractive eX-TREME Fork Cartridge kit BMW S 1000 XR

Front | Standard Height
(SKU: 35BM20-P8314-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Standard Height
Spring Rate Standard:   8.5 N/mm
Spring Option -2:   7.5-330
Spring Option +1:   9.0-330
Spring Option -1:   8.0-330
Air Chamber - Street:   120
Cartridge Length (mm):   809.0 (after spring)
Spring Option +2:   9.5-330
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 14, SPL 12 +12/-0
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   8.5-330
Stroke Metal to Metal (mm):   148.0
Type Code:   eX-TREME


Tractive eX-TREME Fork Cartridge kit BMW S 1000 R

Tractive eX-TREME Fork Cartridge kit BMW S 1000 R

Front | Standard Height
(SKU: 35BM20-P8335-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Standard Height
Spring Rate Standard:   9.5 N/mm
Spring Option -2:   8.5-280
Spring Option +1:   10.0-280
Spring Option -1:   9.0-280
Air Chamber - Street:   100
Cartridge Length (mm):   710.0
Spring Option +2:   10.5-280
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 10, SPL 6 +12/-0
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   9.5-280
Stroke Metal to Metal (mm):   120.0
Stroke Metal to Metal (mm):   140
Type Code:   eX-TREME


Tractive eX-TREME Fork Cartridge kit BMW M 1000 R

Tractive eX-TREME Fork Cartridge kit BMW M 1000 R

Front | Standard Height
(SKU: 35BM20-P8335-TR-01)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Standard Height
Spring Rate Standard:   9.5 N/mm
Spring Option -2:   8.5-280
Spring Option +1:   10.0-280
Spring Option -1:   9.0-280
Air Chamber - Street:   100
Cartridge Length (mm):   710.0
Spring Option +2:   10.5-280
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 8, SPL 8 +12/-0
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   9.5-280
Stroke Metal to Metal (mm):   120.0
Stroke Metal to Metal (mm):   140
Type Code:   eX-TREME


Tractive eX-TREME Fork Cartridge kit BMW M 1000 R

Tractive eX-TREME Fork Cartridge kit BMW M 1000 R

Front | Lowered -20mm
(SKU: 35BM20-P8336-TR-01)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Lowered -20
Length Change (mm):   Lowered -20mm
Spring Rate Standard:   9.5 N/mm
Manufacturer Note 2:   Side and/or center stand might be too long
Spring Option -2:   8.5-230
Spring Option +1:   10.0-230
Spring Option -1:   9.0-230
Air Chamber - Street:   100
Cartridge Length (mm):   690
Spring Option +2:   10.5-230
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 10, SPL 10 +12/-0
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   9.5-230
Stroke Metal to Metal (mm):   120
Type Code:   eX-TREME


Tractive eX-TREME Fork Cartridge kit BMW M 1000 XR

Tractive eX-TREME Fork Cartridge kit BMW M 1000 XR

Front | Standard Height
(SKU: 35BM24-P8350-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Standard Height
Spring Rate Standard:   8.5 N/mm
Spring Option -2:   7.5-280
Spring Option +1:   9.0-280
Spring Option -1:   8.0-280
Air Chamber - Street:   110
Cartridge Length (mm):   797.0 (after spring)
Spring Option +2:   9.5-280
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 12, SPL 10 +12/-0
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   8.5-280
Stroke Metal to Metal (mm):   136
Type Code:   eX-TREME


Tractive eX-TREME Fork Cartridge kit BMW M 1000 XR

Tractive eX-TREME Fork Cartridge kit BMW M 1000 XR

Front | Lowered -30mm
(SKU: 35BM24-P8370-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Lowered -30
Spring Rate Standard:   8.5 N/mm
Manufacturer Note 2:   Side and/or center stand might be too long
Spring Option -2:   7.5-280
Spring Option +1:   9.0-280
Spring Option -1:   8.0-280
Air Chamber - Street:   95
Cartridge Length (mm):   767.0 (after spring)
Spring Option +2:   9.5-280
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 11, SPL 10 +12/-0
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   8.5-280
Stroke Metal to Metal (mm):   106
Type Code:   eX-TREME
