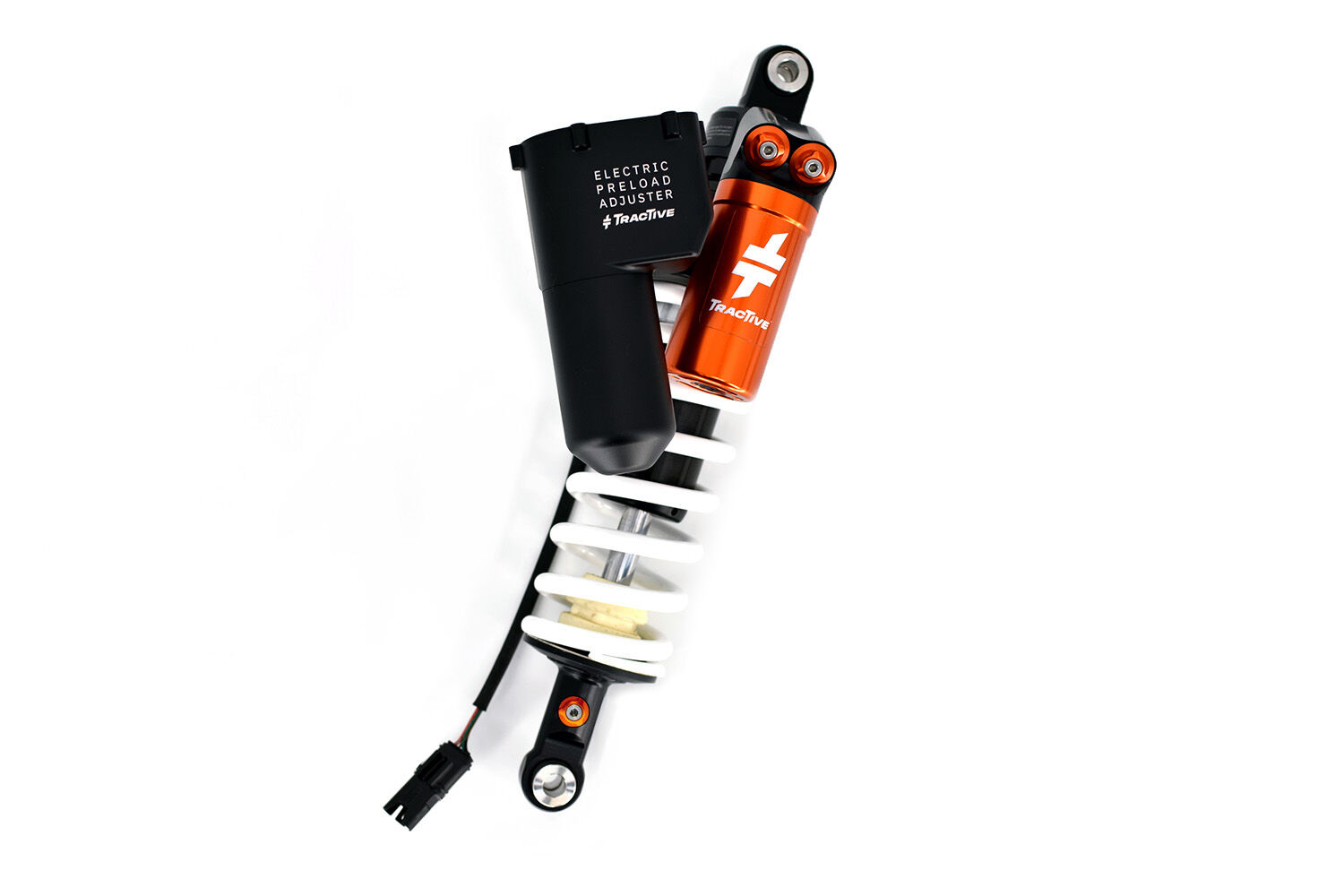

TracTive BMW R 1250 GS Rear Shock X-TREME – Front Shock – Height: Standard

Precision, control, and comfort—three hallmarks of the TracTive X-TREME. Engineered specifically for the BMW R 1250 GS, it delivers race-inspired performance that’s equally at home on winding roads and rugged trails.

Why Choose TracTive X-TREME

  • Closed-cartridge technology for consistent damping and fade-free operation.
  • Independent compression and rebound adjustment for tailored ride quality.
  • Hard-anodised internals to reduce friction and resist corrosion.
  • Linear-rate spring system provides balanced traction and steering precision.
  • Manufactured and assembled in the Netherlands under ISO-certified standards.
  • Fully rebuildable design for long-term reliability and serviceability.
  • Proven in competition and adventure environments around the world.
  • Backed by Teknik Motorsport’s professional tuning and setup expertise.

“The TracTive X-TREME took my BMW R 1250 GS to a new level—smooth, composed, and confidence inspiring.”
— Ava

Why Choose Teknik Motorsport

Teknik Motorsport is Australia’s trusted motorcycle suspension specialist and TracTive’s national distributor. Our expert technicians provide setup advice, tuning, and full after-sales support to help you achieve perfect handling. Learn more at Teknik Motorsport.

  • This shock absorber uses a damping shim stack specifically developed for its application.
  • The aluminum shock absorber housing creates maximum thermal stability by optimal heat removal.
  • Not only leads this to stable performance but also to a longer lifetime of the shock and its oil.
  • To create the best performance for every model we use high flow pistons, low friction seals, and dedicated shimstacks.
  • We use heavy duty components like microfinished induction hardened quenched&tempered 42CrMo 16mm piston rods, best quality bearings and stainless steel bushings.
  • Every shock can be opened and serviced, or tuned for the customer's application.
  • For all shocks there is a range of springs from softer than standard till harder.This shock is the choice for customers that want to adjust damping between different tracks or want to have optimal damping control.
  • Using the rebound adjuster, the damping is adjusted with approximately 18 clicks.
  • Every clicker adjustment brings a noticeable change in damping level.The main advantage of a damper with an external reservoir is that the shock absorber contains significantly more oil and also shows significantly more cooling surface than a shock absorber without a reservoir.
  • It additionally offers the tuning capabilities to control the compression (ingoing) oil flow.
  • Two separate adjusters control the damping respectivily at low shock absorber speed (slow undulations in the track/road) and at high shock absorber speed (sudden bumps or holes).
  • The fixed piggybag fits nicely within the motorbike frame.
  • The shock absorber is equipped with a so-called PDSII system against bottoming out.
  • It has a 2nd damping piston mounted on top of the main damping piston.
  • At the end of the ingoing shock absorber stroke, this 2nd damping piston enters a cup and creates an extra damping level.
  • This happens only during the ingoing movement and only at high ingoing speeds.
  • It effectivily is a cushion that absorbs the high ingoing energy and prevents a hard bottoming of the shock absorber.
  • This leads to increased comfort and safety.
  • At the same time the bottoming impacts on the motorbike frame are minimised, leading to less bent bolts and damages.The shock absorber comes with a new electric preload adjuster with increased robustness and adjustment range..
  • Brand: BMW
  • Model: R1250GS
  • Year Range: 2018 - 2024
  • Position: Rear
  • Product Series: TracTive Suspension
  • Damping Adjustment: Advanced Damping Technology
SKU 46BM18-T5829-TR
Model # Active Feb 2025
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Type X-TREME + EPA2
