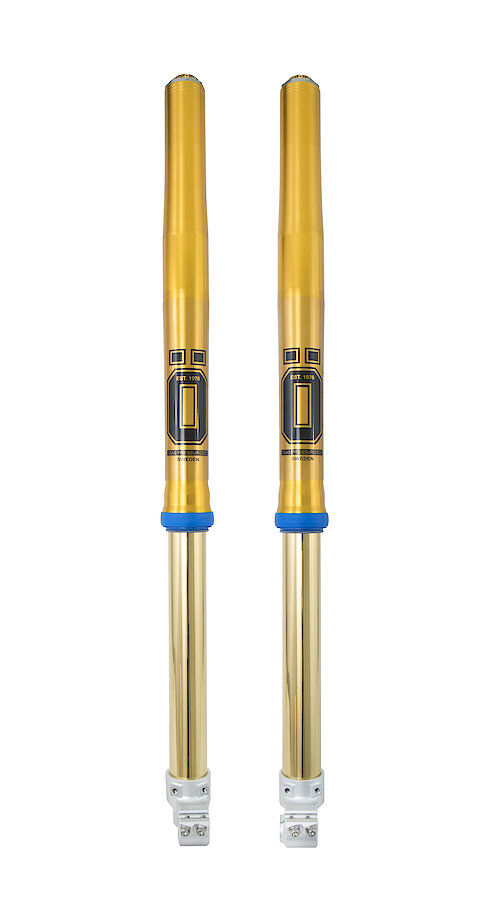

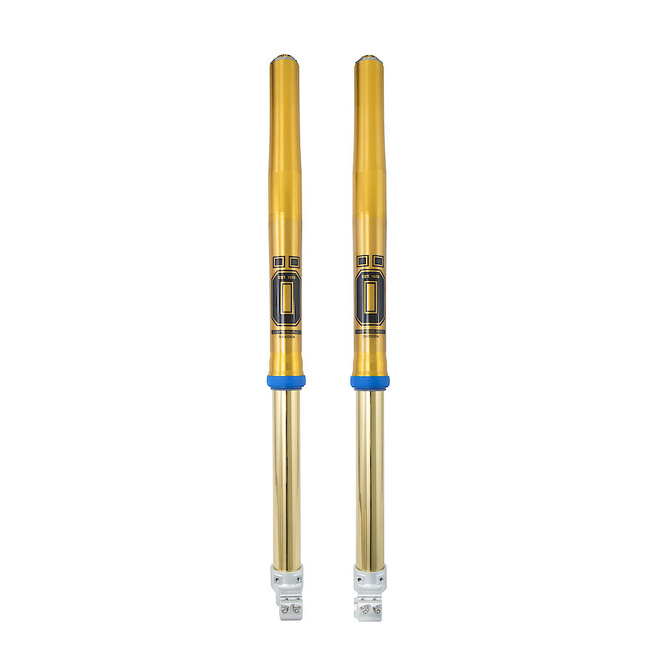

Name: Ohlins FGKT1696 RXF 48 S Fork Complete Front for KTM 125/150/250 SX All Markets, 250/350/450 SX-F All Markets, 250/350/450 XC-F USA/CAN/AUS/NZ/MEX
Brand: Ohlins
SKU: FGKT1696
Price: 6159.94 AUD
Availability: PreOrder

US customers; Orders are being processed manually due to tariff restrictions. Please email sales@teknikmotorsport.com to place an order.

Description
Information

The Ohlins FGKT1696 RXF 48 S Complete Front Fork is designed to deliver exceptional performance and control for KTM 125/150/250 SX and 250/350/450 SX-F and XC-F models. Built to withstand long days on challenging tracks, this fork provides dependable comfort and load-carrying stability. It effectively manages rough terrain, from corrugations to rocky climbs, keeping the bike stable and the rider fresh over extended rides.

Key Features

Long-distance comfort and off-road composure for demanding conditions
Handles luggage and pillion loads with enhanced stability
External adjusters enable quick, precise tuning on the trail
Durable construction designed for harsh environments and extended use

Specifications

Mounting Position: Front
Length: 950 mm
Stroke: 303 mm
Fitted Spring: 02428-49

SKU	FGKT1696
Model #	RXF 48
Barcode #	FGKT1696
Brand	Ohlins
Shipping Weight	10.0000kg
Shipping Size	0.400 x 0.200 x 0.950m
Type	Units

See our Shipping Information See our Frequently Asked Questions

Position (Front or Rear)	Front Fork
Spring Rate Standard	4.9 N/mm
spring rate	4.7 N/mm
Type Code	RXF 48
Fork Length (mm)	950.0
Stroke Metal to Metal (mm)	303.0
Product Family	RXF 48 S
Notes	08765- series springs
Fitted Spring:	02428-49
