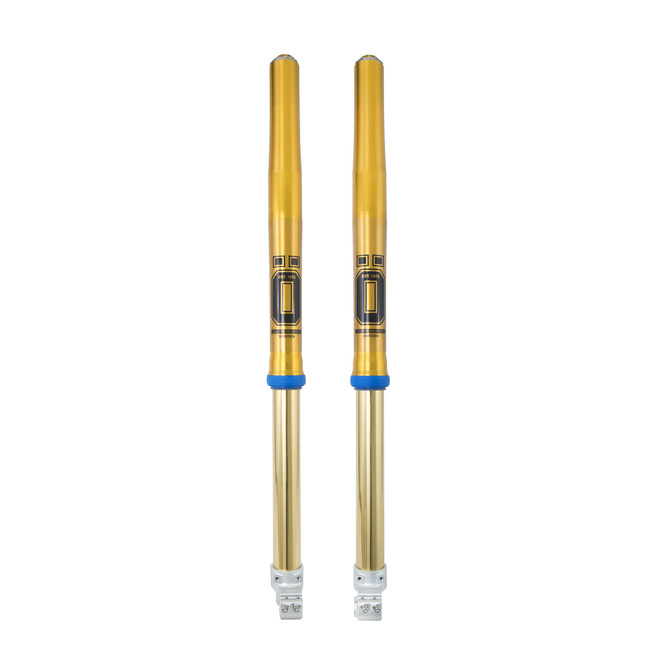

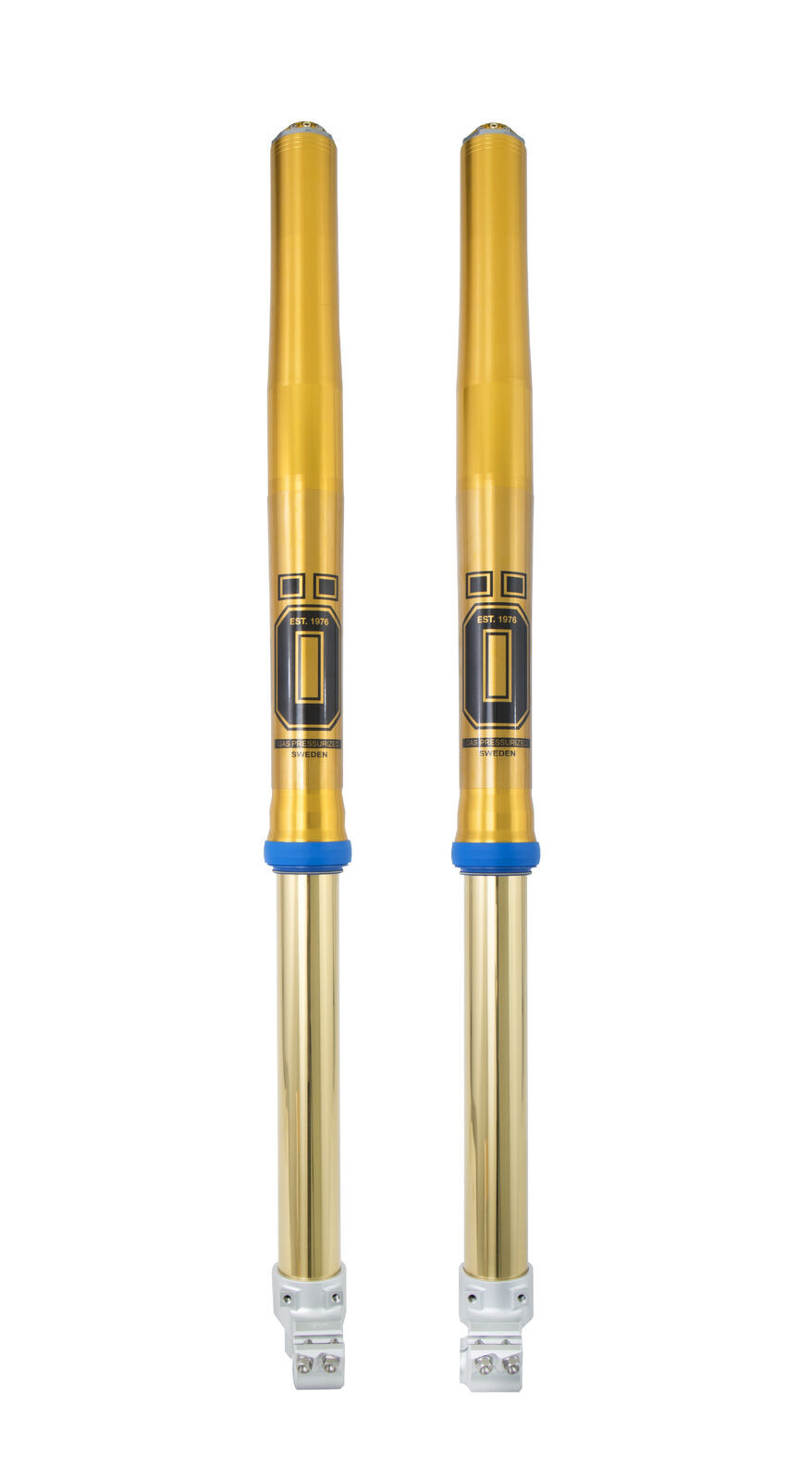

Ohlins FGYA2196 RXF 48 S Fork Complete Front for Yamaha YZ 250F, YZ 450F
Ohlins Suspension - Engineered for Performance
SKU: FGYA2196
The Ohlins FGYA2196 RXF 48 S complete front fork is engineered to deliver exceptional performance and control for Yamaha YZ 250F and YZ 450F motorcycles. Built to withstand long days on rough tracks, this fork provides consistent comfort and load-carrying stability across varied terrain, including corrugations and rocky climbs. Its design keeps the bike planted and the rider fresh, kilometre after kilometre, making it ideal for demanding off-road conditions.
Key Features
- Long-distance comfort and off-road composure for extended rides
- Handles luggage and pillion with enhanced stability
- External adjusters allow quick and precise trail-side tuning
- Durable construction designed for harsh and challenging environments
Specifications
- Brand: Ohlins
- Product Family: RXF 48 S Fork Complete
- Mounting Position: Front
- Length: 946 mm
- Stroke: 301 mm
- Fitted Spring: 02428-47
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FGYA2196 |
| Model # | RXF 48 |
| Barcode # | FGYA2196 |
| Brand | Ohlins |
| Shipping Weight | 10.0000kg |
| Shipping Size | 0.400 x 0.200 x 0.950m |
| Type | Units |
If your Motorcycle is listed below, this product will suit:
- YAMAHA YZ250F 2014
- YAMAHA YZ250F 2015
- YAMAHA YZ250F 2016
- YAMAHA YZ250F 2017
- YAMAHA YZ250F 2018
- YAMAHA YZ250F 2019
- YAMAHA YZ250F 2020
- YAMAHA YZ250F 2021
- YAMAHA YZ450F 2014
- YAMAHA YZ450F 2015
- YAMAHA YZ450F 2016
- YAMAHA YZ450F 2017
- YAMAHA YZ450F 2018
- YAMAHA YZ450F 2019
- YAMAHA YZ450F 2020
- YAMAHA YZ450F 2021
| Position (Front or Rear) | Front Fork |
| Spring Rate Standard | 4.7 N/mm |
| Spring Rate | 4.7 N/mm |
| Type Code | RXF 48 |
| Fork Length (mm) | 946.0 |
| Stroke Metal to Metal (mm) | 301.0 |
| Product Family | RXF 48 S |
| Notes | 08765- series springs *Replaced by FFX 0203* |
| Fitted Spring | 02428-47 |
| Rec. Ohlins Oil | 01330- |
