eX-Cellent Electronic Fork Cartridge Kits - 20mm Lowered

1 Product Found
Tractive eX-TREME Fork Cartridge kit BMW S 1000 R

Tractive eX-TREME Fork Cartridge kit BMW S 1000 R

Front | Lowered -20mm
(SKU: 35BM20-P8336-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Lowered -20
Spring Rate Standard:   9.5 N/mm
Manufacturer Note 2:   Side and/or center stand might be too long
Spring Option -2:   8.5-230
Spring Option +1:   10.0-230
Spring Option -1:   9.0-230
Air Chamber - Street:   100
Cartridge Length (mm):   690.0
Spring Option +2:   10.5-230
Manufacturer Note 1:   Fork oil included
Damping System:   Separated oil/gas
Spring Preload Setting:   P&P 10, SPL 10 +12/-0
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   35
Suspension Unit Type:   Cartridge kit
Fitted Spring:   9.5-230
Stroke Metal to Metal (mm):   120
Type Code:   eX-TREME

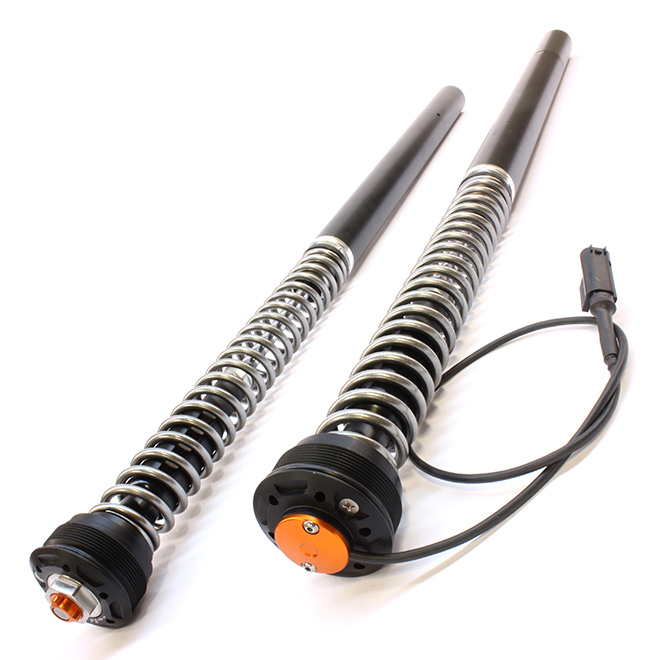

Teknik eX-CELLENT (20mm Low) Fork Cartridge Kit

eX-CELLENT (20mm Low) Fork Cartridge Kit

20mm shorter than factory height for tuners to lower their suspension. These premium performance closed fork cartridges were initially designed for the tarmac tearing road & race S1000RR, but have been modified to suit BMW's other sport & touring derivatives too. Designed to replace the stock ESA electronic damping control sets, they are completely plug & play, with no loss of features or weird error messages on the screen - fitting into the existing pair of fork legs without modifications.

Lowered 20mm fork cartridges for tuned road and track use

  • Reduce front ride height by 20mm while retaining ESA compatibility
  • Increased compression & rebound adjustability plus manual spring preload tuning
  • Available in multiple spring rates with the largest valving pistons (35mm in diameter) for high oil flow and stable behaviour
  • Top out springs, hydraulic damper bottoming stop and a de-aeration screw for consistent control
  • Fully rebuildable cartridge tubes for easy servicing & tuning
