eX-Cite Electronic Shock Absorbers - Factory 40mm Lowered

Teknik eX-CITE (OEM 40mm Low)

eX-CITE (OEM 40mm Low)

Same length as BMWs factory lowered 40mm shorter height suspension. These TracTive eX-CITE shock absorbers replace the entire electronically controlled damper assembly with a plug & play OEM-fit unit, maintaining advanced features while eliminating error messages.

Factory-length 40mm lowered replacement for BMW ESA

  • Increased damping adjustability range and quicker response speed for tarmac-focused riding
  • Available in multiple spring rates to suit all rider weights
  • High flow 46mm main valving pistons, oversized 16mm chrome-moly shaft and heavy duty stainless bushes for strength and longevity
  • Separation piston (IFP) where space allows or emulsion design for plush initial stroke; fully rebuildable cold-forged 6082 aluminium shock body for servicing and tuning

Recommended Pairings

Consider matching your shock upgrade with Suspension Tools and consult our tech guide on suspension mods for your budget.

Shop eX-CITE (OEM 40mm Low)

Browse TracTive eX-CITE options and view servicing and tuning information at Workshop Services and our shock buying guide.

1 Product Found

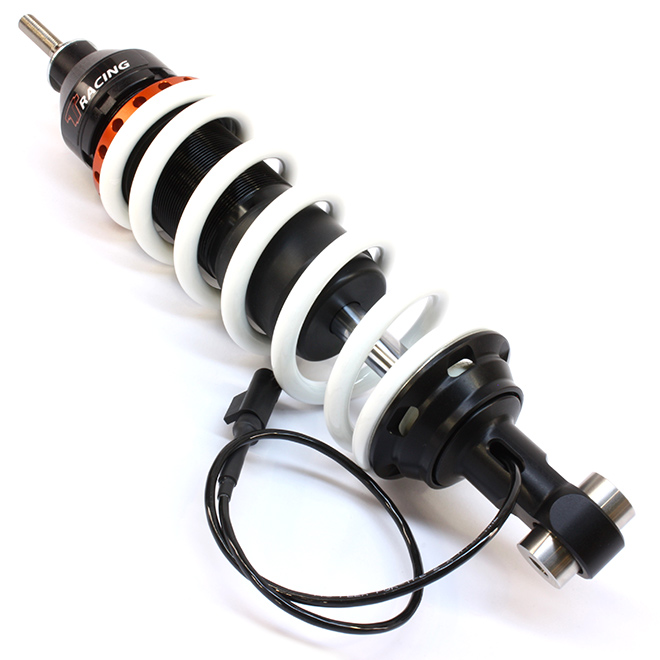

Tractive eX-CITE Shock BMW R 1250 GS Adventure

Tractive eX-CITE Shock BMW R 1250 GS Adventure

Front | Factory lowered
(SKU: 46BM18-P1150-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic
Seat Height Change (mm):   Factory Lowered -40
Seat Height Change (mm):   Factory Lowered
Shock Length Eye to Eye (mm):   383.0
Spring Rate Standard:   55 N/mm
Spring Option -2:   48-205
Spring Option +1:   60-205
Spring Option -1:   50-205
Spring Option +2:   65-205
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Emulsion oil/gas
Rebound Adjuster Position:   Cable exit (180 deg)
Spring Preload Setting:   14
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   55-205
Stroke Metal to Metal (mm):   85.0
Type Code:   eX-CITE


eX-CITE (OEM 40mm Low)

Same length as BMWs factory lowered 40mm shorter height suspension. These TracTive eX-CITE shock absorbers replace the entire electronically controlled damper assembly with a plug & play OEM-fit unit, maintaining advanced features while eliminating error messages.

Factory-length 40mm lowered replacement for BMW ESA

  • Increased damping adjustability range and quicker response speed for tarmac-focused riding
  • Available in multiple spring rates to suit all rider weights
  • High flow 46mm main valving pistons, oversized 16mm chrome-moly shaft and heavy duty stainless bushes for strength and longevity
  • Separation piston (IFP) where space allows or emulsion design for plush initial stroke; fully rebuildable cold-forged 6082 aluminium shock body for servicing and tuning
