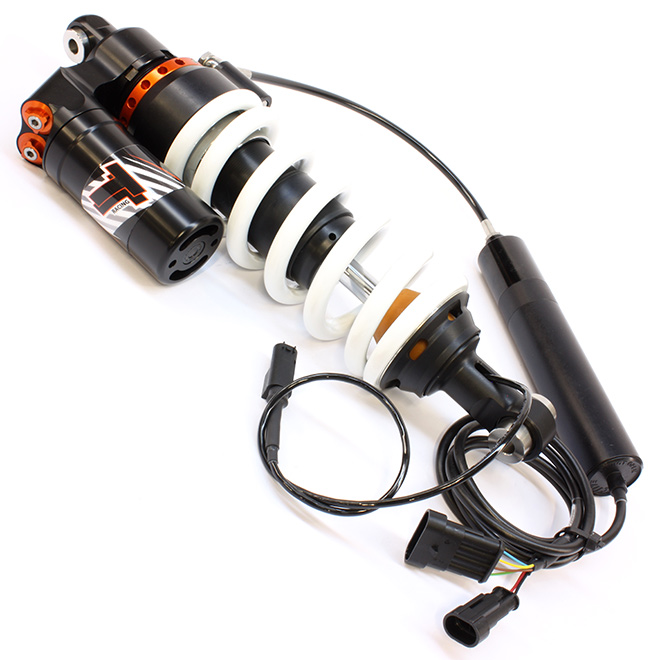

eX-PERIENCE + EPA (25mm Low)

25mm shorter than factory height with an electrically actuated spring preload collar, these performance piggyback shocks upgrade the X-Cite range with full damping adjuster options. They suit daily commuting, sporty cruising, tarmac touring and light adventuring while replacing the entire stock ESA electronically controlled damper assembly as a plug & play solution.

25mm lowered ESA replacement with electric preload control

25mm lowered ride height while retaining OEM electronic features
Electrically actuated spring preload collar for on-the-fly preload adjustment
Separate precision high & low speed compression adjusters plus increased rebound range
High flow 46mm main valving piston on a 16mm chrome-moly shaft and heavy duty stainless bushes
Cold-forged 6082 aluminium shock body, external reservoir and fully rebuildable design

Recommended Pairings

Consider matching these shocks with Suspension Tools. Read our shock design guide, the DIY damping tuning guide, or book servicing via Teknik workshop services.

Shop eX-PERIENCE + EPA (25mm Low)

Browse the eX-PERIENCE + EPA range for plug & play ESA replacements and performance shock options engineered for real-world versatility.

2 Products Found

Tractive eX-PERIENCE Shock BMW R 1200 GS Discontinued Final stock

Rear | Lowered -25mm | EPA
(SKU: 46BM13-P4717-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -25

Shock Length Eye to Eye (mm): 394.0

Spring Rate Standard: 150 N/mm

Type Code: eX-PERIENCE

Stroke Metal to Metal (mm): 74.0

Fitted Spring: 150-205

$3,995.00
5 In Stock

See Options

Tractive eX-PERIENCE Shock BMW F 850 GS

Rear | Lowered -25mm | EPA
(SKU: 46BM18-P4797-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -25

Shock Length Eye to Eye (mm): 387.0

Shock Length Eye to Eye (mm): 387

Spring Rate Standard: 140 N/mm

Spring Option -2: 120-205

Spring Option +1: 150-205

Spring Option -1: 130-205

Spring Option +2: 160-205

Manufacturer Note 1: Side and/or center stand might be too long

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (180 deg)

Low-speed Compression Adjuster Position: 10

High-speed Compression Adjuster Position: 10

Spring Preload Setting: 15 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 140-205

Stroke Metal to Metal (mm): 78.0

Type Code: eX-PERIENCE

$3,634.40
Custom Order

Order Now
