eX-Perience Electronic Shock Absorbers - 30mm Lowered & Electronic Preload Adjuster

Teknik eX-PERIENCE + EPA (30mm Low)

eX-PERIENCE + EPA (30mm Low)

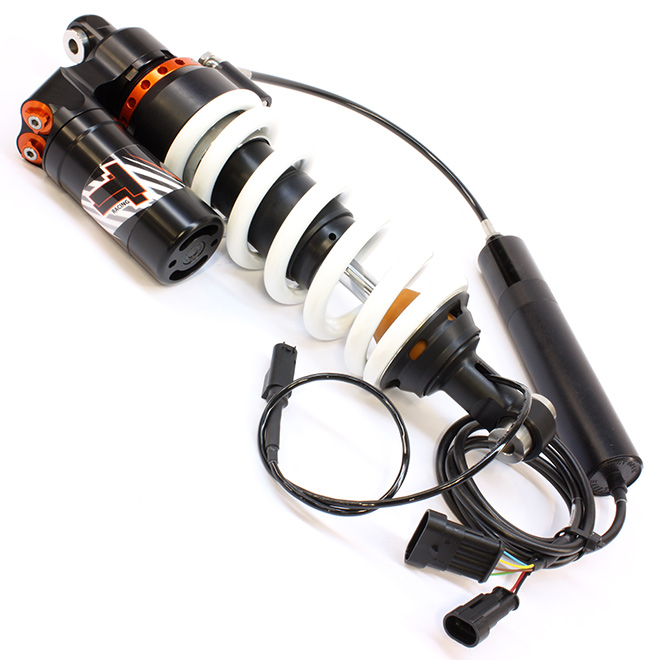

30mm shorter than factory height with an electrically actuated spring preload collar. These performance piggyback shocks upgrade the basic X-Cite range, retaining full OEM features while replacing the entire ESA electronically controlled damper assembly in a completely plug & play package.

Lowed 30mm plug & play piggyback shocks for versatile road and light adventure use

  • Daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring
  • Precise high & low speed compression adjusters and increased rebound range for on-the-fly tuning
  • High flow 46mm main valving piston on a 16mm chrome-moly shaft with heavy duty stainless bushes
  • Fully rebuildable cold-forged 6082 aluminium shock body and external reservoir for easy servicing & tuning
  • Plug & play replacement for ESA with no dash error messages

Recommended Pairings

Consider matching these shocks with Suspension Tools and consult our shock design guide, damping tuning guide or book workshop servicing.

Shop eX-PERIENCE + EPA (30mm Low)

Browse the range to find spring rates and valving suitable for your weight and riding style.

3 Products Found
Tractive eX-PERIENCE Shock BMW F 750 GS
Tractive eX-PERIENCE Shock BMW F 750 GS

Tractive eX-PERIENCE Shock BMW F 750 GS

Rear | Lowered -30mm | EPA
(SKU: 46BM18-P4702-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Lowered -30
Shock Length Eye to Eye (mm):   371.0
Spring Rate Standard:   150 N/mm
Spring Option -2:   130-180
Spring Option +1:   160-180
Spring Option -1:   140-180
Spring Option +2:   170-180
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (180 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   10 (EPA on min position)
Preload Adjustment:   Electro-hydraulic
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   150-180
Stroke Metal to Metal (mm):   62.0
Type Code:   eX-PERIENCE

$3,634.40
Custom Order
Order Now
Tractive eX-PERIENCE Shock BMW F 850 GS Adventure
Tractive eX-PERIENCE Shock BMW F 850 GS Adventure

Tractive eX-PERIENCE Shock BMW F 850 GS Adventure

Rear | Lowered -30mm | EPA
(SKU: 46BM19-P4704-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Lowered -30
Shock Length Eye to Eye (mm):   385.0
Spring Rate Standard:   150 N/mm
Spring Option -2:   130-205
Spring Option +1:   160-205
Spring Option -1:   140-205
Spring Option +2:   170-205
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (180 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   15 (EPA on min position)
Preload Adjustment:   Electro-hydraulic
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   150-205
Stroke Metal to Metal (mm):   76.0
Type Code:   eX-PERIENCE

$3,634.40
Custom Order
Order Now
Tractive eX-PERIENCE Shock BMW F 900 GS Adventure
Tractive eX-PERIENCE Shock BMW F 900 GS Adventure

Tractive eX-PERIENCE Shock BMW F 900 GS Adventure

Rear | Lowered -30mm | EPA
(SKU: 46BM19-P4704-TR-01)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Lowered -30
Shock Length Eye to Eye (mm):   385.0
Spring Rate Standard:   150 N/mm
Spring Option -2:   130-205
Spring Option +1:   160-205
Spring Option -1:   140-205
Spring Option +2:   170-205
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (180 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   15 (EPA on min position)
Preload Adjustment:   Electro-hydraulic
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   150-205
Stroke Metal to Metal (mm):   76
Type Code:   eX-PERIENCE

$3,634.40
Custom Order
Order Now

eX-PERIENCE + EPA (30mm Low)

30mm shorter than factory height with an electrically actuated spring preload collar. These performance piggyback shocks upgrade the basic X-Cite range, retaining full OEM features while replacing the entire ESA electronically controlled damper assembly in a completely plug & play package.

Lowed 30mm plug & play piggyback shocks for versatile road and light adventure use

  • Daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring
  • Precise high & low speed compression adjusters and increased rebound range for on-the-fly tuning
  • High flow 46mm main valving piston on a 16mm chrome-moly shaft with heavy duty stainless bushes
  • Fully rebuildable cold-forged 6082 aluminium shock body and external reservoir for easy servicing & tuning
  • Plug & play replacement for ESA with no dash error messages
