eX-PERIENCE + EPA (40mm Low)

40mm shorter than factory height with an electrically actuated spring preload collar. These performance piggyback shocks upgrade the X-Cite range, offering full damping adjuster options for mixed use riding — daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring — while retaining OEM functionality when replacing the stock ESA electronically controlled damper assembly.

Low 40mm ESA-compatible piggyback dampers for mixed-use riding

Plug & play replacement for factory ESA units with no dashboard errors
Separate precision high & low speed compression adjusters plus extended rebound range
Available multiple spring rates, high flow 46mm main piston and over-sized 16mm chrome-moly shaft
Durable heavy duty stainless bushes, cold-forged 6082 aluminium body and fully rebuildable design
Serviceable reservoir for straightforward servicing & tuning

Recommended Pairings

Consider matching these shocks with Suspension Tools and use our DIY damping tuning guide for setup tips.

Shop eX-PERIENCE + EPA (40mm Low)

Browse eX-PERIENCE + EPA 40mm low shocks and find the right specification for your bike and riding style.

1 Product Found

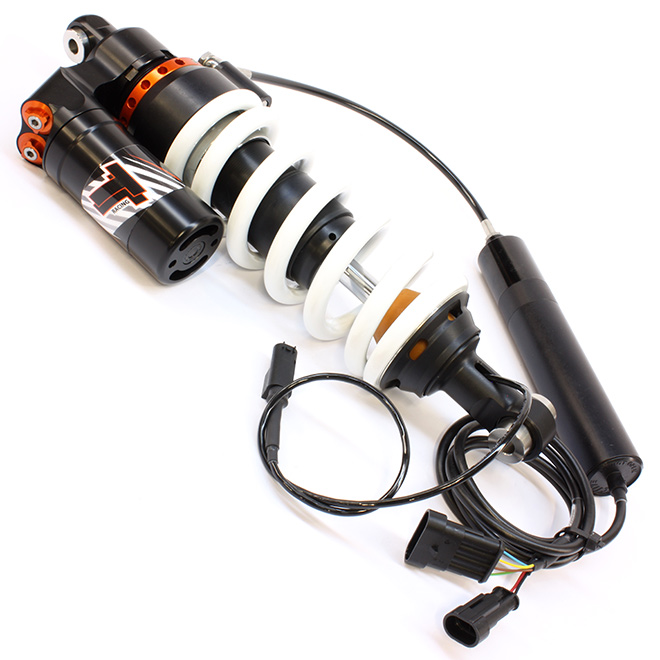

Tractive eX-PERIENCE Shock BMW F 850 GS

Rear | Lowered -40mm | EPA
(SKU: 46BM18-P4798-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -40

Shock Length Eye to Eye (mm): 382.0

Spring Rate Standard: 150 N/mm

Spring Option -2: 130-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Manufacturer Note 1: Side and/or center stand might be too long

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (180 deg)

Low-speed Compression Adjuster Position: 10

High-speed Compression Adjuster Position: 10

Spring Preload Setting: 17 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 73.0

Type Code: eX-PERIENCE

$3,634.40
Custom Order

Order Now
