eX-PERIENCE + EPA2 (OEM 40mm Low)

Same length as BMW's "factory lowered" 40mm shorter height suspension & electrically actuated spring preload collar. These performance piggyback shocks are an upgrade over the basic X-Cite shock absorber range, with all damping adjuster options for daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring.

Factory-low 40mm OEM replacement with retained ESA features

Plug & play replacement of the stock ESA electronically controlled damper assembly; bolts to factory mounts and plugs into the OEM wiring loom
Independent high & low speed compression adjusters plus increased rebound adjustability for precise settings
High-flow 46mm main valving piston, oversized 16mm chrome-moly shaft, heavy duty stainless steel bushes and multiple spring rates
Fully rebuildable cold-forged 6082 aluminium shock body with external reservoir for easy servicing & tuning

Recommended Pairings

Consider matching your shock upgrade with Suspension Tools for accurate setup and maintenance.

Shop eX-PERIENCE + EPA2 (OEM 40mm Low)

Explore eX-PERIENCE + EPA2 options and spring rates to suit rider weight and use-case.

1 Product Found

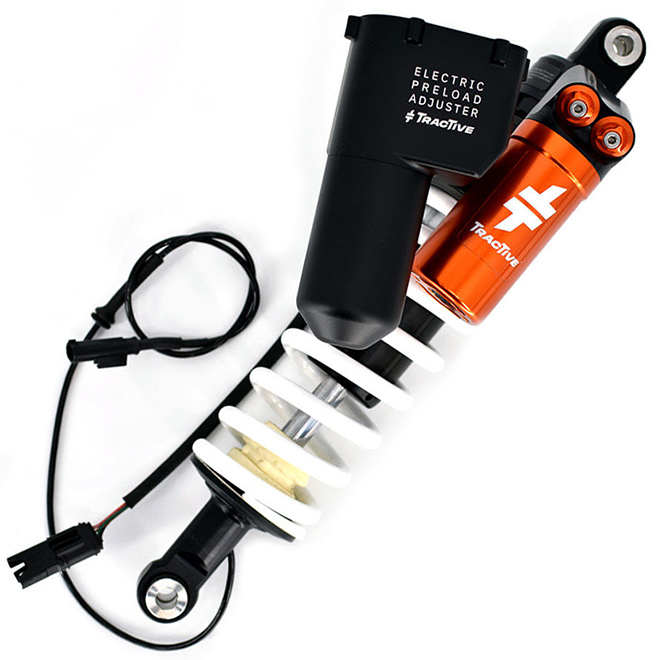

Tractive eX-PERIENCE Shock BMW R 1250 GS Adventure

Rear | Factory lowered | EPA
(SKU: 46BM18-P4849-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Factory Lowered

Shock Length Eye to Eye (mm): 397.0

Spring Rate Standard: 160 N/mm

Manufacturer Note 2: Side and/or center stand might be too long

Spring Option -2: 140-205

Spring Option +1: 170-205

Spring Option -1: 150-205

Spring Option +2: 180-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 10 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 160-205

Stroke Metal to Metal (mm): 78

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

eX-PERIENCE + EPA2 (OEM 40mm Low)

Factory-low 40mm OEM replacement with retained ESA features

Plug & play replacement of the stock ESA electronically controlled damper assembly; bolts to factory mounts and plugs into the OEM wiring loom
Independent high & low speed compression adjusters plus increased rebound adjustability for precise settings
High-flow 46mm main valving piston, oversized 16mm chrome-moly shaft, heavy duty stainless steel bushes and multiple spring rates
Fully rebuildable cold-forged 6082 aluminium shock body with external reservoir for easy servicing & tuning

Recommended Pairings

Consider matching your shock upgrade with Suspension Tools for accurate setup and maintenance.

Shop eX-PERIENCE + EPA2 (OEM 40mm Low)

Explore eX-PERIENCE + EPA2 options and spring rates to suit rider weight and use-case.
