eX-PERIENCE + EPA2 (40mm Low)

40mm shorter than factory height and an electrically actuated spring preload collar. These performance piggyback shocks are an upgrade over the X-Cite range, offering full damping adjusters and a plug-and-play replacement for the factory ESA electronically controlled damper assembly with no loss of OEM features or error messages.

Lowered ESA replacement with electric preload for mixed-use riding

Designed for daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring
Separate high and low speed compression adjusters plus expanded rebound range for precise tuning
Available with multiple spring rates, 46mm main piston and 16mm chrome-moly shaft for durability
Fully rebuildable cold-forged 6082 aluminium body with external reservoir for easy servicing

Recommended Pairings

Consider matching your upgrade with Suspension Tools for setup and maintenance.

Shop eX-PERIENCE + EPA2 (40mm Low)

Browse eX-PERIENCE + EPA2 40mm low shocks, maintenance resources and compatible spring rates to suit your bike and rider weight.

1 Product Found

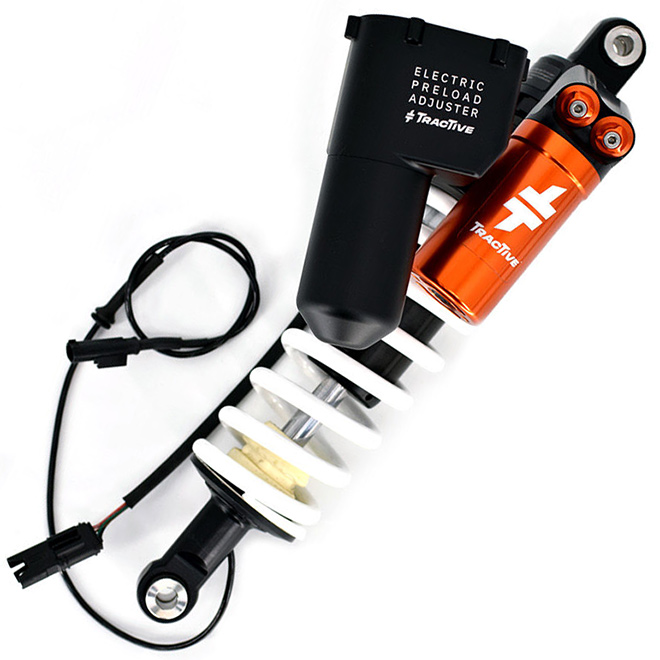

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Rear | Lowered -40mm | EPA
(SKU: 46BM14-P4849-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -40

Shock Length Eye to Eye (mm): 397.0

Spring Rate Standard: 160 N/mm

Manufacturer Note 2: Side and/or center stand might be too long

Spring Option -2: 140-205

Spring Option +1: 170-205

Spring Option -1: 150-205

Spring Option +2: 180-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 10 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 160-205

Stroke Metal to Metal (mm): 78

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now
