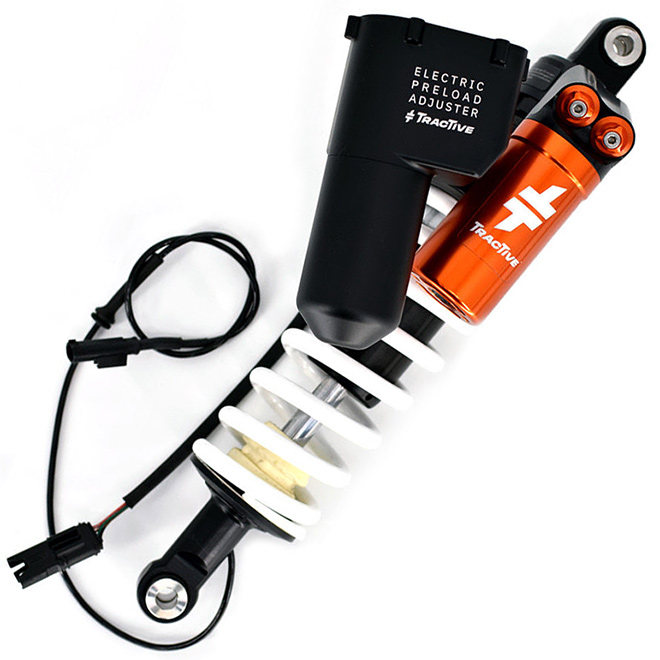

eX-Perience Electronic Shock Absorbers - 50mm Lowered & Electronic Preload Adjuster

eX-PERIENCE + EPA2 (50mm Low)

50mm shorter than factory height & electrically actuated spring preload collar. These performance piggyback shocks replace the stock ESA electronically controlled damper assembly with a completely plug & play solution, retaining factory mounts and OEM electrical integration.

Lowered ESA replacement for versatile road use

50mm lower ride height for improved stance and handling
Electrically actuated preload collar for on-the-fly preload control
Separate high & low speed compression adjusters and extended rebound range for precise damping
Durable, fully rebuildable construction: 46mm main valving piston, 16mm chrome-moly shaft and cold-forged 6082 aluminium shock body with external reservoir

Recommended Pairings

Consider matching this shock upgrade with Suspension Tools for accurate setup and maintenance.

Shop eX-PERIENCE + EPA2 (50mm Low)

Browse eX-PERIENCE EPA2 shocks and spring options to suit rider weight and intended use.

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Lowered -50mm | EPA
(SKU: 46BM13-P4841-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -50

Shock Length Eye to Eye (mm): 386.0

Spring Rate Standard: 150 N/mm

Manufacturer Note 2: Side and/or center stand might be too long

Spring Option -2: 130-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 12

High-speed Compression Adjuster Position: 12

Spring Preload Setting: 15 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 67

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

Tractive eX-PERIENCE Shock BMW R 1250 GS

Rear | Lowered -50mm | EPA
(SKU: 46BM18-P4841-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Lowered -50

Shock Length Eye to Eye (mm): 386.0

Spring Rate Standard: 150 N/mm

Manufacturer Note 2: Side and/or center stand might be too long

Spring Option -2: 130-205

Spring Option Maximum: 180-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 12

High-speed Compression Adjuster Position: 12

Spring Preload Setting: 15 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 67

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

eX-PERIENCE + EPA2 (50mm Low)

Lowered ESA replacement for versatile road use

50mm lower ride height for improved stance and handling

Electrically actuated preload collar for on-the-fly preload control

Separate high & low speed compression adjusters and extended rebound range for precise damping

Durable, fully rebuildable construction: 46mm main valving piston, 16mm chrome-moly shaft and cold-forged 6082 aluminium shock body with external reservoir
