eX-Perience Electronic Shock Absorbers - Factory Sport Chassis Lowered & Electronic Preload Adjuster

Teknik eX-PERIENCE + EPA2 (Sport Chassis)

eX-PERIENCE + EPA2 (Sport Chassis)

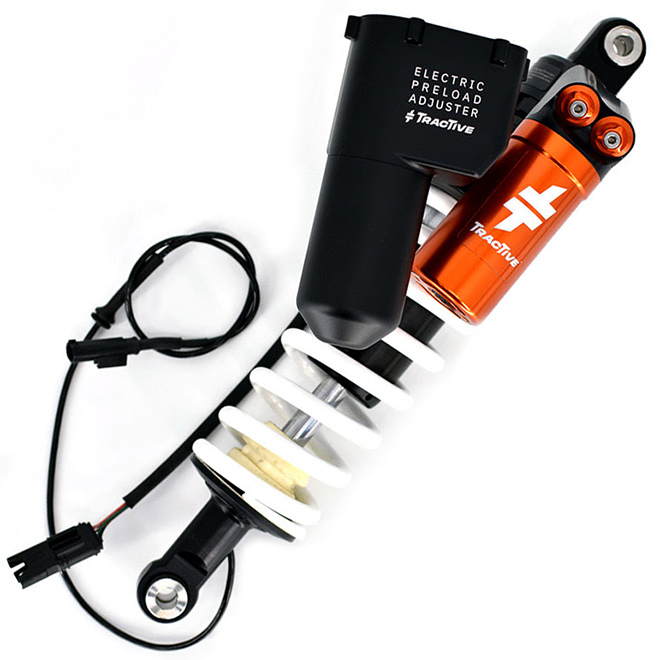

Same length as BMW's "Sport Chassis" shorter height suspension & electrically actuated spring preload collar. These performance piggyback shocks upgrade the X-Cite range with full damping adjuster options for daily commuting, sporty cruising, tarmac touring and light adventuring. They replace the stock ESA electronically controlled damper assembly, bolting to factory mounts and plugging into the OEM electrical wiring loom with no loss of features or error messages.

Sport-height, plug-and-play piggyback dampers for mixed-use riding

  • Plug-and-play replacement for ESA with electrical compatibility and factory mounts
  • Separate high & low speed compression adjusters plus increased rebound range
  • Available spring rates for varied rider weights, heavy-duty stainless bushes
  • 46mm high-flow main piston, 16mm chrome-moly shaft and cold-forged 6082 aluminium body — fully rebuildable

Recommended Pairings

Consider matching these shocks with Suspension Tools for setup and maintenance. See our DIY damping guide and servicing & tuning options.

Shop eX-PERIENCE + EPA2 (Sport Chassis)

Browse the eX-PERIENCE and EPA2 sport chassis range for durable, adjustable piggyback shocks tuned for versatile riding.

2 Products Found
Tractive eX-PERIENCE Shock BMW R 1200 GS
Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Rear | Sport Chassis | EPA
(SKU: 46BM14-P4846-TR-01)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Sport Chassis
Shock Length Eye to Eye (mm):   410.0
Spring Rate Standard:   150 N/mm
Spring Option -2:   130-205
Spring Option Maximum:   180-205
Spring Option +1:   160-205
Spring Option -1:   140-205
Spring Option +2:   170-205
Manufacturer Note 1:   OEM mudguard (#33548532478) can be mounted
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   12
High-speed Compression Adjuster Position:   12
Spring Preload Setting:   10 (EPA on min position)
Preload Adjustment:   Electro-hydraulic
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   150-205
Stroke Metal to Metal (mm):   91
Type Code:   eX-PERIENCE

$4,360.40
Custom Order
Order Now
Tractive eX-PERIENCE Shock BMW R 1250 GS
Tractive eX-PERIENCE Shock BMW R 1250 GS

Tractive eX-PERIENCE Shock BMW R 1250 GS

Rear | Sport Chassis | EPA
(SKU: 46BM18-P4846-TR-01)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic
Seat Height Change (mm):   Sport Chassis
Shock Length Eye to Eye (mm):   410.0
Spring Rate Standard:   150 N/mm
Spring Option -2:   130-205
Spring Option Maximum:   180-205
Spring Option +1:   160-205
Spring Option -1:   140-205
Spring Option +2:   170-205
Manufacturer Note 1:   OEM mudguard (#33548532478) can be mounted
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   12
High-speed Compression Adjuster Position:   12
Spring Preload Setting:   10 (EPA on min position)
Preload Adjustment:   Electro-hydraulic
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   150-205
Stroke Metal to Metal (mm):   91
Type Code:   eX-PERIENCE

$4,360.40
Custom Order
Order Now

eX-PERIENCE + EPA2 (Sport Chassis)

Same length as BMW's "Sport Chassis" shorter height suspension & electrically actuated spring preload collar. These performance piggyback shocks upgrade the X-Cite range with full damping adjuster options for daily commuting, sporty cruising, tarmac touring and light adventuring. They replace the stock ESA electronically controlled damper assembly, bolting to factory mounts and plugging into the OEM electrical wiring loom with no loss of features or error messages.

Sport-height, plug-and-play piggyback dampers for mixed-use riding

  • Plug-and-play replacement for ESA with electrical compatibility and factory mounts
  • Separate high & low speed compression adjusters plus increased rebound range
  • Available spring rates for varied rider weights, heavy-duty stainless bushes
  • 46mm high-flow main piston, 16mm chrome-moly shaft and cold-forged 6082 aluminium body — fully rebuildable

Recommended Pairings

Consider matching these shocks with Suspension Tools for setup and maintenance. See our DIY damping guide and servicing & tuning options.

Shop eX-PERIENCE + EPA2 (Sport Chassis)

Browse the eX-PERIENCE and EPA2 sport chassis range for durable, adjustable piggyback shocks tuned for versatile riding.
