eX-Perience Electronic Shock Absorbers - Factory 40mm Lowered

Teknik eX-PERIENCE (OEM 40mm Low)

eX-PERIENCE (OEM 40mm Low)

Same length as BMW's "factory lowered" 40mm shorter height suspension. These performance piggyback shocks replace the entire stock ESA assembly plug & play, offering full damping adjustability and rebuildable internals; see our DIY damping tuning guide and servicing & tuning.

Factory 40mm lowered replacement with precision damping

  • Direct plug & play swap for OEM ESA units with no error messages
  • Separate high & low speed compression adjusters plus extended rebound range for precise settings
  • Available spring rates, high flow 46mm main valving piston on an over-sized 16mm chrome-moly shaft
  • Heavy duty stainless steel bushes, cold-forged 6082 aluminium body and fully rebuildable external reservoir
  • Versatile performance for daily commuting, sporty cruising, tarmac touring and light adventuring

Recommended Pairings

Consider matching your shock upgrade with Suspension Tools for setup and maintenance.

Shop eX-PERIENCE (OEM 40mm Low)

Explore eX-PERIENCE shocks and spring options to restore factory lowered height with improved control.

1 Product Found

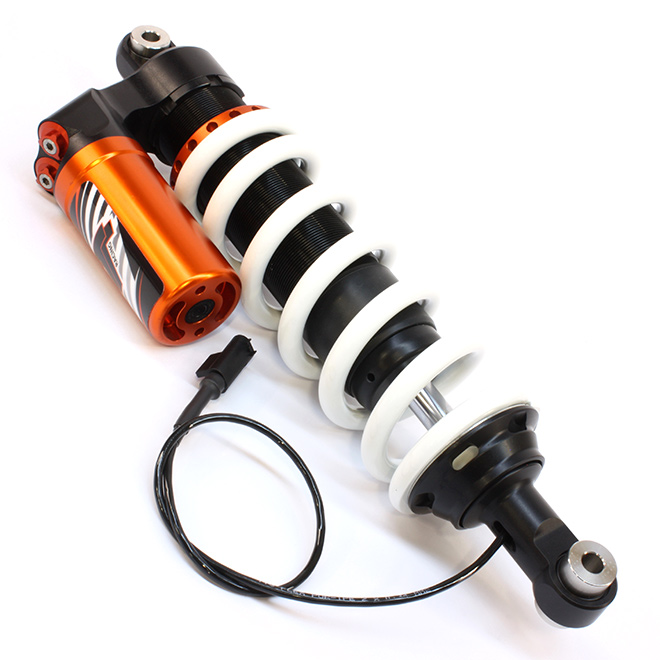

Tractive eX-PERIENCE Shock BMW R 1250 GS Adventure

Tractive eX-PERIENCE Shock BMW R 1250 GS Adventure

Front | Factory lowered
(SKU: 46BM18-P4150-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Factory Lowered -40
Seat Height Change (mm):   Factory Lowered
Shock Length Eye to Eye (mm):   383.0
Spring Rate Standard:   55 N/mm
Spring Option -2:   48-205
Spring Option +1:   60-205
Spring Option -1:   50-205
Spring Option +2:   65-205
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   12
High-speed Compression Adjuster Position:   12
Spring Preload Setting:   14
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   55-205
Stroke Metal to Metal (mm):   89.0
Type Code:   eX-PERIENCE


eX-PERIENCE (OEM 40mm Low)

Same length as BMW's "factory lowered" 40mm shorter height suspension. These performance piggyback shocks replace the entire stock ESA assembly plug & play, offering full damping adjustability and rebuildable internals; see our DIY damping tuning guide and servicing & tuning.

Factory 40mm lowered replacement with precision damping

  • Direct plug & play swap for OEM ESA units with no error messages
  • Separate high & low speed compression adjusters plus extended rebound range for precise settings
  • Available spring rates, high flow 46mm main valving piston on an over-sized 16mm chrome-moly shaft
  • Heavy duty stainless steel bushes, cold-forged 6082 aluminium body and fully rebuildable external reservoir
  • Versatile performance for daily commuting, sporty cruising, tarmac touring and light adventuring
