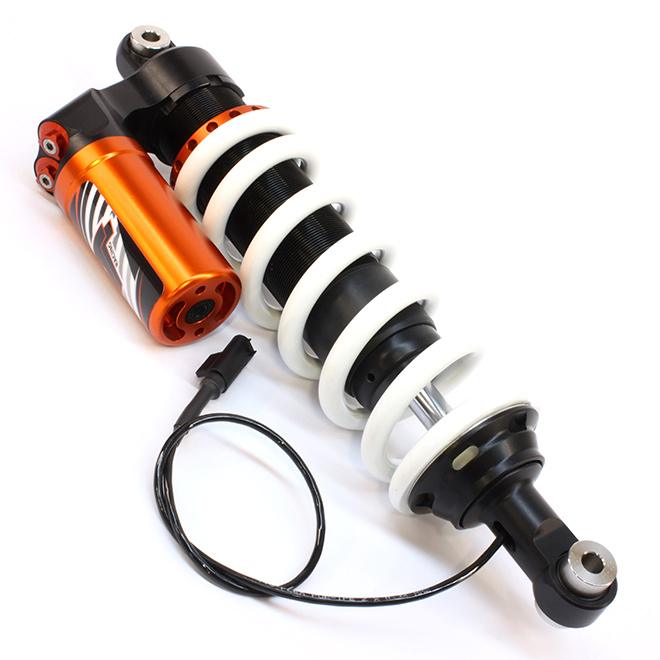

eX-Perience Electronic Shock Absorbers - 25mm Lowered

Teknik eX-PERIENCE (25mm Low)

eX-PERIENCE (25mm Low)

25mm shorter than factory height. These performance piggyback shocks upgrade the basic X-Cite range with full damping adjusters for mixed riding: daily commuting, sporty cruising, tarmac touring and light adventuring. Designed as a complete plug & play replacement for the stock ESA electronically controlled damper assembly, they bolt to factory mounts and plug into the OEM wiring loom without error messages.

Low-height, versatile performance for mixed riding

  • 25mm lower ride height for a sportier stance while retaining usable travel
  • Suitable for daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring
  • Separate precision high & low speed compression adjusters plus increased rebound adjustment range
  • Durable, fully rebuildable design with 46mm main piston, 16mm chrome-moly shaft and cold-forged 6082 aluminium body

Recommended Pairings

Consider matching your upgrade with Suspension Tools and book workshop servicing when needed via our servicing & tuning.

Shop eX-PERIENCE (25mm Low)

Browse eX-PERIENCE 25mm Low shocks with multiple spring rates and premium, rebuildable internals to suit your rider weight and use-case.

2 Products Found
Tractive eX-PERIENCE Shock BMW R 1200 GS

Tractive eX-PERIENCE Shock BMW R 1200 GS

Front | Lowered -25mm
(SKU: 46BM13-P4118-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Lowered -25
Shock Length Eye to Eye (mm):   381.0
Spring Rate Standard:   50 N/mm
Spring Option +1:   55-205
Spring Option -1:   48-205
Spring Option +2:   60-205
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Low-speed Compression Adjuster Position:   13
High-speed Compression Adjuster Position:   13
Spring Preload Setting:   9
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   50-205
Stroke Metal to Metal (mm):   86.0
Type Code:   eX-PERIENCE


Tractive eX-PERIENCE Shock BMW R 1250 GS Adventure

Tractive eX-PERIENCE Shock BMW R 1250 GS Adventure

Front | Lowered -25mm
(SKU: 46BM18-P4140-TR-01)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Lowered -25
Shock Length Eye to Eye (mm):   389.0
Spring Rate Standard:   55 N/mm
Spring Option -2:   48-205
Spring Option +1:   60-205
Spring Option -1:   50-205
Spring Option +2:   65-205
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   10
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   55-205
Stroke Metal to Metal (mm):   100.0
Type Code:   eX-PERIENCE


eX-PERIENCE (25mm Low)

25mm shorter than factory height. These performance piggyback shocks upgrade the basic X-Cite range with full damping adjusters for mixed riding: daily commuting, sporty cruising, tarmac touring and light adventuring. Designed as a complete plug & play replacement for the stock ESA electronically controlled damper assembly, they bolt to factory mounts and plug into the OEM wiring loom without error messages.

Low-height, versatile performance for mixed riding

  • 25mm lower ride height for a sportier stance while retaining usable travel
  • Suitable for daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring
  • Separate precision high & low speed compression adjusters plus increased rebound adjustment range
  • Durable, fully rebuildable design with 46mm main piston, 16mm chrome-moly shaft and cold-forged 6082 aluminium body
