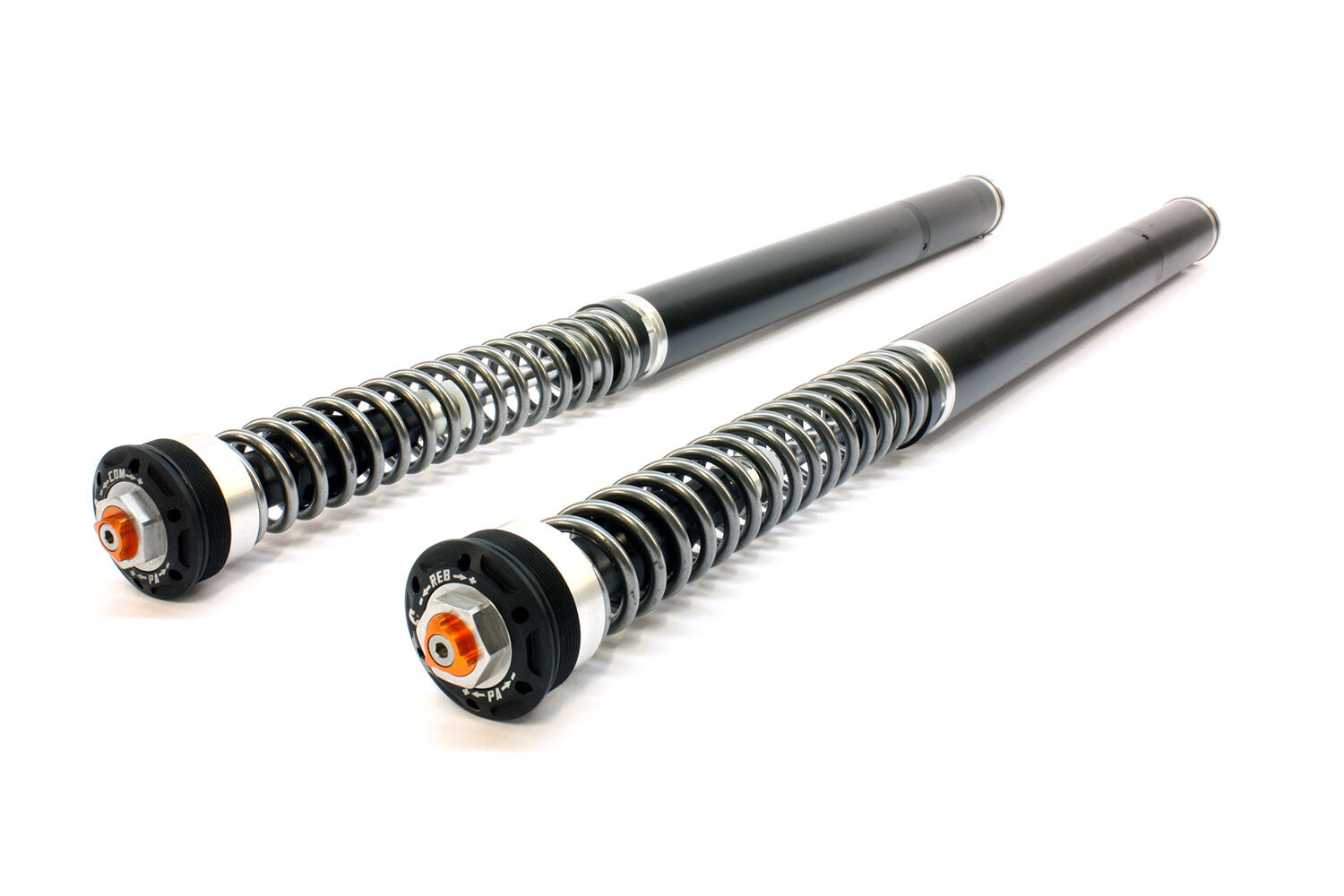

Tractive BMW F 900 GS Fork Cartridge kit X-TREME

Note: Also for models with Enduro Pro package.High performance closed cartridge with adjustable rebound and compression damping. Manual preload adjustment.

These cartridges fit right into the fork legs without modifications to the fork. The cartridges are closed, meaning that the cartridge is like a separate, pressurised shock absorber inside the fork with its own damping oil for optimal handling. The products were originally developed in close cooperation with adventure riders, world travelers and rally riders. The products have proven their value over the years: hugely improved off-road handling while retaining comfort during long travels. This is certainly also due to the huge size of piston used: 35 mm diameter. This size of piston is the largest of all aftermarket suspension providers. Apart from a high oil flow, this piston size allows for a stable, well-controlled damping behaviour. The size of the internal bore also allows to use electronic adjustments. Later on the cartridges have been further developed for use in road racing. Again the cartridge design has proven to be stable and finely adjustable. Every cartridge can be easily opened and serviced. Or the damping can be tuned for the customer's application. Spring rate, spring preload and air chamber are easily modified, there is for every product a range of springs available pending on loading and application. Every cover cap contains a dearation screw to remove an excess of foam and air.

The damping can be easily adjusted with 18 clicks using the cover caps on the top of the fork legs. The adjustments are separate, meaning that the left fork leg is used for compression damping adjustment, and the right fork leg contains the rebound damping adjustment. In both legs the preload can be adjusted over 12 mm.

At the end of the stroke there is an hydraulic end stop. This helps with preventing hard bottoming during large impacts.
  • These cartridges fit right into the fork legs without modifications to the fork.
  • The cartridges are closed, meaning that the cartridge is like a separate, pressurised shock absorber inside the fork with its own damping oil for optimal handling.
  • The products were originally developed in close cooperation with adventure riders, world travelers and rally riders.
  • The products have proven their value over the years: hugely improved off-road handling while retaining comfort during long travels.
  • This is certainly also due to the huge size of piston used: 35 mm diameter.
  • This size of piston is the largest of all aftermarket suspension providers.
  • Apart from a high oil flow, this piston size allows for a stable, well-controlled damping behaviour.
  • The size of the internal bore also allows to use electronic adjustments.
  • Later on the cartridges have been further developed for use in road racing.
  • Again the cartridge design has proven to be stable and finely adjustable.
  • Every cartridge can be easily opened and serviced.
  • Or the damping can be tuned for the customer's application.
  • Spring rate, spring preload and air chamber are easily modified, there is for every product a range of springs available pending on loading and application.
  • Every cover cap contains a dearation screw to remove an excess of foam and air.The damping can be easily adjusted with 18 clicks using the cover caps on the top of the fork legs.
  • The adjustments are separate, meaning that the left fork leg is used for compression damping adjustment, and the right fork leg contains the rebound damping adjustment.
  • In both legs the preload can be adjusted over 12 mm.At the end of the stroke there is an hydraulic end stop.
  • This helps with preventing hard bottoming during large impacts..
  • Brand: BMW
  • Model: F900GS
  • Year Range: 2024 - 2025
  • Position: Front
  • Product Series: TracTive Suspension
  • Damping Adjustment: Advanced Damping Technology
SKU 35BM24-D5355-TR
Model # Active Feb 2025
Barcode # 35BM24D5355TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.900m
Type X-TREME
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Front
Damping Adjustment Type Rebound & Compression
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 870.0
Spring Rate Standard 5.6 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 220
Notes Hydraulic end-stop
Fitted Spring 5.6-390
