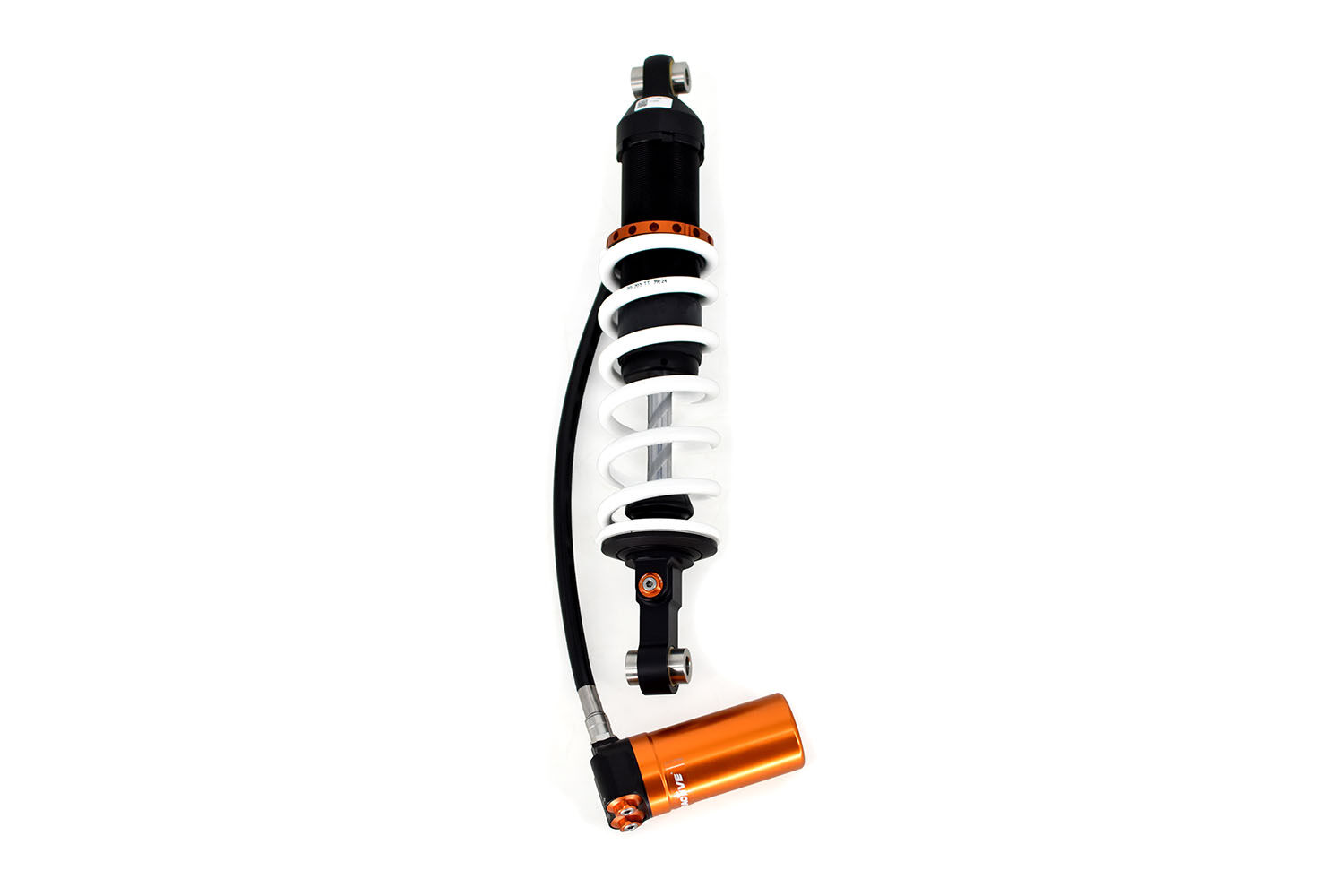

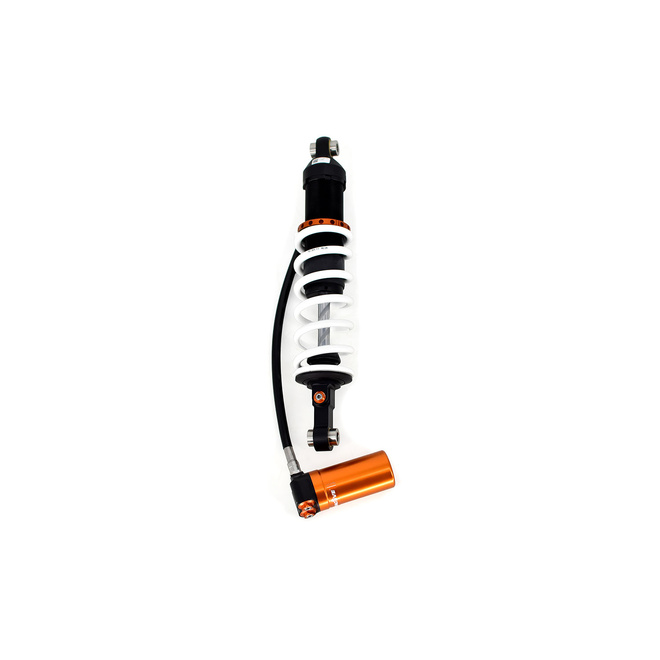

TracTive BMW R 1300 GS Front Shock X-TREME Lowered -25mm – Front Shock – Height: Standard

Transform your BMW R 1300 GS into a precision-handling machine with the TracTive X-TREME. Built for stability, comfort, and control, it replaces factory compromise with race-developed damping and superior feedback.

Why Choose TracTive X-TREME

  • Closed-cartridge damping delivers consistent control and performance.
  • Compression and rebound adjusters allow fine-tuned customisation.
  • Hard-anodised internals enhance durability and resist corrosion.
  • Linear spring characteristics provide balanced grip and predictability.
  • Hand-built in the Netherlands to exacting ISO-certified standards.
  • Completely rebuildable for long-term reliability and value.
  • Proven performance in rally, adventure, and endurance riding worldwide.
  • Backed by Teknik Motorsport’s expertise and Australian support.

“Fitting the TracTive X-TREME changed the way my BMW R 1300 GS rides—more control, more confidence, and unbeatable comfort.”
— Hugo

Why Choose Teknik Motorsport

Teknik Motorsport is Australia’s motorcycle suspension authority and TracTive’s exclusive distributor. Our expert team provides setup, tuning, and after-sales support to help every rider achieve peak performance. Visit Teknik Motorsport for details.

  • This shock absorber uses a damping shim stack specifically developed for its application.
  • The aluminum shock absorber housing creates maximum thermal stability by optimal heat removal.
  • Not only leads this to stable performance but also to a longer lifetime of the shock and its oil.
  • To create the best performance for every model we use high flow pistons, low friction seals, and dedicated shimstacks.
  • We use heavy duty components like microfinished induction hardened quenched&tempered 42CrMo 16mm piston rods, best quality bearings and stainless steel bushings.
  • Every shock can be opened and serviced, or tuned for the customer's application.
  • For all shocks there is a range of springs from softer than standard till harder.This shock is the choice for customers that want to adjust damping between different tracks or want to have optimal damping control.
  • Using the rebound adjuster, the damping is adjusted with approximately 18 clicks.
  • Every clicker adjustment brings a noticeable change in damping level.The main advantage of a damper with an external reservoir is that the shock absorber contains significantly more oil and shows also significantly more cooling surface than a shock absorber without a reservoir.
  • It additionally offers the tuning capabilities to control the compression (ingoing) oil flow.
  • Two separate adjusters control the damping respectivily at low shock absorber speed (slow undulations in the track/road) and at high shock absorber speed (sudden bumps or holes).
  • By using a hose-connection the reservoir and adjusters can be conveniently positioned.
  • The hoses and fittings used in the shock absorbers have a very large internal cross-section, and therefore there is no hydraulic restriction in this construction except at the compression adjusters.
  • The shock absorber is equipped with a so-called PDSII system against bottoming out.
  • It has a 2nd damping piston mounted on top of the main damping piston.
  • At the end of the ingoing shock absorber stroke, this 2nd damping piston enters a cup and creates an extra damping level.
  • This happens only during the ingoing movement and only at high ingoing speeds.
  • It effectivily is a cushion that absorbs the high ingoing energy and prevents a hard bottoming of the shock absorber.
  • This leads to increased comfort and safety.
  • At the same time the bottoming impacts on the motorbike frame are minimised, leading to less bent bolts and damages..
  • Brand: BMW
  • Model: R1300GS
  • Year Range: 2024 - 2025
  • Position: Front
  • Product Series: TracTive Suspension
  • Damping Adjustment: Advanced Damping Technology
SKU 46BM24-T7165-TR
Model # Active Feb 2025
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Type X-TREME (Low -25mm)
