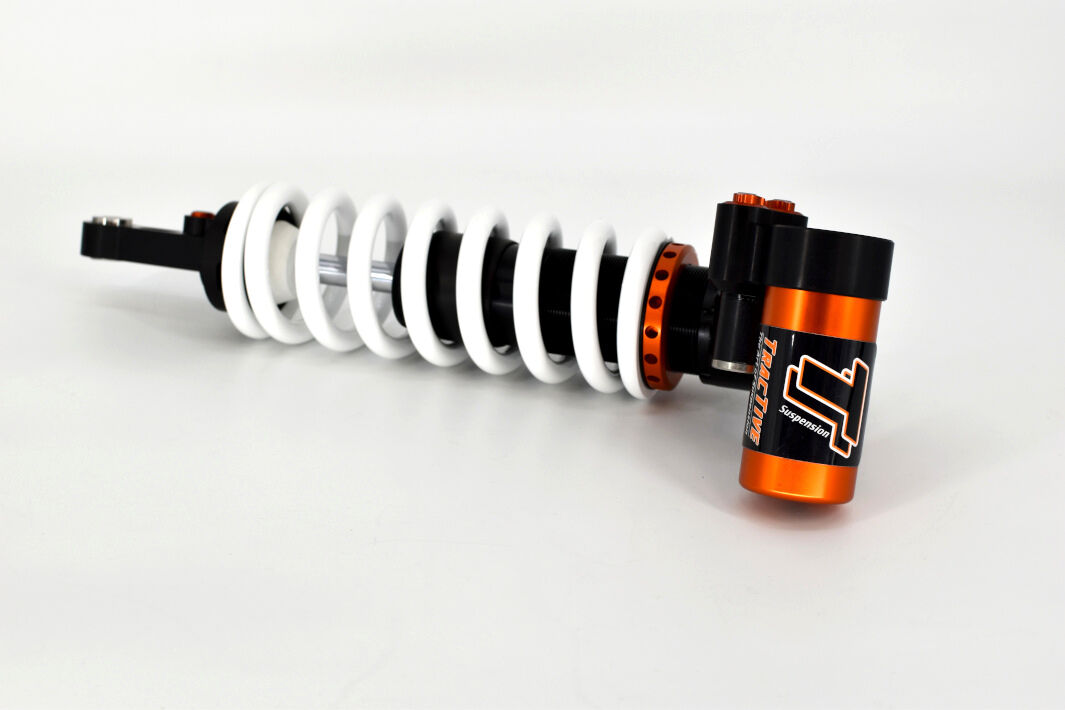

The TracTive X-TREME rear shock for the Husqvarna 701 ENDURO uses a closed, pressurised architecture to keep damping consistent and reduce the risk of cavitation under hard use. It features oil and gas separation via an internal piston rather than an emulsion layout. This model includes a remote reservoir and is supplied with a spring. Based on the configuration, it provides triple damping adjustment.

Design & features

  • Closed, pressurised shock design for consistent damping behaviour.
  • Oil/gas separated with an internal separation piston (not an emulsion shock).
  • Remote reservoir for improved thermal stability during sustained rough conditions.
  • Supplied with a spring.

Tuning Controls

  • Rebound damping adjustment.
  • Compression damping adjustment, including separate high-speed and low-speed compression circuits (triple adjustment).

Base Setup (factory preset)

This shock is delivered with a baseline tune intended to be adjusted for rider weight, load, and terrain. Set sag first, then refine rebound and compression in small steps to match traction and support needs.

Who is this for?

  • Riders who want broad adjustability to tune the 701 ENDURO for mixed use, including extended rough-road riding.
  • Owners looking for a pressurised, separated-gas shock layout for more stable performance as conditions heat up.

Before You Install

  • Confirm there is adequate clearance and a suitable mounting location for the remote reservoir hose and canister.
  • Plan to set rider sag after installation before changing damping adjustments.

Serviceability/Lifecycle

As a pressurised shock with a separated gas chamber and remote reservoir, normal maintenance involves periodic oil and seal service to keep performance consistent. Service intervals depend on operating conditions and contamination exposure.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46KT19-T9136-TR-01
Model # 46KT19-T9136-TR-01
Barcode # 46KT19T9136TR01
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Seat Height Change (mm) Lowered -25
Shock Length Eye to Eye (mm) 388.0
Spring Rate Standard 75 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 90.0
Notes PDSII anti-bottoming
Fitted Spring 75-235
