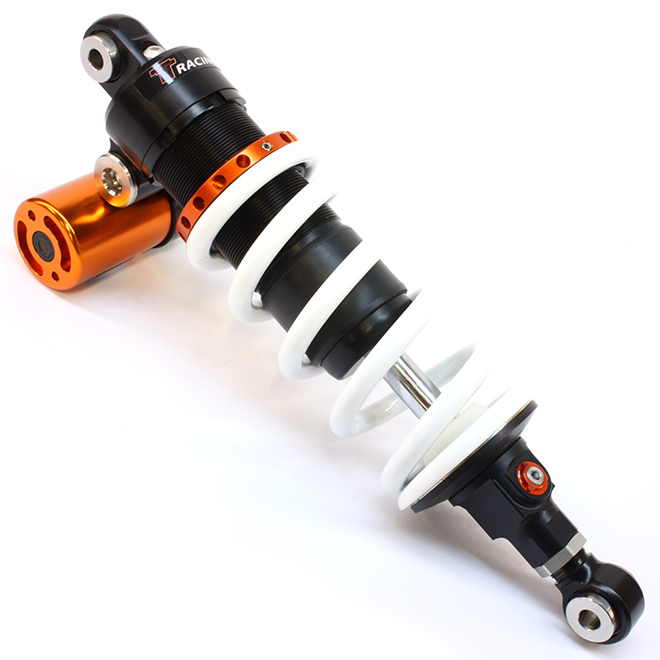

The TracTive X-CELLENT rear shock for Ducati Panigale (2016–2019) is a closed, pressurised shock built around a sealed cartridge architecture for consistent damping. It uses a remote reservoir with a hose and includes a spring. Damping is externally adjustable with separate rebound and compression controls.

Design & features

  • Closed, pressurised shock design to help reduce damping fade and improve consistency in demanding use
  • Sealed cartridge architecture
  • Remote reservoir (hose-mounted) to manage oil and gas separation
  • Supplied with spring

Tuning Controls

  • Rebound damping adjustment
  • Compression damping adjustment

Base Setup (factory preset)

This shock is typically supplied with a baseline setup from the builder. Final settings should be confirmed on the bike based on rider weight, use, and tyre choice.

Before You Install

  • Confirm fitment for Ducati Panigale model and year range (2016–2019) before installation
  • Ensure there is suitable clearance and routing for the hose-mounted reservoir
  • Have installation performed by a qualified technician with the correct tools and procedures

Serviceability/Lifecycle

As a pressurised, sealed-cartridge shock, proper servicing requires the correct equipment and procedures. Periodic inspection and servicing helps maintain damping consistency over time.

Is It Right For You?

This model suits Panigale owners who want external compression and rebound tuning and the packaging benefits of a hose-mounted remote reservoir, while keeping a conventional (non-electronic) setup.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46DU16-T8204-TR
Model # Discontinued
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-CELLENT
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Rebound
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 314.0 +4/-4
Type Code X-CELLENT
Stroke Metal to Metal (mm) 63.0
