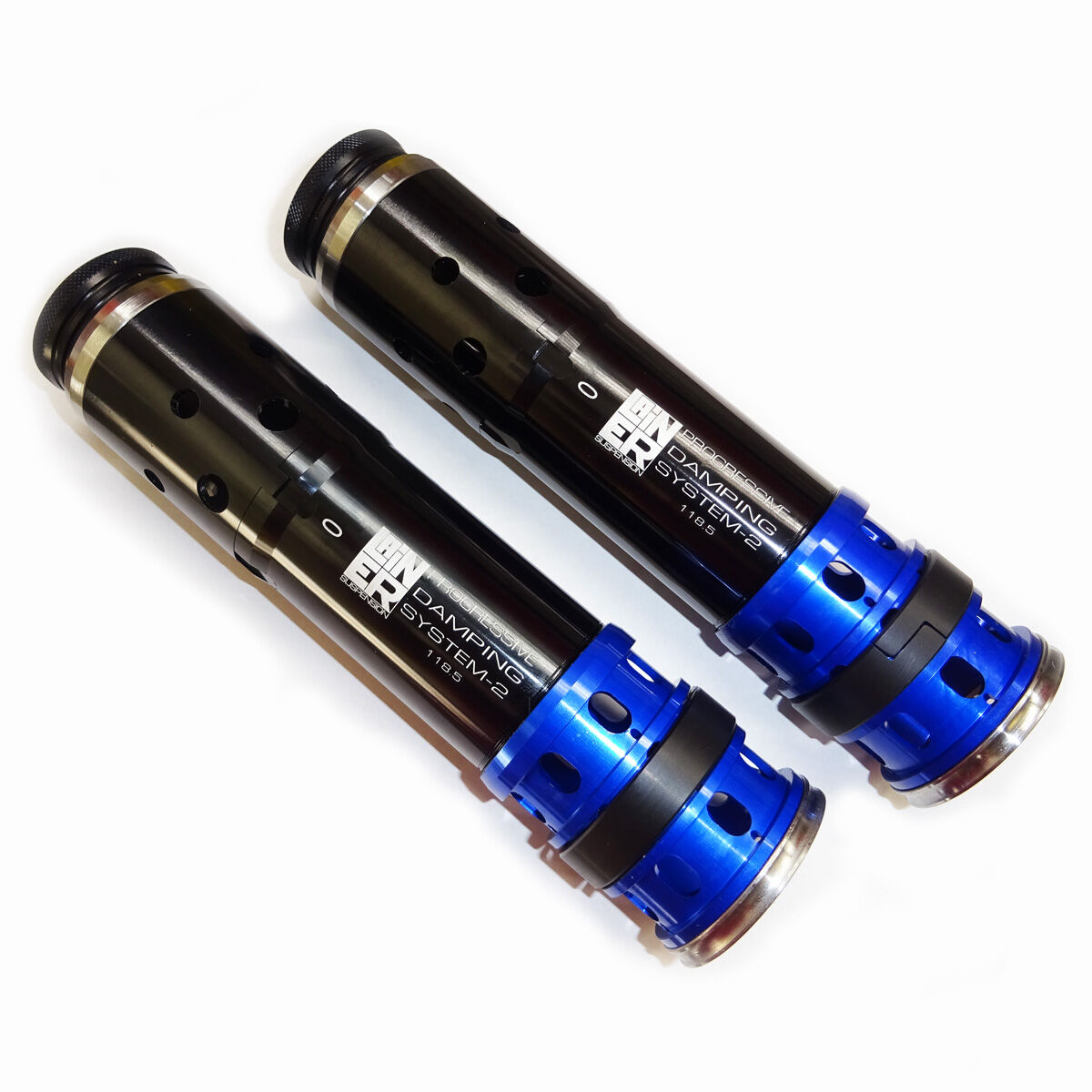

Lainer PDS-2 Progressive Damping System – KYB 48mm Forks

Lainer PDS-2 Progressive Damping System – KYB 48mm Forks

The Lainer PDS-2 Progressive Damping System adds an additional level of hydraulic control to selected KYB 48mm forks, helping increase support through the stroke without relying on an overly firm conventional damping setup.

Designed for KYB 48mm forks using a 24mm piston and 498mm fork springs, the system controls oil movement outside the cartridge. This gives the fork additional resistance as it moves deeper into the travel, helping reduce excessive dive and improve bottoming control under harder impacts.

More Support Where It Matters

Rather than simply increasing compression damping across the entire stroke, the PDS-2 provides a progressive effect. This allows the fork to retain compliance through general trail chatter and smaller impacts while building additional hydraulic support as load and fork travel increase.

The upper section incorporates four compression-flow settings, while the lower control ring provides five selectable positions for altering oil transfer through the fork. Spring preload adjustment is also integrated into the assembly.

Progressive hydraulic support for KYB 48mm forks
Designed for 498mm fork springs
Suits KYB applications using a 24mm piston
Four-position upper compression-flow adjustment
Five-position lower damping adjustment
Increased mid-stroke and end-of-stroke support
Helps improve resistance to fork bottoming
Integrated spring preload adjustment
Made in Italy by Lainer Suspension Racing

Applications

Suitable for selected models including:

Beta RR 2025-2026
Beta RR Racing 2023-2024
Yamaha YZ125 / YZ250 2022-2026
Fantic XX / XE 125 and 250 2022-2026
Triumph TF 250-X 2025-2026
Triumph TF 450 RC Edition 2025-2026
Stark Varg
Yamaha YZ250F 2014-2018
Yamaha YZ450F 2014-2017
Suzuki RM-Z250 2019-2025

The PDS-2 is a useful upgrade for riders looking for better chassis support under braking, larger impacts and aggressive riding, while maintaining a more compliant fork setup through the earlier part of the travel.

SKU	PDS_SYS2-118.5KYB-ADP
Brand	Lainer Suspension
Shipping Weight	0.2000kg
Shipping Size	0.100 x 0.050 x 0.050m
