eX-PERIENCE + EPA2 (OEM 25mm Low)

Same length as BMW's "factory lowered" 25mm shorter height suspension with an electrically actuated spring preload collar. These performance piggyback shocks are an upgrade over the basic X-Cite shock absorber range, offering full damping adjustability for daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring.

Factory 25mm lowering with full, plug‑and‑play ESA replacement

Direct plug & play replacement for the stock ESA electronically controlled damper assembly with no instrument-cluster errors.
Complete damping control: separate precision high & low speed compression adjusters plus extended rebound range.
Available multiple spring rates, high flow 46mm main valving piston on a 16mm chrome-moly shaft and heavy duty stainless bushes.
Cold-forged 6082 aluminium shock body, external reservoir and fully rebuildable design for easy servicing & tuning.

Recommended Pairings

Consider matching your upgrade with Suspension Tools for setup and maintenance.

Shop eX-PERIENCE + EPA2 (OEM 25mm Low)

Browse the range to find the correct rate and fitment for your bike.

1 Product Found

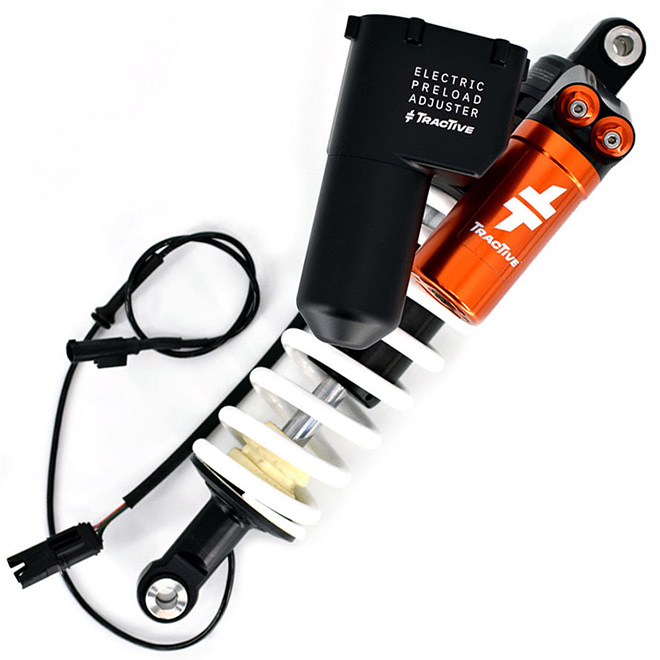

Tractive eX-PERIENCE Shock BMW R 1250 GS

Rear | Factory lowered | EPA
(SKU: 46BM18-P4817-TR)

Position (Front or Rear): Rear

Damping Adjustment Type: Electronic & Compression High + Low Speed

Shock Options - Hydraulic Preload Adjuster: Electro-hydraulic

Seat Height Change (mm): Factory Lowered

Shock Length Eye to Eye (mm): 394.0

Spring Rate Standard: 150 N/mm

Manufacturer Note 2: Side and/or center stand might be too long

Spring Option -2: 130-205

Spring Option +1: 160-205

Spring Option -1: 140-205

Spring Option +2: 170-205

Manufacturer Note 1: OEM mudguard (#33548532478) can be mounted

Damping System: Separated oil/gas with reservoir

Rebound Adjuster Position: Cable exit (0 deg)

Low-speed Compression Adjuster Position: 13

High-speed Compression Adjuster Position: 13

Spring Preload Setting: 10 (EPA on min position)

Preload Adjustment: Electro-hydraulic

Spring Type: Linear, included

Piston Diameter (mm): 46

Suspension Unit Type: Shock

Fitted Spring: 150-205

Stroke Metal to Metal (mm): 75

Type Code: eX-PERIENCE

$4,360.40
Custom Order

Order Now

eX-PERIENCE + EPA2 (OEM 25mm Low)

Factory 25mm lowering with full, plug‑and‑play ESA replacement

Direct plug & play replacement for the stock ESA electronically controlled damper assembly with no instrument-cluster errors.
Complete damping control: separate precision high & low speed compression adjusters plus extended rebound range.
Available multiple spring rates, high flow 46mm main valving piston on a 16mm chrome-moly shaft and heavy duty stainless bushes.
Cold-forged 6082 aluminium shock body, external reservoir and fully rebuildable design for easy servicing & tuning.

Recommended Pairings

Consider matching your upgrade with Suspension Tools for setup and maintenance.

Shop eX-PERIENCE + EPA2 (OEM 25mm Low)

Browse the range to find the correct rate and fitment for your bike.
