eX-Perience Electronic Shock Absorbers - Factory 25mm Lowered

Teknik eX-PERIENCE (OEM 25mm Low)

eX-PERIENCE (OEM 25mm Low)

Same length as BMW's "factory lowered" 25mm shorter height suspension. These performance piggyback shocks replace the entire stock ESA electronically controlled damper assembly with a plug & play solution that keeps factory functionality without dash errors.

Direct 25mm factory-low BMW replacement for versatile riding

  • Daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring
  • Plug & play fitment to factory mounts and OEM wiring loom, retaining electronic features
  • Separate high & low speed compression adjusters plus increased rebound range for precise damping
  • Multiple spring rates, 46mm main piston, 16mm chrome-moly shaft, stainless steel bushes and fully rebuildable cold-forged 6082 aluminium body

These performance piggyback shocks are an upgrade over the basic X-Cite shock absorber range, with all damping adjuster options. Precision high & low speed compression adjusters and increased rebound response make on-bike tuning simple, and the external reservoir and serviceable design allow easy servicing & tuning.

Recommended Pairings

Consider matching your upgrade with Suspension Tools for balanced setup and maintenance.

Shop eX-PERIENCE (OEM 25mm Low)

Browse the range to find the correct spring rate and damping setup for your bike.

1 Product Found

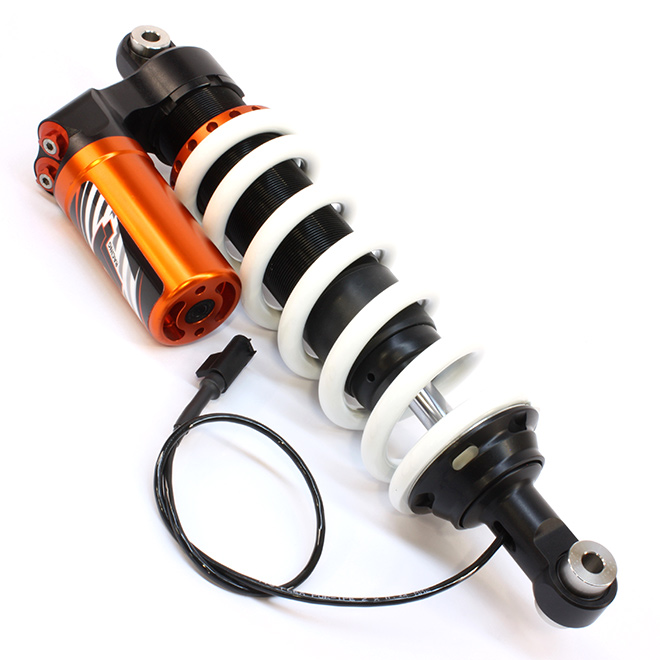

Tractive eX-PERIENCE Shock BMW R 1250 GS

Tractive eX-PERIENCE Shock BMW R 1250 GS

Front | Factory lowered
(SKU: 46BM18-P4118-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Factory Lowered -25
Seat Height Change (mm):   Factory Lowered
Shock Length Eye to Eye (mm):   381.0
Spring Rate Standard:   50 N/mm
Spring Option +1:   55-205
Spring Option -1:   48-205
Spring Option +2:   60-205
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   10
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   50-205
Stroke Metal to Metal (mm):   92.0
Type Code:   eX-PERIENCE


eX-PERIENCE (OEM 25mm Low)

Same length as BMW's "factory lowered" 25mm shorter height suspension. These performance piggyback shocks replace the entire stock ESA electronically controlled damper assembly with a plug & play solution that keeps factory functionality without dash errors.

Direct 25mm factory-low BMW replacement for versatile riding

  • Daily commuting, sporty cruising, tarmac touring, dirt roads and light adventuring
  • Plug & play fitment to factory mounts and OEM wiring loom, retaining electronic features
  • Separate high & low speed compression adjusters plus increased rebound range for precise damping
  • Multiple spring rates, 46mm main piston, 16mm chrome-moly shaft, stainless steel bushes and fully rebuildable cold-forged 6082 aluminium body

These performance piggyback shocks are an upgrade over the basic X-Cite shock absorber range, with all damping adjuster options. Precision high & low speed compression adjusters and increased rebound response make on-bike tuning simple, and the external reservoir and serviceable design allow easy servicing & tuning.
