eX-Perience Electronic Shock Absorbers - 40mm Lowered

Teknik eX-PERIENCE (40mm Low)

eX-PERIENCE (40mm Low)

40mm shorter than factory height. These performance piggyback shocks upgrade the basic X-Cite shock absorber range with full damping adjuster options for daily commuting, sporty cruising, tarmac touring and light adventuring. They replace the entire stock ESA electronically controlled damper assembly as a plug & play solution with no loss of advanced features or error messages.

Lowered 40mm ride for mixed road use

  • Versatile jack-of-all-trades performance for road, touring and light off-road
  • Separate precision high & low speed compression adjusters plus increased rebound range
  • Available with multiple spring rates; 46mm main valving piston and 16mm chrome-moly shaft for durability
  • Fully rebuildable with heavy duty stainless steel bushes and cold-forged 6082 aluminium shock body; external reservoir for easy servicing

Recommended Pairings

Consider matching your upgrade with Suspension Tools for setup and maintenance. See our DIY Damping Tuning Guide and workshop servicing options at Servicing & Tuning.

Shop eX-PERIENCE (40mm Low)

Browse the eX-PERIENCE 40mm Low range to find the right piggyback shock and spring rate for your ride.

1 Product Found

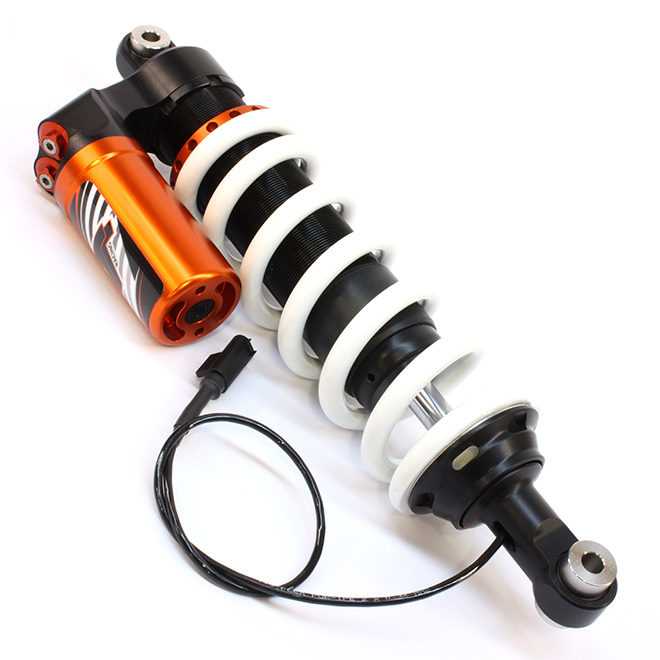

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Tractive eX-PERIENCE Shock BMW R 1200 GS Adventure

Front | Lowered -40mm
(SKU: 46BM14-P4150-TR)
Position (Front or Rear):   Front
Damping Adjustment Type:   Electronic and Manual
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Seat Height Change (mm):   Lowered -40
Shock Length Eye to Eye (mm):   384.0
Spring Rate Standard:   55 N/mm
Spring Option -2:   48-205
Spring Option +1:   60-205
Spring Option -1:   50-205
Spring Option +2:   65-205
Manufacturer Note 1:   Side and/or center stand might be too long
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   13
High-speed Compression Adjuster Position:   13
Spring Preload Setting:   14
Preload Adjustment:   Mechanical
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   55-205
Stroke Metal to Metal (mm):   90.0
Type Code:   eX-PERIENCE


eX-PERIENCE (40mm Low)

40mm shorter than factory height. These performance piggyback shocks upgrade the basic X-Cite shock absorber range with full damping adjuster options for daily commuting, sporty cruising, tarmac touring and light adventuring. They replace the entire stock ESA electronically controlled damper assembly as a plug & play solution with no loss of advanced features or error messages.

Lowered 40mm ride for mixed road use

  • Versatile jack-of-all-trades performance for road, touring and light off-road
  • Separate precision high & low speed compression adjusters plus increased rebound range
  • Available with multiple spring rates; 46mm main valving piston and 16mm chrome-moly shaft for durability
  • Fully rebuildable with heavy duty stainless steel bushes and cold-forged 6082 aluminium shock body; external reservoir for easy servicing
