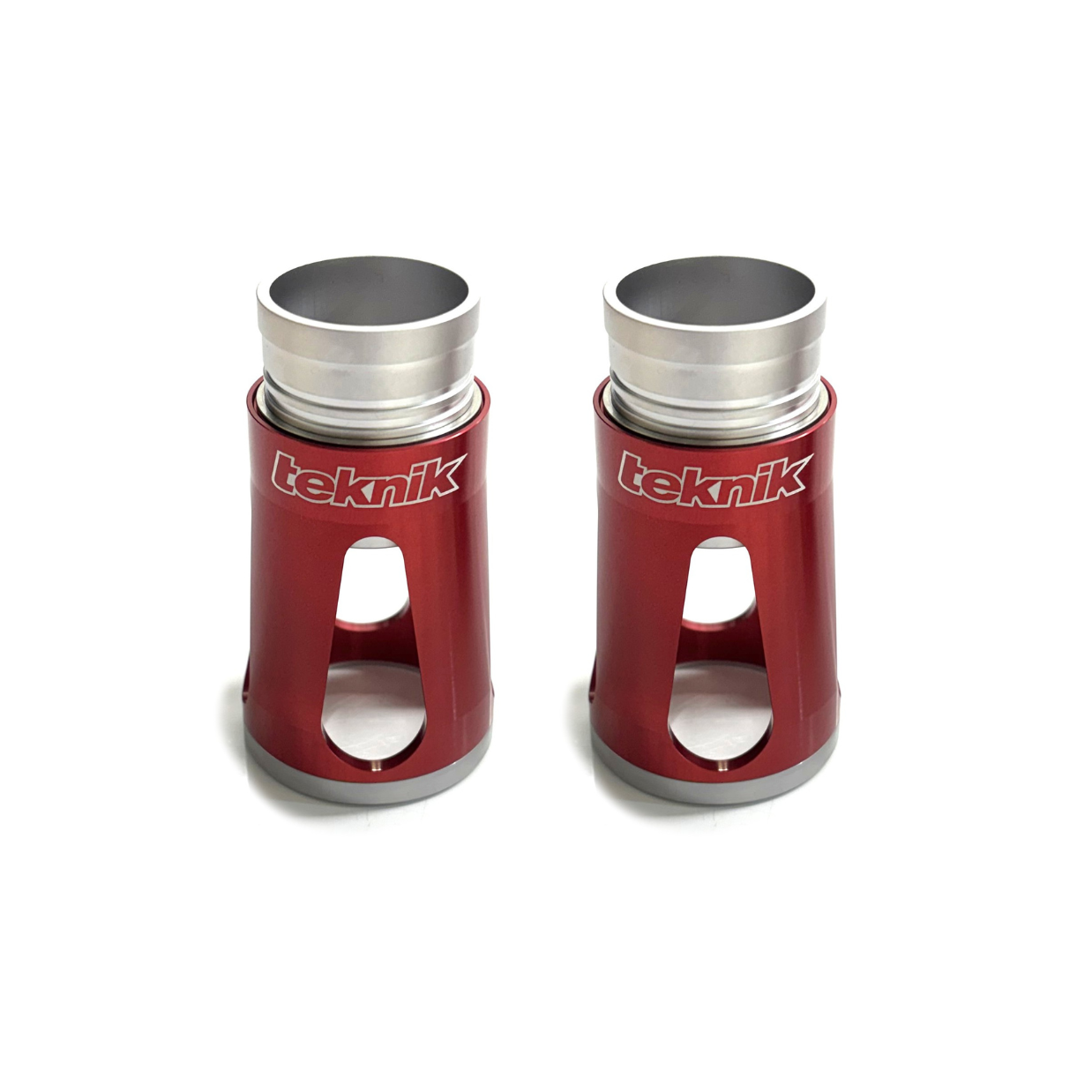

KYB AOS Adjustable Spring Perch Set

The Teknik KYB AOS Adjustable Spring Perch Set is an OEM+ replacement for the original KYB spring seat, replacing the standard plastic component with a stronger and more versatile assembly.

Manufactured from aerospace-grade aluminium and 410 stainless steel, the Teknik design provides a durable replacement for damaged or failed original spring seats while adding useful spring preload and ride-height adjustment.

Adjustable spring position

The adjustable spring perch allows the spring position to be changed without machining additional locating grooves into the cartridge. Adjustment ranges from approximately +9mm preload to -11.5mm, allowing the fork setup to be altered to suit the rider and application.

The negative adjustment range also provides a straightforward option for reducing front ride height without permanently modifying the cartridge.

OEM+ construction

  • Aerospace-grade aluminium construction
  • 410 stainless steel components

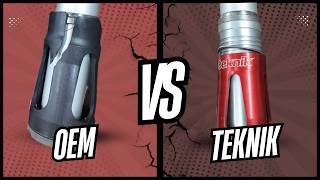

  • Replaces the original plastic KYB spring seat assembly
  • Approximately +9mm to -11.5mm spring position adjustment
  • Allows preload changes without machining additional cartridge grooves
  • Can be used to reduce front ride height
  • Supplied as a pair for both fork legs

Designed as a direct replacement and upgrade for compatible KYB AOS fork cartridges, the Teknik spring perch set combines improved construction with significantly greater setup flexibility.

SKU 30-130-50
Brand Teknik Motorsport
Shipping Weight 0.1000kg
Shipping Size 0.045 x 0.086 x 0.045m
