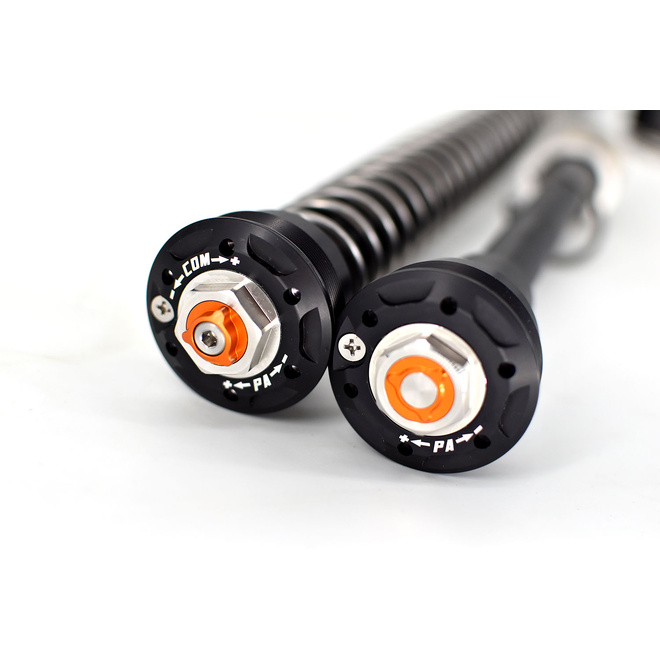

The Tractive X-CITE Fork Cartridge kit for the Honda CRF300 L/R replaces the internal damping parts inside the fork with a closed, pressurised cartridge design. This architecture helps keep damping behaviour more consistent by reducing oil aeration and improving control over repeated impacts. Installation retains the stock fork outer tubes while changing the internal damping system.
Design & features
- Closed, pressurised cartridge construction to help reduce cavitation and maintain damping consistency
- Cartridge kit format intended to fit inside the existing fork legs
- Engineered for the Honda CRF300 L/R application
Tuning Controls
- Rebound damping adjustment
Who is this for?
- Riders who want more controlled fork behaviour for mixed on-road and off-road use
- Owners looking for a more tuneable setup with external rebound adjustment
Before You Install
- Confirm model fitment for Honda CRF300 L/R and your bike’s year/spec
- Installation requires fork disassembly and correct oil fill procedures
- Plan for a baseline setup after installation to suit rider weight and typical riding conditions
Serviceability/Lifecycle
- Cartridge-based design intended to be serviceable as part of routine suspension maintenance
- Regular servicing helps keep damping performance consistent over time
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
 When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 35HO21-R2318-TR |
| Model # | 35HO21-R2318-TR |
| Barcode # | 35HO21R2318TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.900m |
| Unit Of Measure | Set |
| Type | X-CITE |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Front |
| Damping Adjustment Type | Compression |
| Seat Height Change (mm) | Lowered -40 |
| Shock Length Eye to Eye (mm) | 860 (ASP 279) |
| Spring Rate Standard | 3.6 N/mm |
| Type Code | X-CITE |
| Stroke Metal to Metal (mm) | 209 |
| Notes | Hydraulic end-stop |
| Fitted Spring | 3.6-390 + 3.6-435 |
