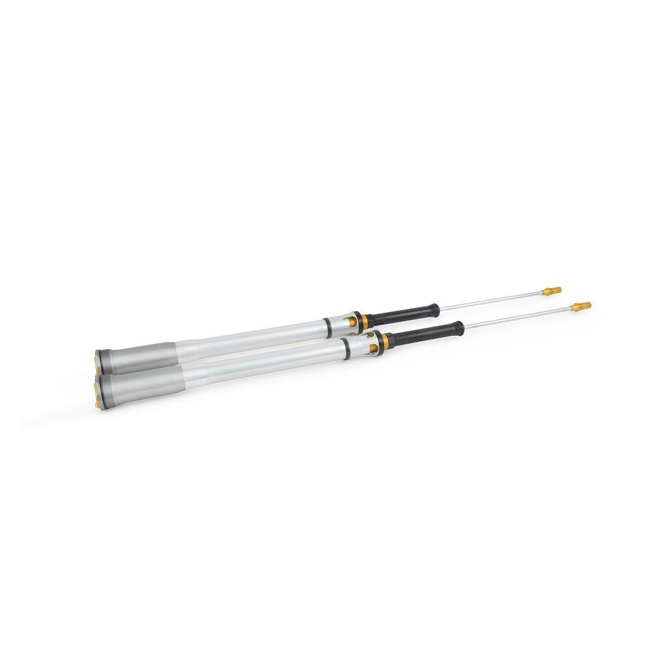

The Ohlins TTX Cartridge Kit FCX 0202 is a front fork cartridge system designed to improve damping control and front-end feel. It focuses on delivering a more composed response under braking and through turns, with clear feedback at the handlebars. Built with Ohlins internal components, it’s intended to provide consistent fork performance across changing conditions.

Ohlins | Made to race, perfected to ride

  • TTX cartridge kit format aimed at improving damping control and front-end communication
  • Designed for fitment across Honda CRF 250R/450R, Suzuki RM-Z450, and Kawasaki KX 450 models as listed

Who this kit is for

  • Riders chasing stronger front-end confidence under braking and through mid-corner
  • Those who want more precise damping characteristics with practical adjustability
  • Owners looking to refine front suspension feel without changing the entire fork assembly

Shock design & features

  • Cartridge system engineered to support a composed, communicative front suspension feel
  • Premium internal components intended to help maintain consistent damping performance

Tuning controls

  • Separate compression and rebound adjustment to support targeted tuning
  • Adjustment access designed to make fine-tuning straightforward

Before you install

  • Confirm exact motorcycle model and year compatibility before purchase
  • Professional installation is recommended to ensure correct assembly and setup

****  see the resources tab for fitting instructions and spring rate guide*******

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FCX0202
Model # T22DR1C1
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
Spring Rate No Spring/s Supplied
Type Code T22DR1C1
Fork Length (mm) 950.0
Stroke Metal to Metal (mm) 299.0
Product Family TTX 22
Notes 08431- spring series *Replaces FCX 202-21*
Fitted Spring Sold separately. See notes.
Rec. Ohlins Oil 01330-
