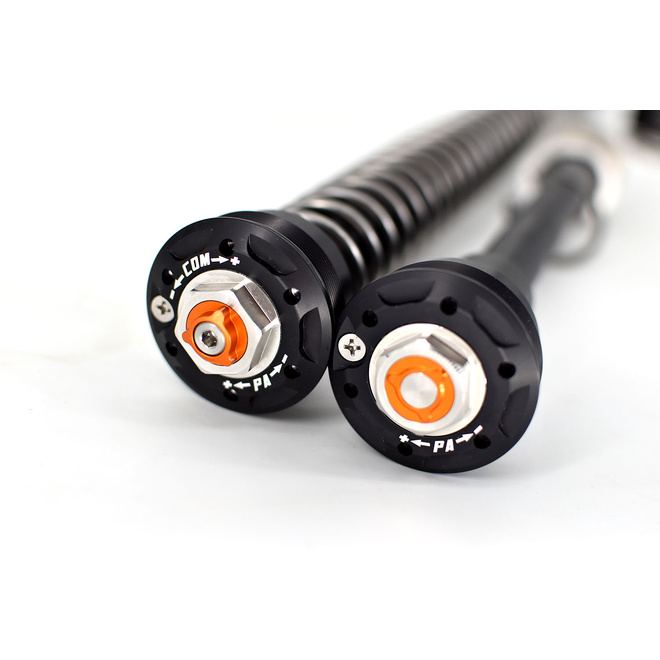

The Tractive X-CITE fork cartridge kit for the Honda CRF300 L/Rally replaces the fork internals with sealed, closed and pressurised cartridge units. This architecture helps keep damping behaviour consistent by reducing oil aeration under demanding use. Rebound adjustment is provided on the cartridge.
Design & features
- Standard height. As this kit has firmer than stock springs, the CRF300 does before 30mm taller than stock.
- Sealed, closed and pressurised fork cartridge design
- Cartridge-based damping unit intended to replace OEM internals
- Built as a matched kit for Honda CRF300 L/Rally fitment
Tuning Controls
- Rebound damping adjustment
- No other adjustments are indicated in the provided product data
Base Setup (factory preset)
After installation, start from the supplied baseline and fine-tune rebound to suit your load, tyres and conditions.
Before You Install
- Confirm compatibility with your exact CRF300 L/Rally model and year before purchase
- Installation requires fork disassembly; use appropriate tools and procedures
- Plan fresh fork oil and standard wear items as required during assembly
Serviceability/Lifecycle
As a sealed cartridge system, servicing should be carried out by a suspension specialist familiar with pressurised cartridge assemblies. Service intervals and parts are not specified in the provided product data.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 35HO21-R2317-TR |
| Model # | 35HO21-R2317-TR |
| Barcode # | 35HO21R2317TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.900m |
| Unit Of Measure | Set |
| Type | X-CITE |
| Format | Front |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Front |
| Damping Adjustment Type | Compression |
| Seat Height Change (mm) | Standard Height |
| Spring Rate Standard | 3.6 N/mm |
| Manufacturer Note 2 | Higher seat height (due to firmer spring rate) |
| Spring Option +1 | 3.9-435 |
| Air Chamber - Street | 140 |
| Compression Adjuster Position | 10 |
| Cartridge Length (mm) | 900.0 |
| Spring Option +2 | 4.2-435 |
| Manufacturer Note 1 | Fork oil included |
| Damping Feature | Hydraulic end-stop |
| Damping System | Emulsion oil/air |
| Spring Preload Setting | 15 +12/-0 |
| Preload Adjustment | Mechanical |
| Spring Type | Linear + top out, included |
| Piston Diameter (mm) | 35 |
| Suspension Unit Type | Cartridge kit |
| Fitted Spring | 3.6-435 |
| Fitted Spring | 3,6-435 |
| Notes | Hydraulic end-stop |
| Stroke Metal to Metal (mm) | 250 |
| Type Code | X-CITE |
