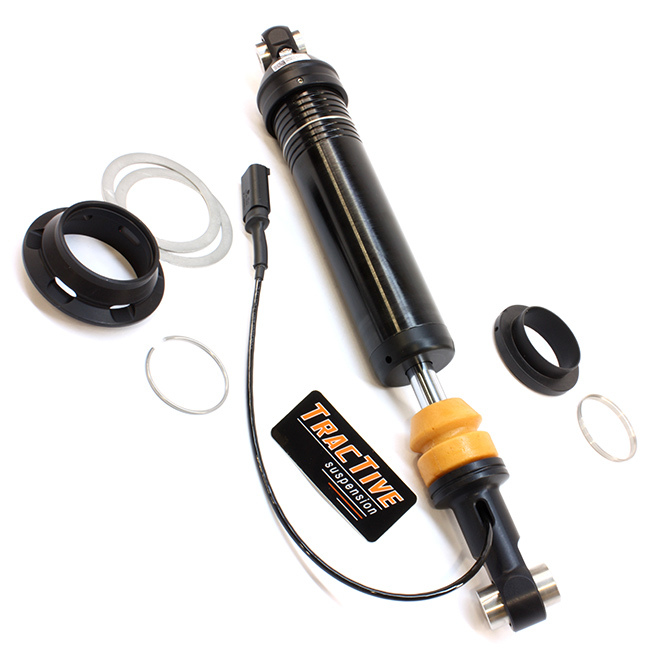

The TracTive X-CHANGE ESA1 Front Shock Upgrade for the BMW R1200GS is a closed, pressurised shock built around a sealed cartridge design to deliver consistent damping and reduced fade in demanding conditions. This version is configured for electronic control (ESA1) and is designed with a -25 mm lowering compared with standard height.

Design & features

  • Closed, pressurised construction for stable damping and improved resistance to cavitation
  • Sealed cartridge architecture for controlled oil flow and repeatable performance
  • Electronic ESA1 integration for on-bike damping control via the motorcycle’s system

Tuning Controls

  • Electronic damping adjustment (ESA1)

Base Setup (factory preset)

This shock is supplied with an internal baseline setup intended to suit the application, with ESA1 providing the rider-selectable electronic damping modes.

Before You Install

  • Confirm the -25 mm lowering suits your clearance, stand length and suspension balance requirements
  • Check compatibility with your BMW R1200GS ESA1 system before fitment
  • Installation should be completed by a qualified technician familiar with electronically controlled suspension

Serviceability/Lifecycle

As a sealed, pressurised unit, the shock is designed for controlled internal operation and consistent performance over time. Routine inspection for leaks, damaged wiring/connectors and mounting wear is recommended.

Is It Right For You?

Choose this option if you want to retain ESA1 electronic functionality while moving to a pressurised, sealed-cartridge shock design, and you specifically want a lowered front ride height.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM04-S1061-TR
Model # 46BM04-S1061-TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type eX-CHANGE
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front
Damping Adjustment Type Electronic
Seat Height Change (mm) Lowered -25
Type Code X-CHANGE ESA
