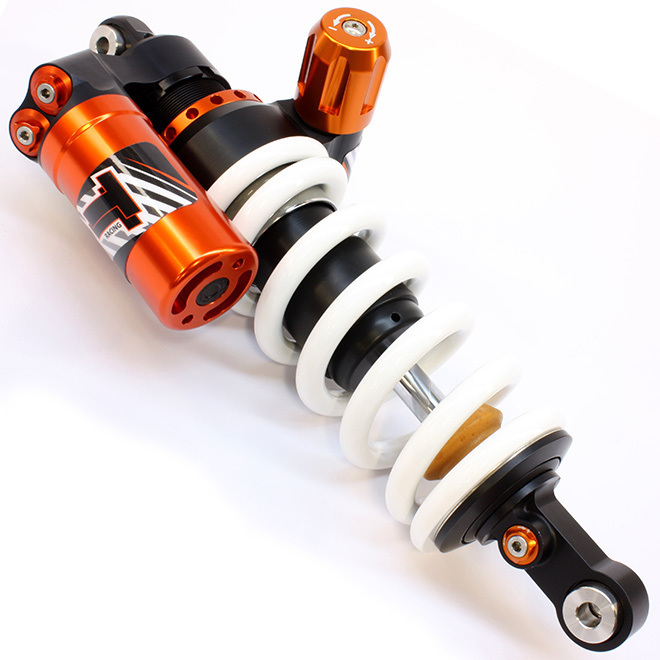

The TracTive X-PERIENCE rear shock for the BMW R nineT Urban G/S (2016–2020) uses a closed, pressurised damping system with separated oil and gas to maintain consistent damping and reduce aeration. This is a long-travel configuration with a +40 mm ride-height change, suited to riders wanting more ground clearance and suspension stroke. It includes an integrated hydraulic preload adjuster to make preload changes easier without tools.

Design & features

  • Closed, pressurised rear shock with a separation piston (oil/gas separated) for consistent damping.
  • Long-travel setup with a +40 mm height change.
  • Hydraulic preload adjuster (HPA) for convenient preload changes.
  • Remote reservoir (hose-mounted) to support stable damping under varied use.

Tuning Controls

  • Triple-adjustable damping: rebound adjustment plus compression adjustment circuits.
  • Hydraulic preload adjustment via the included HPA.

Who is this for?

  • BMW R nineT Urban G/S riders (2016–2020) who want a long-travel rear shock with a +40 mm height change.
  • Riders who regularly change load (solo, luggage, passenger) and want quick preload adjustment via HPA.
  • Owners who want broad tuning range through independent damping adjustments.

Before You Install

  • Confirm the +40 mm height change suits your intended geometry, stand lengths, and clearance requirements.
  • Set preload for rider load first, then fine-tune rebound and compression to match road conditions and riding style.
  • Ensure fitment is for BMW R nineT Urban G/S model years 2016–2020 as listed.

Serviceability/Lifecycle

  • Pressurised, oil/gas-separated architecture is designed to help maintain damping consistency over time.
  • Periodic servicing helps keep performance consistent as oil and seals age with use.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM16-T4342-TR-02
Model # Discontinued
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-PERIENCE + HPA
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Raised +40
Shock Length Eye to Eye (mm) 386.0
Type Code X-PERIENCE
Stroke Metal to Metal (mm) 67.0
