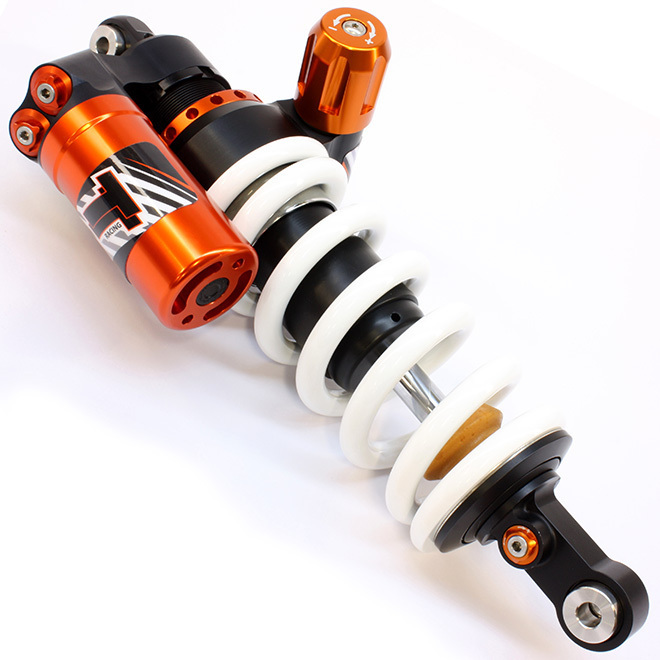

The TracTive X-PERIENCE + HPA rear shock for the BMW R nineT Urban G/S 40 Years GS (2021–2024) is a closed, pressurised shock built around a sealed cartridge design to maintain consistent damping and reduce aeration. This long-travel version increases ride height by +40mm, which can change steering geometry and stand requirements. It is fitted with a remote reservoir and includes hydraulic preload adjustment for convenient load tuning.

Design & features

  • Closed, pressurised construction with a sealed cartridge for stable damping behaviour
  • Remote reservoir with oil/gas separation piston to help manage heat and reduce fade during sustained use
  • Hydraulic preload adjuster (HPA) to set sag and compensate for passenger or luggage without tools
  • Long-travel configuration with a stated +40mm height increase

Tuning Controls

  • Triple-adjustable damping: rebound damping adjustment plus separate high- and low-speed compression damping adjustment
  • Hydraulic preload adjustment (HPA)

Who is this for?

  • Riders who want added ground clearance and travel for mixed-surface riding
  • Owners who vary loads (solo, passenger, luggage) and want quick preload changes via HPA
  • Those who prefer broad damping control with separate high/low-speed compression tuning

Before You Install

  • Plan for the +40mm ride-height change, including checking side-stand/centre-stand suitability and clearances
  • Confirm space and routing for the remote reservoir and hydraulic preload adjuster
  • After installation, verify sag and re-check fasteners after initial use

Is It Right For You?

Choose this shock if you specifically want the long-travel +40mm setup and value having hydraulic preload adjustment alongside fully independent damping controls. If you do not want a height increase or do not need triple damping adjustment, a different configuration may be more suitable.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM21-T4342-TR-02
Model # Discontinued
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-PERIENCE + HPA
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Raised +40
Shock Length Eye to Eye (mm) 386.0
Type Code X-PERIENCE
Stroke Metal to Metal (mm) 67.0
