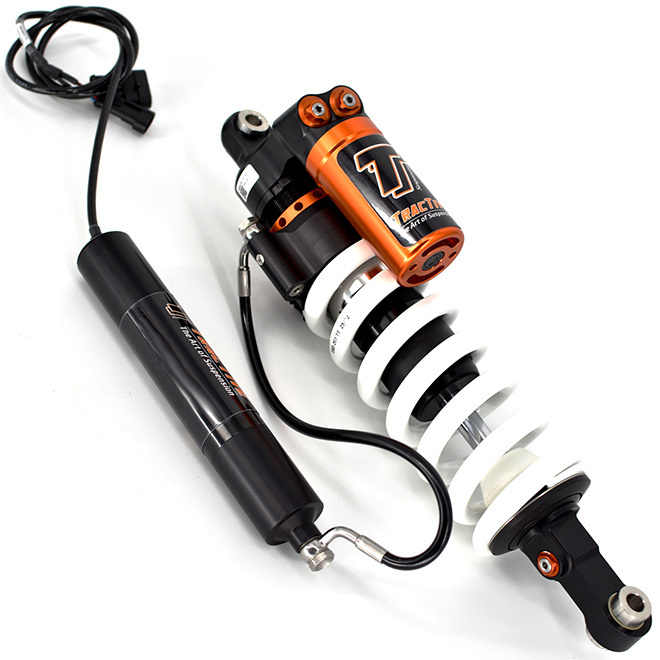

The TracTive X-TREME + EPA Rear for the BMW R1250GS (2018–2024) is a closed, pressurised rear shock built around a sealed cartridge design for consistent damping and reduced oil aeration. This version is supplied in a factory low configuration that reduces ride height by 25 mm. It uses an external reservoir for improved oil/gas management under sustained use.

Design & features

  • Closed, pressurised shock with a sealed cartridge architecture to help maintain stable damping performance.
  • External reservoir to separate oil and gas, supporting more consistent damping during long or demanding rides.
  • Factory low (-25 mm) configuration to reduce ride height.

Tuning Controls

  • Triple-adjustable damping, providing separate tuning control for rebound and compression circuits.
  • Electronic preload adjustment (EPA) for convenient load compensation when switching between solo, luggage, and two-up use.

Base Setup (factory preset)

Delivered with a factory baseline setup intended to suit the listed model fitment. Final performance depends on rider weight, typical load, tyres, and riding conditions, so fine-tuning may be beneficial after installation.

Before You Install

  • Confirm fitment for BMW R1250GS model years 2018–2024 and note the factory low (-25 mm) ride height change.
  • Electronic preload adjustment requires correct routing and secure mounting of associated components during installation.

Serviceability/Lifecycle

This unit is designed as a serviceable, performance-focused shock. Periodic servicing helps keep damping consistent over time, particularly when used in harsh conditions or high kilometre applications.

Is It Right For You?

Choose this option if you want a lower ride height combined with broad damping adjustment range and the convenience of electronic preload adjustment for changing loads and conditions.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM18-T5717-TR
Model # Discontinued
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME + EPA
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Electro-hydraulic
Seat Height Change (mm) Factory Lowered -25
Shock Length Eye to Eye (mm) 394.0
Type Code X-TREME
Stroke Metal to Metal (mm) 79.0
