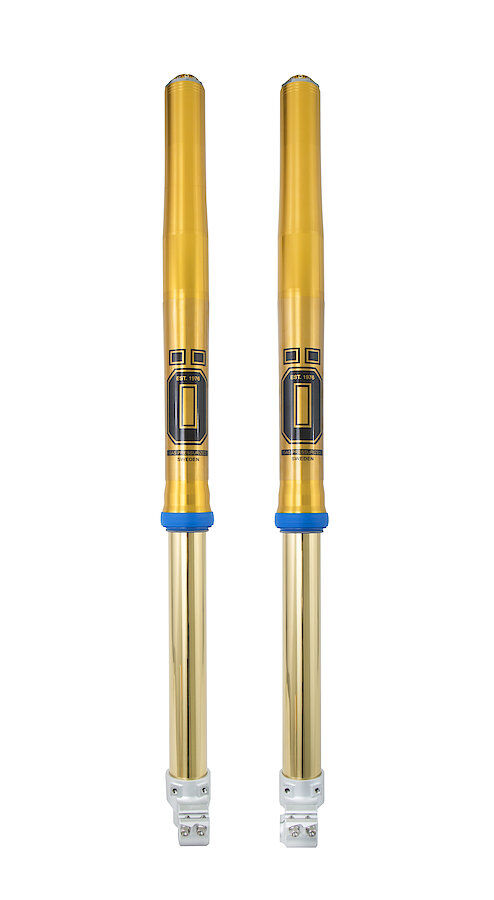

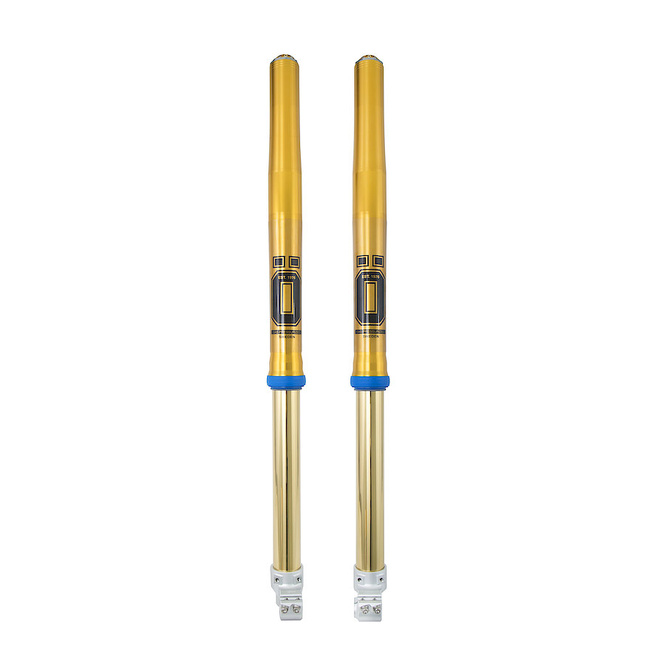

The Ohlins FGHO1690 STX 22 Fork Cartridge Kit is designed to improve front suspension performance and control on the Honda CRF 150R. It focuses on delivering more consistent damping behaviour for clearer feel through the front end. With independent adjustment for compression and rebound, it supports a more tailored setup to suit riding conditions and preferences.

Ohlins | Made to race, perfected to ride

Built around Ohlins cartridge technology, this kit is intended to sharpen feedback and help maintain stability when the pace increases. The result is a front end that stays composed and communicative.

Who this kit is for

  • Honda CRF 150R riders wanting improved front-end feel and control
  • Riders looking to refine braking stability and mid-corner confidence
  • Those who value adjustable damping to suit different riding needs

Shock design & features

  • STX 22 fork cartridge kit for the front suspension
  • Premium internal components aimed at consistent damping performance and durability
  • Improved feedback through the front end for more predictable handling

Tuning controls

  • Separate compression adjustment
  • Separate rebound adjustment

Is it right for you?

If you want a more controlled and informative front end with the ability to fine-tune damping, this cartridge kit suits that goal. It is a good match for riders chasing improved stability under braking and better feel through corners.

Before you install

This is a front fork cartridge kit intended for fitment to the Honda CRF 150R. Ensure the installation is carried out correctly for proper function, and confirm all parts supplied are accounted for before starting.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FGHO1690
Model # STX Cartridge kit MX
Barcode # FGHO1690
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
Spring Rate No Spring/s Supplied
Type Code T22DR1C1
Stroke Metal to Metal (mm) 268.0
Product Family STX 22
Notes 08785- series springs
