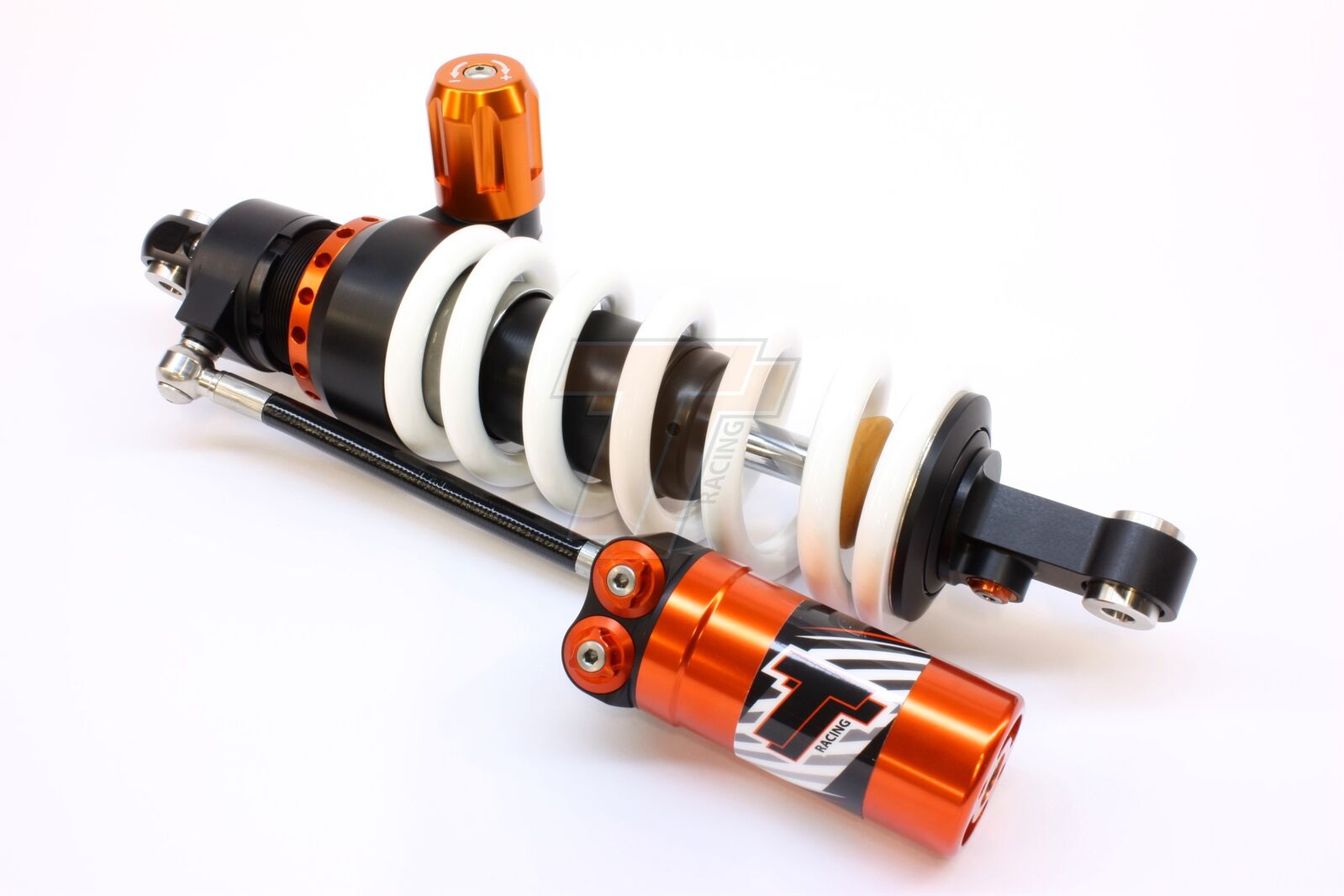

The Tractive X-PERIENCE Shock for the Suzuki DL1000 V-Strom uses a closed, pressurised shock architecture with a separated oil/gas design to support consistent damping on long-distance and mixed-surface riding. This model includes a remote reservoir and is built around a 46 mm shock body platform. Damping is externally adjustable with independent compression and rebound controls to help tailor feel to load, tyres and road conditions.

Who is this for?

  • Riders using their DL1000 V-Strom for touring, commuting, and weekend rides who want more control and consistency as conditions change.
  • Owners who carry luggage or a passenger and want damping that can be tuned to suit different loads.
  • Anyone who prefers a serviceable shock designed for ongoing use rather than a fit-and-forget consumable.

Design & features

  • Closed, pressurised shock design with oil/gas separation via an internal separation piston for stable damping behaviour.
  • Remote reservoir (hose-mounted) to manage damping performance under sustained use.
  • 46 mm shock body platform.

Tuning Controls

  • Rebound damping adjustment.
  • Compression damping adjustment.

Before You Install

  • Confirm fitment for your exact DL1000 V-Strom model and year range before installation.
  • Set sag and baseline adjusters after installation, then fine-tune compression and rebound to suit your usual load and riding conditions.
  • Installation should be completed by a competent technician with appropriate tools and workshop procedures.

Serviceability/Lifecycle

  • Designed as a rebuildable shock, supporting periodic servicing to keep damping performance consistent over time.
  • Closed, pressurised construction helps reduce aeration and maintain predictable behaviour through extended use.

Need Help Choosing?

  • If you share how you ride (solo/two-up, luggage, typical roads, and pace), we can help suggest a sensible baseline setup and tuning approach for this shock’s compression and rebound adjustments.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46SU14-T6305-TR
Model # 46SU14-T6305-TR
Barcode # 46SU14T6305TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-PERIENCE
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 346.0
Spring Rate Standard 95 N/mm
Type Code X-PERIENCE
Stroke Metal to Metal (mm) 87.0
Fitted Spring 95-180
