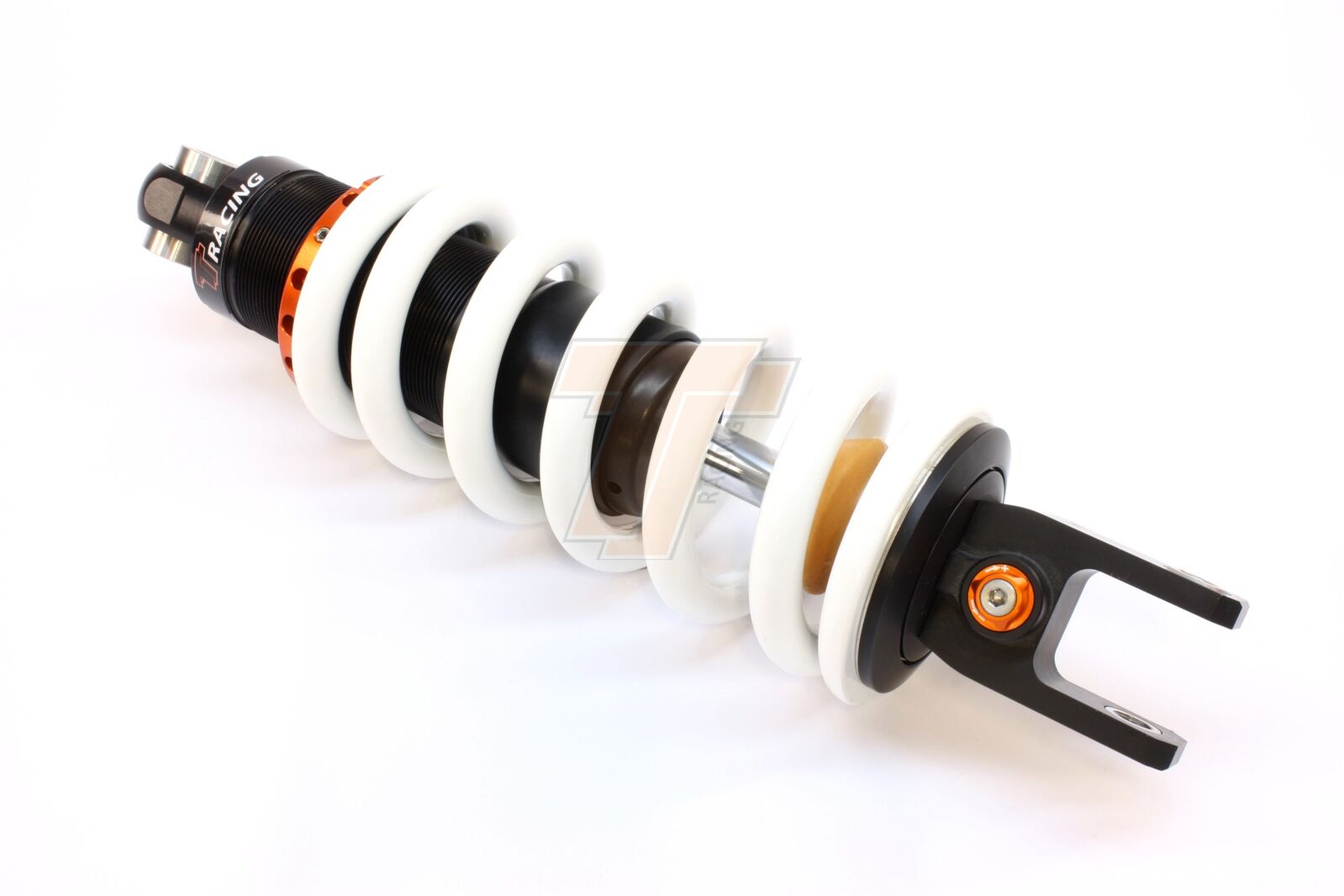

The TracTive X-CITE shock for the Suzuki DR650 SE is a closed, pressurised monotube design with a separated oil and gas chamber to keep damping consistent as conditions change. It uses an internal sealed cartridge architecture for stable control and reduced foaming compared with open, non-pressurised layouts. This unit is built around straightforward external adjustability to suit mixed on-road and off-road use.
Design & features
- Closed, pressurised shock with oil/gas separation via an internal piston for consistent damping behaviour.
- Monotube construction with a sealed damping cartridge architecture.
- Steel spring supplied.
Tuning Controls
- Rebound damping adjustment.
Base Setup (factory preset)
- Delivered with a baseline setting from TracTive intended as a starting point for setup.
- Final setup should be confirmed to rider load and intended use.
Who is this for?
- DR650 SE riders who want a quality, pressurised replacement shock with external rebound adjustment.
- Owners who value consistent damping across varied terrain and temperatures.
Before You Install
- Confirm model fitment for your DR650 SE and check for clearance around the shock body and spring.
- Set rider sag and then fine-tune rebound based on ride feedback.
Serviceability/Lifecycle
- Pressurised, separated-gas shocks are designed to be maintained to keep performance consistent over time.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46SU96-R3115-TR |
| Model # | 46SU96-R3115-TR |
| Barcode # | 46SU96R3115TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-CITE |
If your Motorcycle is listed below, this product will suit:
- SUZUKI DR650SE 1997
- SUZUKI DR650SE 1998
- SUZUKI DR650SE 1999
- SUZUKI DR650SE 2000
- SUZUKI DR650SE 2001
- SUZUKI DR650SE 2002
- SUZUKI DR650SE 2003
- SUZUKI DR650SE 2004
- SUZUKI DR650SE 2005
- SUZUKI DR650SE 2006
- SUZUKI DR650SE 2007
- SUZUKI DR650SE 2008
- SUZUKI DR650SE 2009
- SUZUKI DR650SE 2010
- SUZUKI DR650SE 2011
- SUZUKI DR650SE 2012
- SUZUKI DR650SE 2013
- SUZUKI DR650SE 2014
- SUZUKI DR650SE 2015
- SUZUKI DR650SE 2016
- SUZUKI DR650SE 2017
- SUZUKI DR650SE 2018
- SUZUKI DR650SE 2019
- SUZUKI DR650SE 2020
- SUZUKI DR650SE 2021
- SUZUKI DR650SE 2022
| Colour | White |
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 455.0 |
| Spring Rate Standard | 70 N/mm |
| Spring Large ID (mm) | 59 |
| Spring Small ID (mm) | 59 |
| Type Code | X-CITE |
| Stroke Metal to Metal (mm) | 126.0 |
| Fitted Spring | 75-235 |
