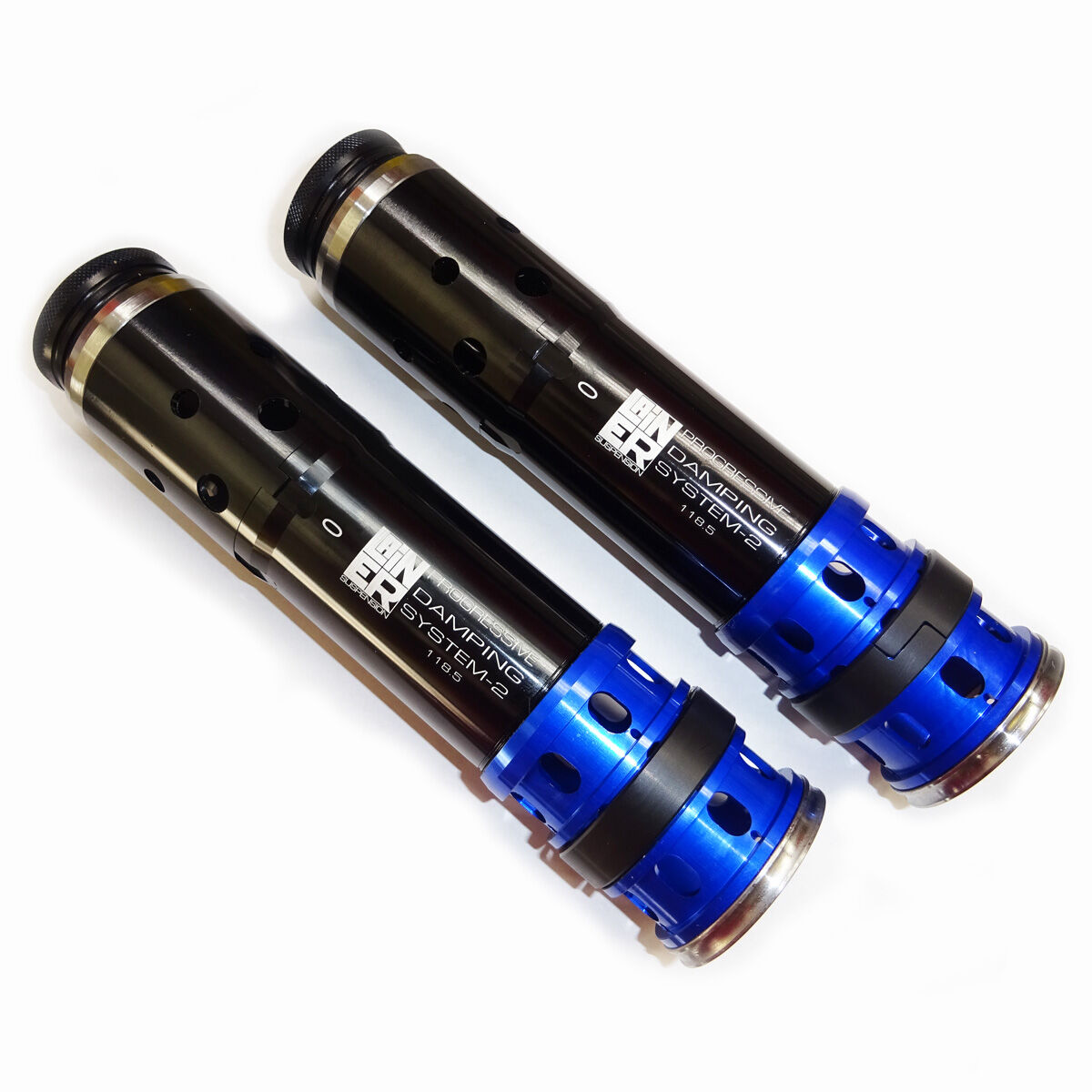

Lainer PDS-2 Progressive Damping System – KYB 48mm Forks

The Lainer Suspension PDS-2 Progressive Damping System is designed to improve bottoming resistance and end-of-stroke support in KYB 48mm forks without requiring an excessively firm base suspension setting.

Unlike a conventional cartridge valving change, the PDS-2 manages oil flow outside the fork cartridge, providing an additional hydraulic control system that becomes increasingly influential as the fork moves through its travel. This allows the main fork damping to remain compliant through smaller bumps and general riding while providing additional support deeper in the stroke.

Adjustable Progressive Damping

The PDS-2 incorporates two separate adjustment systems. The upper valve provides four compression-flow positions, while the lower valve features a five-position adjustment ring to regulate oil transfer through the fork.

Adjusting the lower valve changes the level of hydraulic resistance, particularly toward the end of the stroke.

  • Designed for KYB 48mm forks using 455mm fork springs

  • Progressive hydraulic control outside the cartridge

  • Four-position upper compression valve adjustment

  • Five-position lower progressive damping adjustment

  • Improves end-of-stroke support and bottoming resistance

  • Integrated spring preload adjustment

  • Supplied as a pair with nylon spring spacers

  • Designed and manufactured in Italy by Lainer Suspension Racing

Fitment

Suitable for selected KYB 48mm fork applications including Beta RR Racing, Yamaha YZ/YZ-F and WR450F, Honda CRF250/450 and Kawasaki KLX450 models.

  • BETA RR Racing 2020-2022 (KYB Fork)
  • YZ 125 2006-2021
  • YZ 250 2006-2013 / 2018-2021
  • YZF 250 2008-2013
  • YZF 450 2006-2009
  • WR 450F 2019-2022
  • CRF 250 2010-2014
  • CRF 450 2009-2012
  • KLX 450 2008

Always confirm fork specification and spring length before installation.

The PDS-2 is particularly suited to riders wanting greater control through large impacts and the final portion of fork travel, while retaining a more compliant general damping setup.

SKU PDS_SYS2-118.5KYB-ADP43
Brand Lainer Suspension
Shipping Weight 0.2000kg
Shipping Size 0.100 x 0.050 x 0.050m
