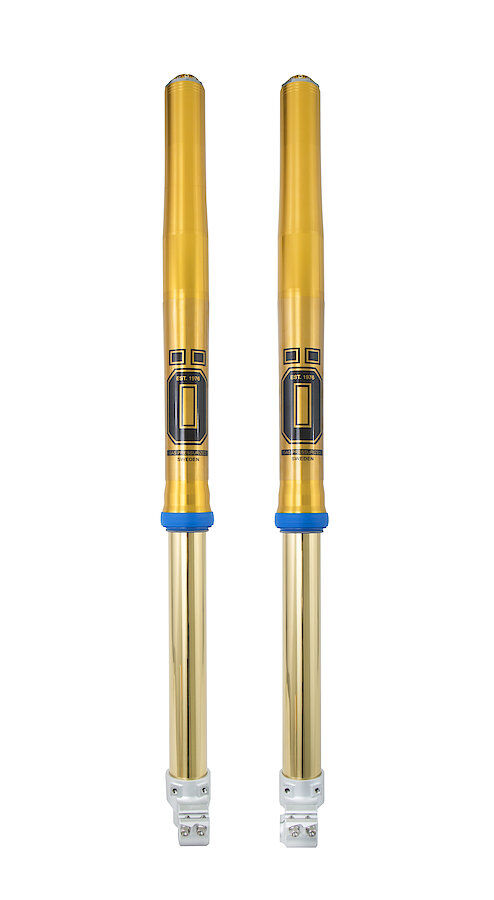

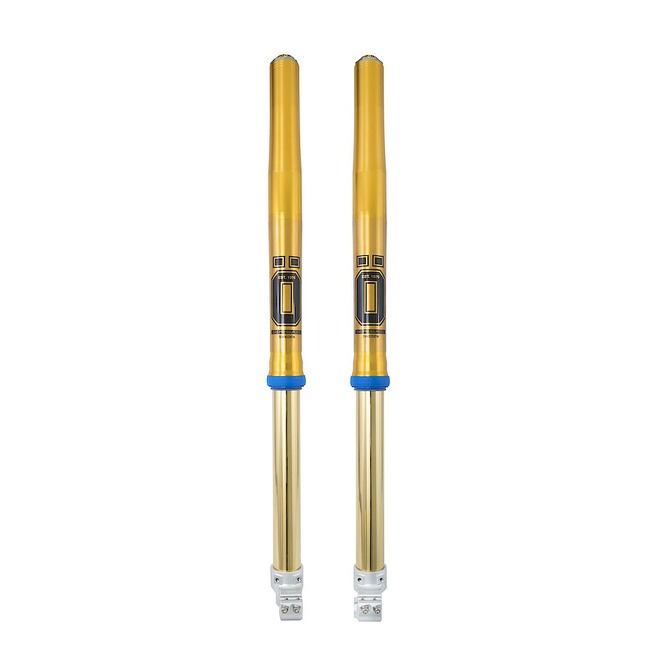

The Ohlins FGHO1694 TTX 22 fork cartridge kit is designed to improve front-end control on the Honda CRF 450R. Built around Ohlins cartridge damping technology, it targets more consistent feel through braking and corner entry. This unit provides external adjustment to help match the fork response to rider preference and conditions.

Ohlins | Made to race, perfected to ride

Ohlins suspension units are developed with a focus on predictable damping response and repeatable adjustability. The TTX 22 cartridge format is intended to deliver clear feedback at the front contact patch. It suits riders looking for a more composed and communicative fork action.

Shock design & features

  • TTX 22 front fork cartridge unit for the Honda CRF 450R
  • Designed to enhance braking stability and mid-corner feel through controlled damping
  • Premium internal components for consistent performance and durability

Tuning controls

  • Separate compression adjustment
  • Separate rebound adjustment

Is it right for you?

This cartridge kit is aimed at riders who want improved front-end feedback and a wider, more precise tuning window than a standard setup. If you value stability under braking and a controlled fork that can be tailored to conditions, it is a strong match. If you prefer a set-and-forget approach with minimal adjustment, a simpler fork configuration may be more suitable.

Before you install

This is a fork cartridge unit intended to be fitted into the front forks of the listed model. Installation requires correct assembly and setup of the fork internals; professional installation is recommended to ensure proper function and adjustment access.

Need help choosing?

If you are unsure whether the FGHO1694 suits your riding and goals, have your bike details and current fork setup on hand. We can help confirm application and guide an initial adjustment direction based on how you ride.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FGHO1694
Model # TTX Cartridge kit
Barcode # FGHO1694
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Front cartridge
Spring Rate No Spring/s Supplied
Type Code T22DR1C1
Stroke Metal to Metal (mm) 303.0
Product Family TTX 22
Notes 08765-series springs
Fitted Spring Sold separately, see notes.
Rec. Ohlins Oil 01330-
