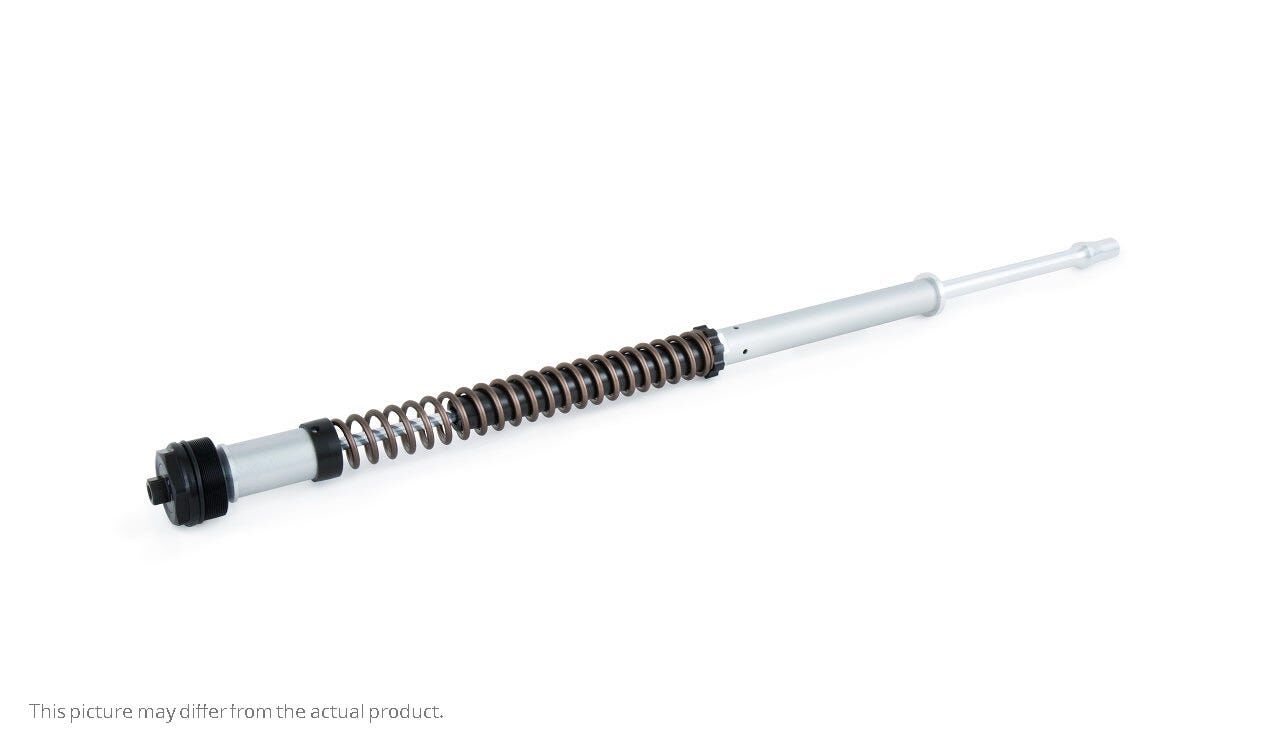

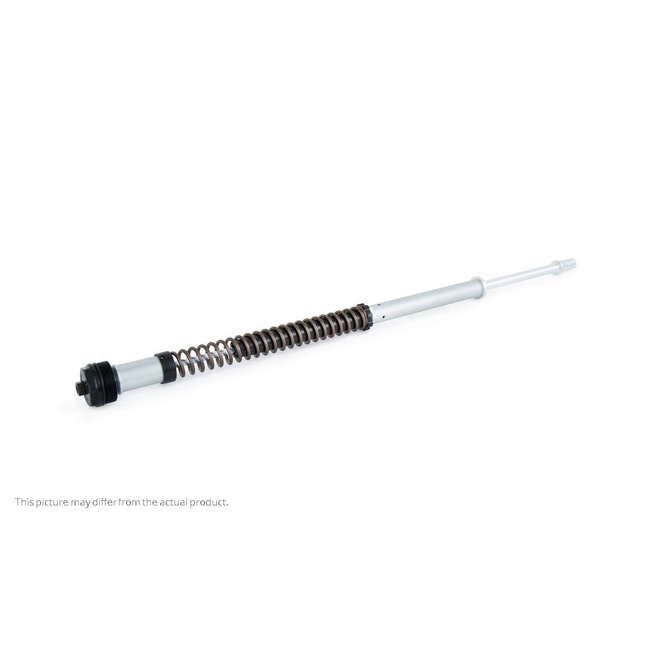

The Ohlins FKS206 NIX 22 Custom & Heritage Front is a front fork unit developed for Harley-Davidson Sportster models, aimed at improving control and feel while retaining the bike’s classic character. It combines modern damping technology with finishes suited to vintage and custom builds. Adjustment is provided to help tailor the fork response to rider preference and road conditions.

Ohlins | Made to race, perfected to ride

Part of the NIX 22 Custom & Heritage family, this front suspension solution is designed to deliver a taut, controlled ride without losing the authentic Sportster feel. It’s a considered upgrade for riders who want better suspension behaviour with a heritage look.

Who this fork is for

  • Harley-Davidson Sportster XL1200N Nightster riders chasing improved front-end control
  • Sportster XL1200X Forty-Eight owners building a custom or heritage-style bike
  • Sportster XL883N Iron riders wanting more stability and comfort on real roads

Shock design & features

  • NIX 22 Custom & Heritage front fork unit
  • Modern damping with timeless styling
  • High-quality finishes suited to classic and custom builds
  • Front mounting position
  • Fitted spring: sold separately

Tuning controls

  • Adjustable compression
  • Adjustable rebound
  • Adjustable preload

Before you install

  • Confirm spring selection, as springs are sold separately
  • Check model compatibility for your Sportster variant before fitting
SKU FKS206
Model # NIX 22
Barcode # FKS206
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
spring rate No Spring/s Supplied
Type Code NIX 22
Fork Length (mm) 752.0
Stroke Metal to Metal (mm) 90.0
Product Family NIX 22 Custom & Heritage
Notes Spring series 08428-xx, 08428-80 recommended
Fitted Spring: Sold seperately, see notes
Rec. Ohlins Oil 01309-
