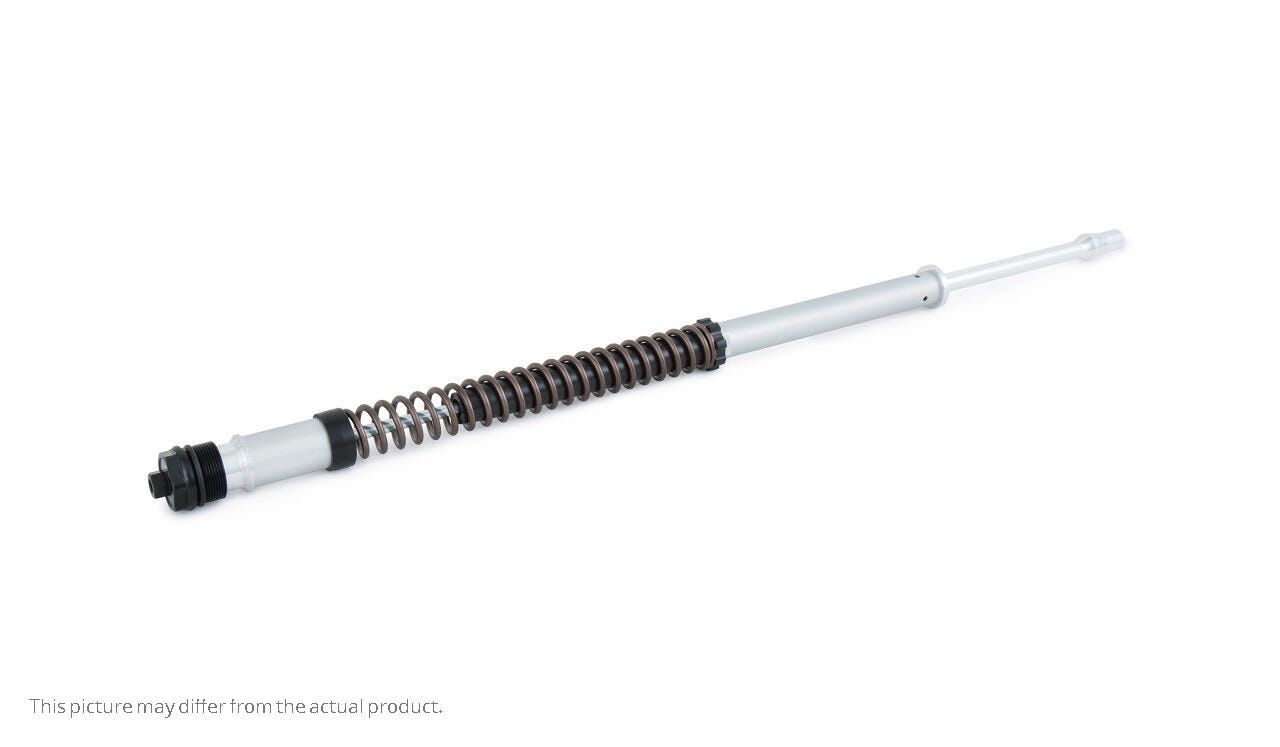

The Ohlins FKS226 NIX 22 Custom & Heritage Front suspension is engineered to deliver superior performance and control while maintaining the classic aesthetic of Harley-Davidson FL Touring motorcycles. This front suspension unit blends timeless styling with modern damping technology, providing riders with enhanced comfort, stability, and a taut, controlled ride. Adjustable compression, rebound, and preload settings allow for tailored suspension tuning to suit individual riding preferences and conditions. The high-quality finishes complement vintage and custom builds, making it an ideal upgrade for cruisers seeking both style and functionality.

Key Features

  • Modern damping system with adjustable compression, rebound, and preload
  • Preserves authentic ride feel while improving comfort and stability
  • High-quality finishes designed for classic and custom motorcycle aesthetics
  • Specifically designed for Harley-Davidson FL Touring models

Tech

  • Adjustable Rebound and Compression damping
  • Monotube Shock with External Hose mounted Reservoir
  • High Pressure Nitrogen Gas Charged
  • STX Single Tube design
  • 36mm Piston Diameter
  • Adjustable Preload w/ tool
  • Top Level Comfort, Rideability, and Performance
  • Hard Anodized - Precision CNC-Machined Components
  • Low-friction Shaft / Seal Head design
  • Fully Serviceable and Repairable
SKU FKS226
Model # NIX 22
Barcode # FKS226
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Unit Of Measure ea
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
spring rate No Spring/s Supplied
Type Code NIX 22
Fork Length (mm) 736.0
Stroke Metal to Metal (mm) 116.0
Product Family NIX 22 Custom & Heritage
Notes Rec.springs 08790-xx not included. Optional lowering kit (-25mm) 08866-04 Does not fit Road King, Road King CVO or Electra Glide Low. Does not fit 201
