eX-Change Pro PDS Electronic Shock Absorbers - Factory 20mm Lowered

2 Products Found
Tractive eX-CHANGE PRO Shock BMW F 900 XR
Tractive eX-CHANGE PRO Shock BMW F 900 XR

Tractive eX-CHANGE PRO Shock BMW F 900 XR

Rear | Factory lowered | EPA OEM
(SKU: 46BM20-P5145-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic OEM to be re-used
Seat Height Change (mm):   Factory Lowered
Seat Height Change (mm):   Factory Lowered -20
Shock Length Eye to Eye (mm):   383.0
Spring Rate Standard:   160 N/mm
Manufacturer Note 2:   Side and/or center stand might be too long
Spring Option -2:   140-160
Spring Option Maximum:   190-160
Spring Option +1:   170-160
Spring Option -1:   150-160
Spring Option +2:   180-160
Manufacturer Note 1:   Original preload adjuster to be re-used
Damping Feature:   PDSII anti-bottoming
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (0 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   14
Preload Adjustment:   Electro-hydraulic, Original to be re-used
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   160-160
Notes:   PDSII anti-bottoming
Stroke Metal to Metal (mm):   60.0
Type Code:   eX-CHANGE PRO

$2,543.20
Custom Order
Order Now
Tractive eX-CHANGE PRO Shock BMW F 900 R
Tractive eX-CHANGE PRO Shock BMW F 900 R

Tractive eX-CHANGE PRO Shock BMW F 900 R

Rear | Lowered -20mm | EPA OEM
(SKU: 46BM20-P5146-TR)
Position (Front or Rear):   Rear
Damping Adjustment Type:   Electronic & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster:   Electro-hydraulic OEM to be re-used
Seat Height Change (mm):   Lowered -20
Seat Height Change (mm):   Factory Lowered -20
Shock Length Eye to Eye (mm):   383.0
Spring Rate Standard:   170 N/mm
Manufacturer Note 2:   Side and/or center stand might be too long
Spring Option -2:   150-160
Spring Option Maximum:   200-160
Spring Option +1:   180-160
Spring Option -1:   160-160
Spring Option +2:   190-160
Manufacturer Note 1:   Original preload adjuster to be re-used
Damping Feature:   PDSII anti-bottoming
Damping System:   Separated oil/gas with reservoir
Rebound Adjuster Position:   Cable exit (180 deg)
Low-speed Compression Adjuster Position:   10
High-speed Compression Adjuster Position:   10
Spring Preload Setting:   14
Preload Adjustment:   Electro-hydraulic, Original to be re-used
Spring Type:   Linear, included
Piston Diameter (mm):   46
Suspension Unit Type:   Shock
Fitted Spring:   170-160
Notes:   PDSII anti-bottoming
Stroke Metal to Metal (mm):   50.0
Type Code:   eX-CHANGE PRO

$2,543.20
Custom Order
Order Now

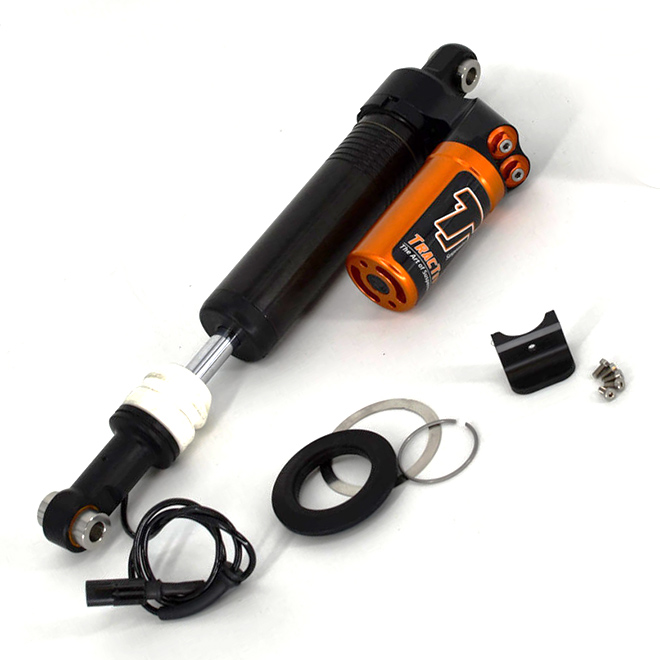

Teknik eX-CHANGE PRO PDS (OEM 20mm Low)

eX-CHANGE PRO PDS (OEM 20mm Low)

Same length as BMW's "factory lowered" 20mm shorter height suspension. These TracTive eX-Change Pro PDS units replace the OEM middle damper to give a factory 20mm lower ride while retaining electronic preload control and plug-and-play wiring.

Factory 20mm lowered ESA replacement with PDSII anti-bottoming

  • Piggyback cartridge with PDSII hydraulic anti-bottoming for extreme offroad performance
  • Manual high and low speed compression tuning while reusing the stock spring and electronic preload adjuster
  • Fully rebuildable, cold-forged 6082 aluminium shock body and external reservoir for easy servicing
  • Stronger, more reliable motors for wider computer tuning ranges and faster response than standard

Recommended Pairings

Consider matching this upgrade with Suspension Tools for correct fitment and servicing.

Shop eX-CHANGE PRO PDS (OEM 20mm Low)

Explore TracTive eX-Change Pro PDS options and view the ESA changeover process in our resources before you buy: replace your BMW ESA shock absorber, read our spring change guide or watch the ESA changeover video.
