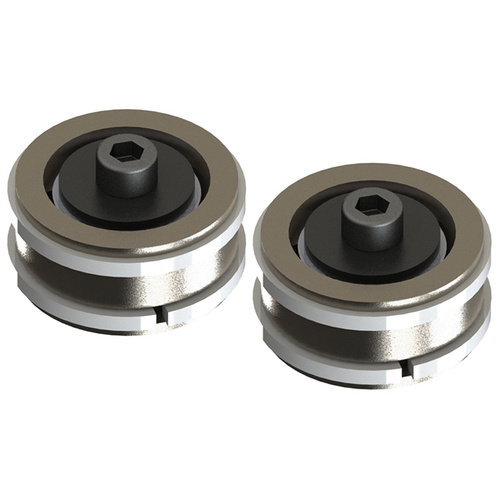

Our original Platinum Valve fork emulators have proven extremely successful, particularly in the DR650, where they have delivered consistent, controlled damping and long-term reliability across a wide range of riding styles and conditions in an easy to install at home package.

The Platinum Valve was a major step forward from our earlier V4R design, using a completely new internal architecture, improved sealing, and shim-controlled damping. These changes resulted in significantly better compliance, control and consistency, and the design has remained unchanged since.

This version uses exactly the same Platinum Valve internals, shim stacks and damping philosophy as the original DR650 Platinum valve. Both products are still in production and perform identically. The only difference is the external form factor, which allows this version to fit a broader range of motorcycles using 41 mm damper-rod forks, including the Kawasaki KLR650. Each version exists purely to suit different fork configurations.

What makes the Platinum Valve different

  • Designed for 2.5–3 wt fork oil

    • Light oil renders stock damper-rod orifice damping largely ineffective

    • No requirement to drill damper rods

    • Better suited to shim-controlled damping with reduced fluid mass

  • Controls compression damping

    • Provides controlled compression in a drop-in damper-rod system

    • Improves compliance without sacrificing support

  • Tuneable shim stack

    • Uses 6 mm shims

    • Supplied setting suits most applications

    • Bleed shims on both faces allow adjustment of low-speed damping

  • Improved low-speed sealing

    • Four outer sealing rings reduce bypass and improve damping consistency

  • Current construction

    • Machined from solid Brass

    • Nickel Plated for durability

Recommendations

For best results, fork springs should be matched to rider weight.

Installation instructions are included.

Note:
New OEM fork oil seals and dust wipers have higher initial friction, which may slightly affect performance until broken in.

SKU 25-050-12
Brand Teknik Motorsport
Shipping Weight 0.2000kg
Shipping Size 0.020 x 0.050 x 0.050m
